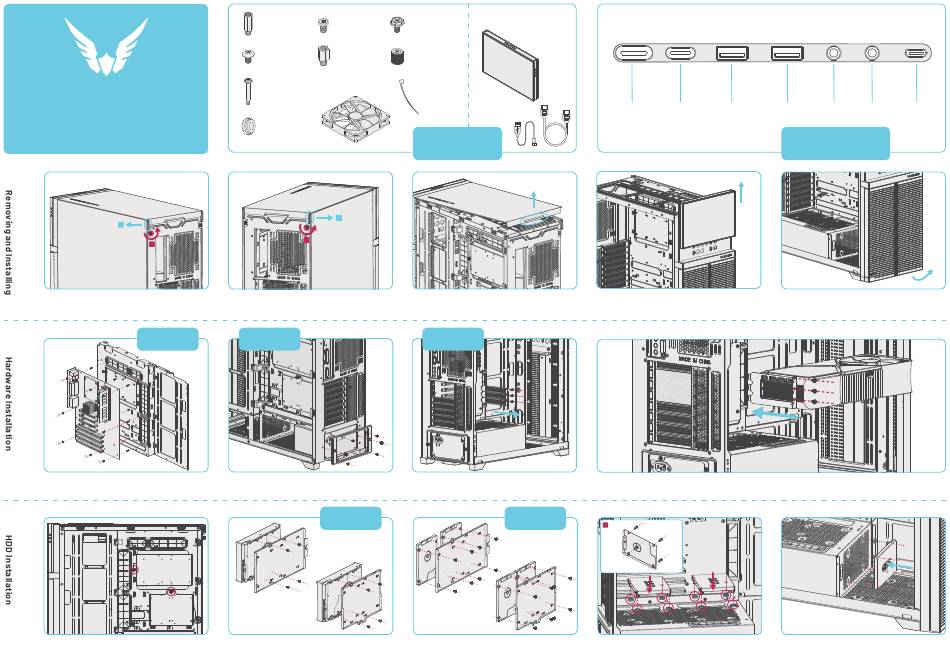

VALKYRIE VK02 Installation Manual

VK02
Installation Manual
01
2
1
Step 1: Unscrew the screws on the rear side of the chasis
Step 2: Pull the side panel outward
02
Motherboard
Step 1: Secure the motherboard with motherboard screws
03
Step 1: Unscrew the screws securing the hard disk bracket and
1/2
remove the bracket
17x HDD
2x GPU
Motherboard
Stand-off
Screw
16x SSD 16x SSD
Screw Stand-off
1x Valkyrie V14F Fan
8x Fan
screw
8x
Anti-vibration
rings
2
1
Step 3: Unscrew the screws on the rear side of the chasis
Step 4: Pull the side panel outward
Power Supply
Step 2: Secure the power supply using PSU screws
HDD Installation
Step 2: Use HDD screws to secure the disk and lock it back into
the case
With VK02 LCD Version
1x 10.1" touch screen
6x PSU Screw
1x MB
Stand-off
Removal Tool
5x Zipties
1x HDMI + USB A data
cable
List of Parts
Step 5: Lift the top panel upwards
Graphics Card
Step 3: Remove corresponding PCIE brackets
SSD Installation
Step 3: Use SSD screws to secure the disk and lock it back into
the case
Power Reset USB 3.0
Step 6: Pull up to remove the screen or panel
Step 4: Install and secure graphics card with screws
1
Step 4: To mount the SSD use SSD Stand-off and
anti-vibration rings.
NOTE: The disk cannot be installed if the fans are
installed in this position or you have vertical GPU.
USB 3.0 Sound Microphone Type-C
Introduction to IO
Step 7: Pull the front panel outward
OPRIONAL: Use SSD screws to secure the disk and lock it back
into the case. Use anti-vibration rings for secure placement.
