HEE WING RC F-01 Assembly Manual

Hide thumbs Also See for F-01:

Advertisement

Quick Links

Download this manual
Thanks for buying HEE WING F-01 Delta wing, this product is professional
radio control airplane, please read this guide carefully to understand correctly the
assembly procedure before assembling, wish you have a fun fly!

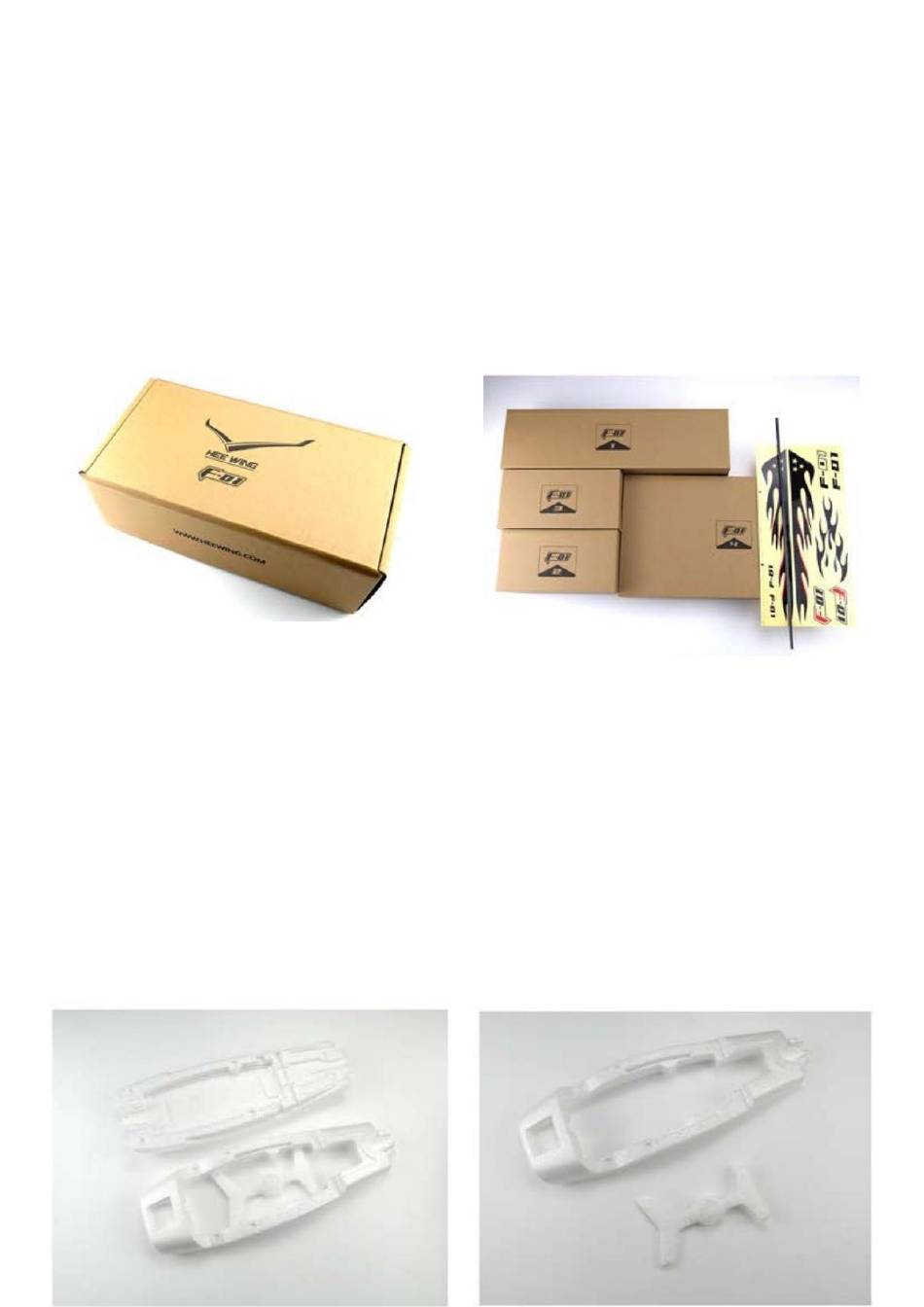

Open the package
Need to prepare:
Assembly tools: utility knife, ten-screwdriver, 2.0 hexagon wrench, foam glue.
Electronic equipment: 9G servo*2, 2205 motor, 40A ESC, 4-channel or above
remote controller with mixing control,
1. Open Box 1, you can find the upper fuselage and bottom fueslage, then, use
the knife to remove the sprue material.
F-01 KIT Assembly Guide
Fuselage Assembly

Advertisement

loading
Need help?

Need help?

Do you have a question about the F-01 and is the answer not in the manual?

Questions and answers

Related Manuals for HEE WING RC F-01

Summary of Contents for HEE WING RC F-01

  • Page 1 F-01 KIT Assembly Guide Thanks for buying HEE WING F-01 Delta wing, this product is professional radio control airplane, please read this guide carefully to understand correctly the assembly procedure before assembling, wish you have a fun fly! Open the package Need to prepare: Assembly tools: utility knife, ten-screwdriver, 2.0 hexagon wrench, foam glue.
  • Page 2 2. Open Box 2 and find the wooden plate, then apply foam glue to the wooden plate and bond to the bottom cover of fuselage. 3. Apply foam glue to the bottom fueslage and bond the upper and bottom fuselage. 4.
  • Page 3 5. Install the motor mount by applying a circle of glue around the edge of the mount, 1~2mm from the edge. Also apply some glue on the wider upper edge. Then, install the mount onto the rear of the plane. After the glue has dried, rethread the wires of the led light through.
  • Page 4 7. Adhere fuselage and the hatch cover. Note: please ensure that the corresponding South (S) and North (N) poles are aligned correctly. 8. Install the handle on the hatch cover.

  • Page 5: Wing Assembly

    Wing Assembly 1. Open Box 4, you can find the wing foam, then, use the knife to remove the sprue material.
  • Page 6 2. Install the servo. Power the servo and find the neutral point, then install servo arm. Apply glue to the mounting position. Secure the servo in place, organize the wires on the back of the wing. 3. Install the wing onto the fuselage. Insert the reinforcement carbon rod, then apply glue to the mounting position, insert the wing, Repeat for the Other Side.
  • Page 7 4. Install the front of wing-let. Open Box 3 and find the front of wing-let, apply glue to mounting position and appropriate pressure to let it bond firmly. Repeat for the Other Side. Note: the left and right wing-let are different. Install Sub-devices 1.
  • Page 8 3. Install battery mounting plate/ electronic mounting plate/ VTX mounting base( use 2X8 tapping screw) Above all electronic mounting positions are adjustable, you can adjust according to your demand, just need to attention the CG position. 4. Connecting lines.(Take FUTABA receiver as an example) 5.
  • Page 9 SETUP 1. SETUP the radio control model type to delta wing mode. (If using flight controller, model type set to normal fixed-wing aircraft mode) This setup is taking FUTABA as an example. Set Channel 1/3/6 to REV. When facing motor, it should clockwise rotation, if not, please change either 2 Based on your power requirements, of connector line.

  • Page 10: Product Display

    Product display Flight test Always respect the rules provided by your local remote control aircraft organization. Choose an appropriate flying site consisting of a large open space to ensure the safety of yourself,others and your model. Before operation, power up the aircraft then check that every movements is smooth and directions and functions are correct.
