HEE WING F-01Youth edition assembly manual
Welcome to choose our company's HEE WING F-01Youth edition delta wing plane， Please be patient to
read the assembly manual and follow the instructions to assemble.Wish you enjoy your flight!
Ⅰ

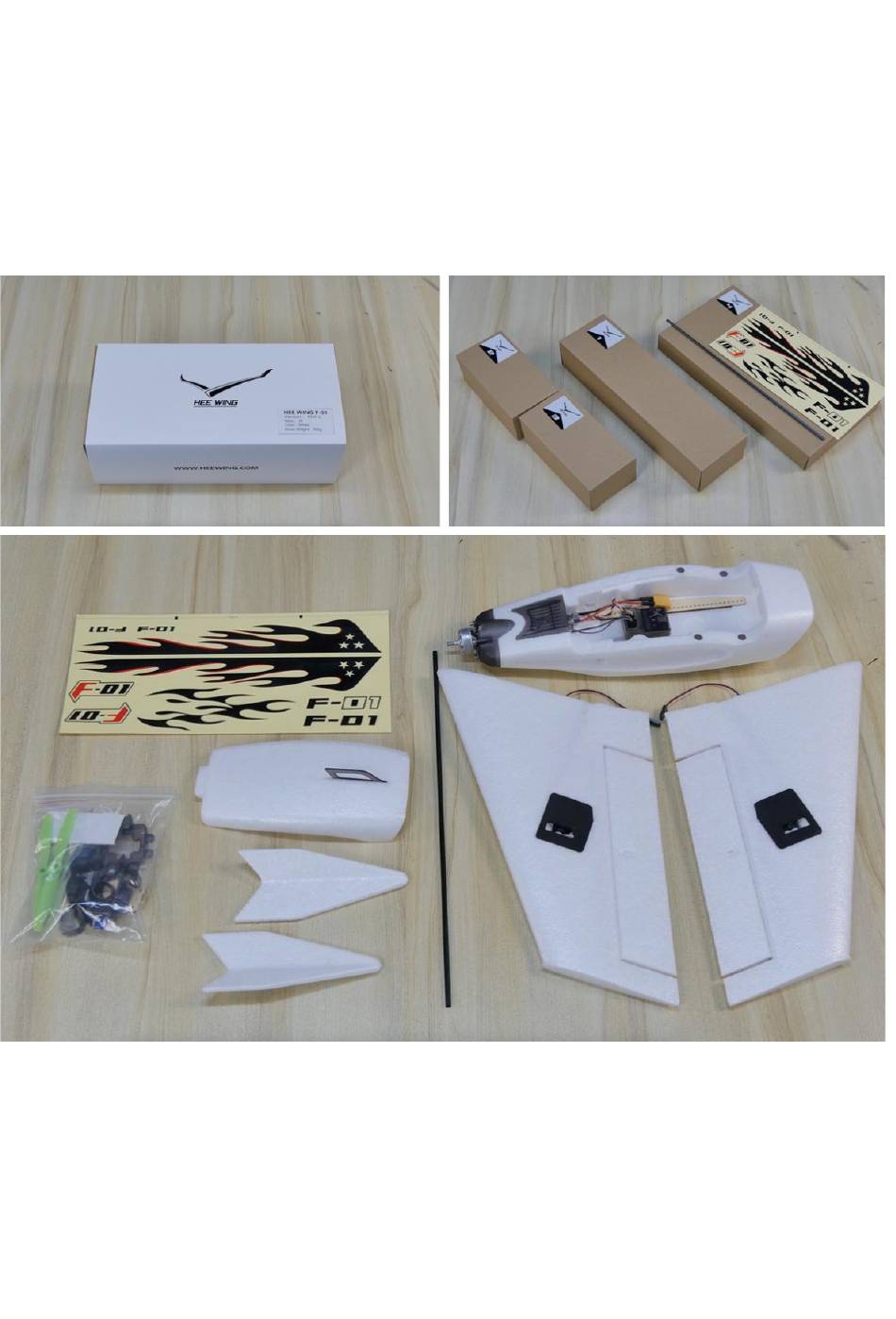

Unboxing，Check all spare
parts.（Need to prepare foam glue and phillips screwdriver separately）
Advertisement
Table of Contents
Related Manuals for HEE WING RC Youth Edition F-01
Summary of Contents for HEE WING RC Youth Edition F-01
- Page 1 HEE WING F-01Youth edition assembly manual Welcome to choose our company’s HEE WING F-01Youth edition delta wing plane， Please be patient to read the assembly manual and follow the instructions to assemble.Wish you enjoy your flight! Ⅰ Unboxing，Check all spare parts.（Need to prepare foam glue and phillips screwdriver separately）...
- Page 2 Ⅱ，Assemble and install 1、 Find out the wings ,rudder stock and control horn. Install rudder stock and control horn to the wings. 2、 Find out the winglets. Fully apply foam glue to the bonding surface.Adjust the bonding position and appropriate pressure to let it bond firmly.
- Page 3 4、 The bonding surface of the wing needs to be fully coated with foam glue.Adjust the bonding position and appropriate pressure to let it bond firmly. 5、 Connect the servo to RX-1.0 flight controller.Left servo plug into CH1 and right server plug into CH2.
- Page 4 6、 Find the center gravity of the plane.Install the battery fixing plate on the plane.（Fix with M2*8 self-tapping screws） Ⅲ．Install the receiver and test.The flight controller only supports S.bus receiver.（This manual takes FUTABA 14SG as an example） 1、Take out your remote，The remote control and receiver must be pre-binding，Set to normal fixed-wing aircraft mode. （Please refer to the remote control manual）Locate the remote control LNK/FUNCTION menu.Set the 5\6\8 channel as a three-stage switch.To control the throttle lock 、flight mode and flight sensitivity separately（Please refer to the last attachment description for the function method of 5, 6, and 8 channels）Power on the aircraft and check whether the...
- Page 5 Ⅳ．Install the propeller and stick the sticker.
- Page 6 Ⅴ．calibration: Horizontal attitude calibration:do horoscope movement in any mode(No limit inside or outside)Hold for more than five seconds to enter the calibration mode，Start to memorize the current attitude of the aircraft after the servo is reset.Then enter the routine self-check action.After the self-inspection is completed.The posture calibration is completed.
- Page 7 Auxiliary function description： Fifth channel:Throttle lock. Button switch :Press once to unlock, press again to lock. Two-position switch:High position lock, low position unlock; Three gear switch:High position lock, middle position unlock, low position unlock. In locked mode, the throttle cannot be operated.The gyroscope stops workingThe servo is fully restored to its neutral position.After unlocking, it will automatically enter takeoff assist mode.In this mode, the aircraft automatically maintains the aileron level attitude.The nose was raised 25°...
