Page 1
Robotic Pool Cleaner Dreame Z1 User Manual The illustrations in this manual are for reference only. Please refer to the actual product for accuracy.
Page 3
CONTENTS ������������������������������������������������������������������������������� P01~P24 �������������������������������������������������������������������������������� P15~P?? ��������������������������������������������������������������������������������� P??~P?? ��������������������������������������������������������������������������������� P??~P?? ��������������������������������������������������������������������������������� P??~P?? Original Instructions Table of Contents...
DECLARATION OF CONFORMITY Quilo Technology (Jiaxing) Co., Ltd. Room 199, No. 2176 Fanggong Road, Dongzha Street, Nanhu District, Jiaxing City, Zhejiang Province, P.R.China On behalf of Quilo Technology declare that the product Description: Robotic Pool Cleaner Type: PIXZ4111 Function: Pool cleaning Complies with the following Directives 2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU&(EU)2015/863,2014/53/EU Standards conform to,...
Original Instructions ������������������������������������������������������������������������� 1� Safety Instructions ���������������������������������������������������������������������� 2� Product Introduction ���������������������������������������������������������� 3� Preparations for First Time Use ���������������������������������������������������������������������������������� 4� Operations �������������������������������������������������������������� 5� Cleaning and Maintenance ����������������������������������������������������������� 6� Winter Storage and Transport ���������������������������������������������������������������������������� 7� Troubleshooting ������������������������������������������������������������������������������� 8� Specifications Table of Contents...
1� Safety Instructions 1�1 Safety Regulations • READ AND FOLLOW ALL INSTRUCTIONS. • SAVE THESE INSTRUCTIONS. • Remove the robotic pool cleaner from the pool before allowing people to enter the pool. • When examining the robotic pool cleaner, make sure the robotic pool cleaner is switched OFF. •...
Page 7
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 8
indicated in the instructions for use and care. k)Do not expose the appliance or battery to excessive temperatures. l)Be aware of the risk of terminals of the battery-operated appliance or battery being short circuited by metal objects. m)The button cell battery on the MCU must not be replaced by the consumer. 1�5 Correct Disposal of this Product This marking indicates that this product should not be disposed of with other household waste throughout the EU.
Page 9
1�6 Symbols and Decals Before charging, read the instructions. Class Ⅱ Class Ⅲ Direct current Alternating current IP classification Water Temp Max: 35 ° C/95 ° F Maximum working depth 2.5m 2.5m WARNING – It is not permitted to dispose of this product as normal household waste. Ensure that the product is recycled in accordance with local legal requirements.
2� Product Introduction 2�1 What’s in the Box User Manual and Robot Retrieval Hook Magnetic Charger Quick Start Guide Note: The illustrations provided in this document are for demonstration purposes only. 2�2 Structure Power Button Mode Button LED Indicator Magnetic Charging Port Water Outlet ×...
Page 11
2�3 Controls on the Robot Power for 3 • To turn the robot on or off, press and hold seconds. The LED indicator will blink blue to show that the action was successful. Mode • Press to choose a cleaning mode from: Standard, Floor only, Walls only, or Waterline only.
3� Preparations for First Time Use 3�1 Charging CAUTION: • Do not charge the robot in direct sunlight. • Before charging, ensure there is no residual water on the magnetic charging port. If so, wipe the magnetic charging port dry. Connect the magnetic charging connector to the robot's charging port and plug the charger into an electrical outlet.
Page 13
3�2 Install the Dreamehome App Scan the QR code below to download the Dreamehome app, or search for "Dreamehome" in the App Store or Google Play. After installation is complete, please create an account and log in. Dreamehome Before setting up the network, please check the following: •...
4. Select Device Sharing. Note: Dreame development team will continuously conduct OTA (Over-the-Air) updates and maintenance on the firmware and app. Please check for update notifications or enable the Auto-update function to keep the firmware and app up-to-date and enjoy more features.
Page 15
4�1 Select Cleaning Mode 4�1�1 Select via the App With the Dreamehome app, you can access tailored cleaning solutions, adjust parameters based on your specific needs, and view detailed information of the cleaning session. Note: App control is not available during a cleaning cycle due to lack of network connections. Navigate to the Device page.
Page 16
4�1�2 Select through the Mode Button The robot can be operated for pool cleaning without a network connection. Set up your cleaning task by pressing the buttons directly on the robot—no complicated steps required—before you submerge it. for 3 seconds to turn on the robot. Press and hold Select a cleaning mode by pressing on the robot.
Page 17
After the robot lands stably on the pool floor, it will perform sensor calibration for 5 seconds. The cleaning cycle will begin as soon as the robot completes the calibration. Notes: • If the initial calibration is unsuccessful, the robot will retry. •...
Page 18
4�4 Retrieve Important: • Please be careful when lifting the robot out of the pool, as it becomes heavier when filled with water. • After each use, please drain any remaining water from the robot and ensure it is completely dry. When the robot is waiting at the waterline:...
Page 19
Pull up the robot by the handle and hold it vertically to allow any remaining water to drain. 4�5 Data Synchronization Upon Surfacing When the robot is out of the water and resumes network connections, it will initiate data transmission with the app. This allows you to access detailed information about the cleaning session, including the duration, area covered and any issues encountered.
5� Cleaning and Maintenance 5�1 Clean the Filter Basket After each use, it is recommended to rinse the filter basket to prevent clogging. Push the filter basket button located at the Take out the filter basket by the front of the robot to open the filter basket handle.
Page 21
5�2 Clean the Water Outlets and Roller Brushes CAUTION: Please turn off the robot before cleaning to prevent injury. After each use, ensure that the water outlets and roller brushes are free from hair, dirt, and other debris. If necessary, rinse them with a hose. Wipe the magnetic charging port and sensors dry after cleaning.
6� Winter Storage and Transport Remove the robot from the pool and drain all water. Turn off the robot and disconnect it from the power source before storage. It is recommended to store the robot with a battery level of 80 –100%. Store the robot in a place with an ambient temperature between -20 ℃...
Page 23
Issues Causes Solutions 1. Sensors may be blocked by dirt or 1. Clean all sensors thoroughly. malfunctioning. 2. Ensure the roller brushes are free The robot is unable 2. The filter basket may be clogged from tangles and debris. to move or is moving with dirt or debris.
Brushless Pump Motor x2/Brushless Drive Motor x2 Maximum Suction Power 8000 GPH Run Time 3-5 hrs Charging Time 4-5 hrs Filter Basket Capacity 4.5 L Cleaning Mode Floor/Wall/Waterline/Standard * The above statistics are from Dreame Laboratory and may vary depending on the operating conditions.
Need help?
Do you have a question about the Z1 and is the answer not in the manual?
Questions and answers

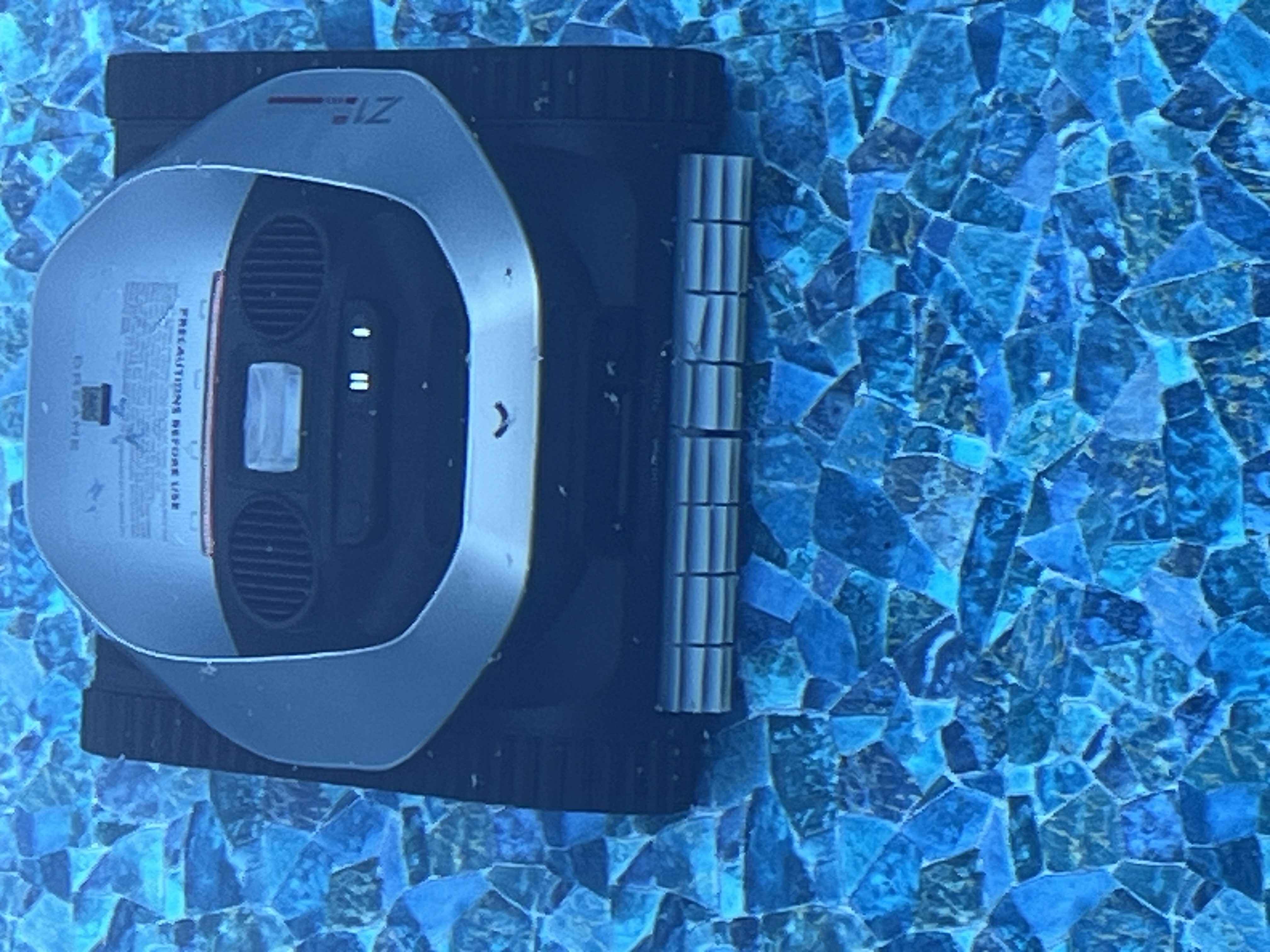

My z1 is brand new. When I set it to lean and put it in the pool it does not start to function. It has an error code red. What do I do?
