ACT DTAMS Operator's Manual

Modular binocular night vision device
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DTAMS
Modular Binocular Night Vision Device
OPERATOR MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTAMS and is the answer not in the manual?

Questions and answers

Related Manuals for ACT DTAMS

Summary of Contents for ACT DTAMS

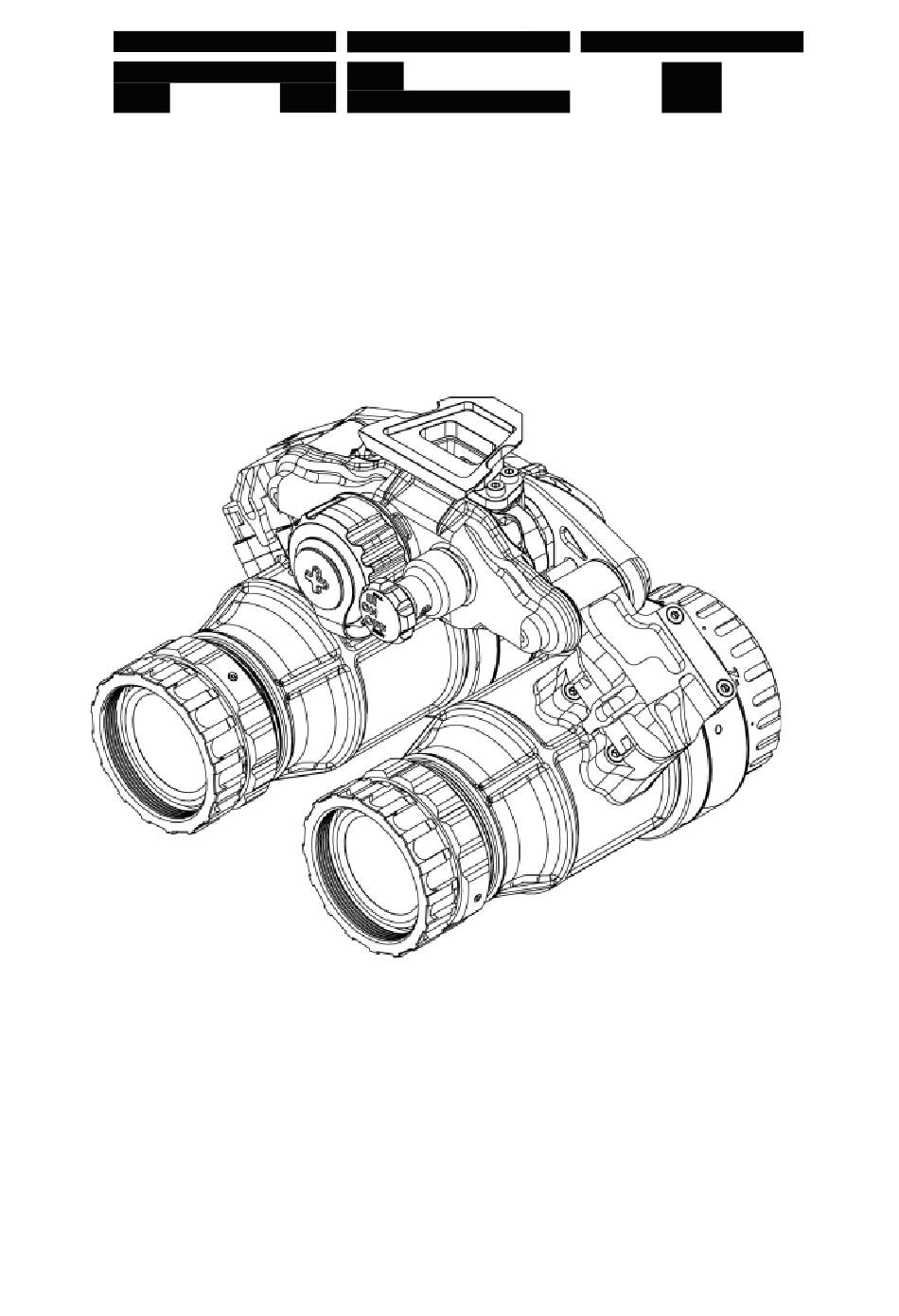

  • Page 1 DTAMS Modular Binocular Night Vision Device OPERATOR MANUAL...
  • Page 2 Inside Cover...
  • Page 3 OPERATOR MANUAL DTAMS Modular Binocular Night Vision Device ACTinBlack Europe S.à r.l. Rue de l’Industrie, +352-20 30 10 30 L-3895 Foetz, info@actinblack.com Grand Duchy of Luxembourg www.actinblack.com...
  • Page 4 Blank Page...

  • Page 5: Table Of Contents

    ETHER Eye Piece Diopter Adjustment CHAPTER 3: OPERATING INSTRUCTIONS Introduction Controls and Indicators Attaching / Detaching the Optical Modular Pod from STAMS or DTAMS Bridge Device Helmet Flip-Up Angles Operation Operations with IR Source Operation in Conditions of Blowing Dust or Sand...
  • Page 6 3.11 Preparation for Storage ACTinBlack Europe S.à r.l. Rev 1.0, April 2024...

  • Page 7: Table Of Contents

    TABLE of CONTENTS (CONT.) CHAPTER 4: MAINTENANCE INSTRUCTIONS Introduction Deactivation Battery Removal Cleaning the DTAMS Cleaning the Optics Checking for Damage and Corrosion Neck Cord Arm Tension dsds CHAPTER 5: TROUBLESHOOTING Troubleshooting Procedures APPENDIX A: SPARE AND REPAIR PARTS LIST...

  • Page 8: List Of Illustrations

    LIST OF ILLUSTRATIONS Product Illustration IPD Attachment IPD Attachment Screws and Shims IPD Function Controls and Indicators On Position Off Position Safety Position Tension Adjustment ACTinBlack Europe S.à r.l. Rev 1.0, April 2024 viii...

  • Page 9: List Of Tables

    LIST OF TABLES Standard Kit Parts List System Performance and Data Controls and Indicators Troubleshooting ACTinBlack Europe S.à r.l. Rev 1.0, April 2024...

  • Page 10: Chapter 1: General Information

    GENERAL INFORMATION Introduction: This manual provides operation and field level maintenance instructions for the DTAMS. It also provides specifications and data on the performance of the Binocular. To ensure the safety of the operator and the correct operation of the Binocular it is recommended that this manual is read carefully in its entirety before any deployment or field application.
  • Page 11 (when pivoted outside the field of view, the monocular will individually turn off.) When the DTAMS is mounted to a helmet or head mount, the DTAMS may be flipped up and temporarily stowed, the DTAMS will automatically go into Standby Mode turning off the monoculars.

  • Page 12: Standard Kit Parts List

    Standard Kit Parts List: The standard DTAMS kit comes with the items listed in the following table. Item Description DTAMS Binocular Bridge STAMS Monocular Pod Optical Modular Pod Demist Shield Sacrificial Lens Bikini Covers Day Caps Padded MOLLE Pouch Manual Download Card...

  • Page 13: System Performance And Data

    System Performance and Data: The chart below lists the technical specifications and data of the DTAMS system. The data contained herein is subject to change without notice. ITEM LIMITS Electrical Data Power Source Battery (3.0V DC) Battery Requirements 1x CR123A...
  • Page 14 Objective Lens F/1.2 25mm (PVS14) Resolution up to 1.3 cy/mR with 64 lp/mm Environmental Data Operating Temperature -30°C to 50°C Storage Temperature -50°C to 70°C Illumination Required Overcast starlight to moonlight Immersion 20 meter for 120 minutes Table 1-2 System Performance and Data, (cont.) ACTinBlack Europe S.à...
  • Page 15 Figure 1-1 Product Illustration ACTinBlack Europe S.à r.l. Rev 1.0, April 2024...

  • Page 16: Chapter 2: Preparation For Use

    WARNING Do not heat, puncture, disassemble, short circuit, incinerate, attempt to recharge or otherwise tamper with the batteries. Turn OFF the DTAMS if the battery compartment becomes unduly hot. If possible, wait until the batteries have cooled before removing them.

  • Page 17: Battery Installation

    Battery Installation: Install one CR123A battery as follows. Remove the battery cap by turning it counter- clockwise. Check to ensure the O-ring is present. If not, replace it. Observe polarity as indicated on the battery cap. Insert battery into the battery compartment, Minus (-) end first.

  • Page 18: Eyecup Installation

    Eyecup Installation: Perform the following procedure to install eyecup onto the Binocular. Carefully press the eyecup over the end of the eye cup Rotate the eyecup into proper viewing retainer ring. position. Adjust for best fit. The eyecup must seal around your eye and prevent the green glow from escaping.

  • Page 19: Sacrificial Window Installation

    Sacrificial Window Installation: Perform the following procedure to install the sacrificial window onto the objective lens assembly. CAUTION If adverse operating conditions (blowing dust or sand) are expected to exist, attach the sacrificial window to protect the objective lens from scratches or other damage.
  • Page 20 If LEDs flash on the left side, automatic flip up shut off is deactivated If LEDs flash in the right side, automatic flip up shut off is activated Tilt the device to the side that corresponds to the mode you want to activate in order to switch setting.

  • Page 21: Ipd Locking System Installation (Optional)

    IPD Locking System Installation Perform the following procedure to install the IPD Locking System onto DTAMS housing. 1. Place the IPD Locking System on the back of the unit. Figure 2-1 IPD Attachment 2. Place the shims individually in the space behind the backplate and secure with supplied screws.

  • Page 22: Ether Eye Piece Diopter Adjustment

    3. Use dials to adjust and set desired interpupillary distance for the system. Figure 2-3 IPD Function ETHER Eye Piece Diopter Adjustment The Ether eye piece is part of the LWT40D optics package and differs from conventional PVS14/ANVIS style eye pieces. Eye Piece Housing Diopter Adjustment Dial Diopter Lockring...
  • Page 23 The diopter setting can be locked using the Diopter Lockring to avoid accidental adjustment during use. To unlock turn the Diopter Lockring clockwise. To lock turn the Diopter Lockring counter clockwise until firmly set against the Diopter Adjustment Dial. The diopter is adjusted by turning the Diopter Adjustment Dial either counter clockwise for adjustment towards + diopter or clockwise –...

  • Page 24: Chapter 3: Operating Instructions

    Attaching / Detaching the Optical Modular Pod from STAMS or DTAMS Bridge Lift up the locking mechanism and slide the Optical Modular Pod out to the rear side from the DTAMS/STAMS module. To attach the pod to a DTAMS/STAMS module, lift the locking mechanism and slide the Modular Pod in from the rear side.

  • Page 25: Controls And Indicators

    Controls and Indicators: The DTAMS is designed to adjust for different users and corrects for most differences in eyesight. The controls and indicators for the DTAMS are shown in Figure 3-1 and are described in Table 3-1. CAUTION The DTAMS requires some ambient (moonlight, starlight, or artificial light, etc.) to operate.
  • Page 26 The DTAMS is less effective through rain, fog, sleet, snow, smoke, and other reflective material. ACTinBlack Europe S.à r.l. Rev 1.0, April 2024...

  • Page 27: Controls And Indicators

    Figure 3-1 Controls and Indicators ACTinBlack Europe S.à r.l. Rev 1.0, April 2024...
  • Page 28 Control and Functions Indicators Power Switch Controls Binocular and IR source, ON or OFF. OFF System OFF. ON activates the Binocular. IR/PULL Pull and turn the knob clockwise from the ON position to continuously activate the IR source. CAUTION Do not use excessive force to place the power switch into the momentary IR position Low Battery...
  • Page 29 IR Source On A steady red light indicates that the IR source is Indicator ON. It is visible through the eyepiece just outside the intensified field-of-view. Objective Focus Focuses objective lens. Adjusts for sharpest image of viewed object. Focuses eyepiece lens to user’s eye. Adjust for Dioptre Adjustment sharpest image of intensifier screen.

  • Page 30: Device Helmet Flip-Up Angles

    Device Helmet Flip-Up Angles: NOTE The binocular has an independent automatic on-of function in the case of the system being flipped up on a helmet mount. Reactivation / ON position Device will automatically turn on with a 1.5 sec delay in the straight forward position.

  • Page 31: Operation

    Safety OFF position Device will turn off after 30 sec without movement if device is placed is placed in described position. Figure 3-4 Table Position Operation: CAUTION Operate the binocular only under darkened conditions or use the objective lens cap to cover the objective lens for daylight conditions.
  • Page 32 NOTE The sharpest image will be observed only when the objective lens and eyepiece lens are properly focused. NOTE Both indicator LEDs, red and orange, blink once when turned on as a self-test. Rotate the dioptre adjustment for the clearest view of the image intensifier screen.

  • Page 33: Operations With Ir Source

    Operations with IR Source: WARNING The IR source is a light that is mostly invisible to the unaided eye for use during conditions of extreme darkness. however, the light from the IR source can be detected by the enemy using night vision devices. In close proximity of below 5m an enemy might spot a faint red glow on the IR illuminator.

  • Page 34: Operation In Conditions Of Blowing Dust Or Sand

    Keep the carrying case closed unless removing or replacing items. Ensure that all dust and sand is removed from the DTAMS and carrying case after operation. Operation in Rainy or Humid conditions: CAUTION Operation in rainy or humid conditions can...

  • Page 35: Operation In Salt Water Areas

    Install objective lens cap or utilize bikini covers. NOTE Prior to placing DTAMS into carrying case, ensure DTAMS and case are free of dirt, dust, and moisture. Place the Binocular, accessories and cleaning supplies back into their storage/carrying case.

  • Page 36: Chapter 4: Maintenance Instructions

    It is recommended that regular and simple maintenance be performed for optimal system performance. It is required that a DTAMS is being maintained by an ACTinBlack certified technician at latest every six (6) months to ensure full compliance with all parameters.

  • Page 37: Cleaning The Optics

    Dry with a clean unused lens tissue. Checking for Damage and corrosion: As a general guideline, conduct an inspection of the DTAMS, accessories, and the case after every use. Look for heavy wear and cracks in rubber or plastic. Inspect for moisture or corrosion in electronic housings and in the battery compartment.

  • Page 38: Neck Cord

    DTAMS, accessories, and the case after every use. Neck Cord: If the neck cord becomes frayed or broken, cut it off or untie the knot at the attachment points and pull free. To install a new cord. Thread the ends through the holes next to the dovetail back to front and tie a knot.

  • Page 39: Tension Adjustment

    Figure 4-1 Tension Adjustment Blank Page ACTinBlack Europe S.à r.l. Rev 1.0, April 2024...

  • Page 40: Chapter 5: Troubleshooting

    CHAPTER 5: TROUBLESHOOTING Troubleshooting Procedures: Table 5-1 lists common malfunctions that may occur with the equipment. Perform the tests, inspections and corrective actions in the order they appear in the table. This table cannot list all the malfunctions that may occur, all the tests and inspections needed to find the fault, or all the corrective actions needed to correct the fault.
  • Page 41 IR Illuminator In a dark location If IR source still fails to not operative with system turned activate, refer to higher on, activate IR source. level of maintenance. Visually check IR source operation; scene should brighten. Poor image Check objective lens Refocus.

  • Page 42: Appendix A: Repair & Spares

    This section provides information needed to identify, contact and order spare and/or repair parts for the DTAMS. Contact Information: To order spare or repair parts for the DTAMS or any of your night vision products contact: ACTinBlack Europe S.à r.l. Rue de l’Industrie,...
  • Page 43 Blank Page ACTinBlack Europe S.à r.l. Rev 1.0, April 2024...

  • Page 44: Appendix B: Warranty Information

    APPENDIX B: WARRANTY INFORMATION Defects after Delivery and Warranty Subject to the following provisions, ACTinBlack warrants to Purchaser that the goods manufactured by ACTinBlack shall be free from defects in material and workmanship. ACTinBlack’s obligations, set forth below, shall apply only to failures to meet the foregoing warranties for parts only occurring within twelve (12) months from the date of shipment, if not otherwise agreed between the parties.
  • Page 45 ACTinBlack Europe S.à r.l. Rev 1.0, April 2024...
  • Page 46 Return Material Authorization Number (RMA#): Warranty and non-warranty items returned to ACTinBlack for repair or replacement require a RMA#. Email info@ACTinBlack.com, with a serial number and detailed information to obtain a RMA#. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, EITHER EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR...
  • Page 47 Blank Page ACTinBlack Europe S.à r.l. Rev 1.0, April 2024...

  • Page 48: Declaration Of Conformity

    12 Rue de l’Industrie, L-3895 Foetz, Grand Duchy of Luxembourg Declare under our sole responsibility that our product: Product name: DTAMS ® Trade name: ACTinBlack Type of model: to which this declaration relates is in conformity with the appropriate standards:...

  • Page 49: Certificate Of Conformity

    We, ACTinBlack Europe S.àr.l 12 Rue de l’Industrie, L-3895 Foetz, Grand Duchy of Luxembourg Declare under our sole responsibility that our product: Product name: DTAMS ® Trade name: ACTinBlack Fulfils the essential requirements of: MIL-STD-810G The following standards were applied: MIL-STD_810G: 501.5: High Temperature...
  • Page 50 ACTinBlack Europe S.à r.l. 12 Rue de l’Industrie, L-3895 Foetz, Grand Duchy of Luxembourg www.actinblack.com ACTinBlack Europe S.à r.l. Rev 1.0, April 2024...
