ACT DTNVS Operator's Manual

Binocular night vision device
Hide thumbs
Table of Contents

Advertisement

Quick Links

DTNVS
Binocular Night Vision Device
OPERATOR MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTNVS and is the answer not in the manual?

Questions and answers

Related Manuals for ACT DTNVS

Summary of Contents for ACT DTNVS

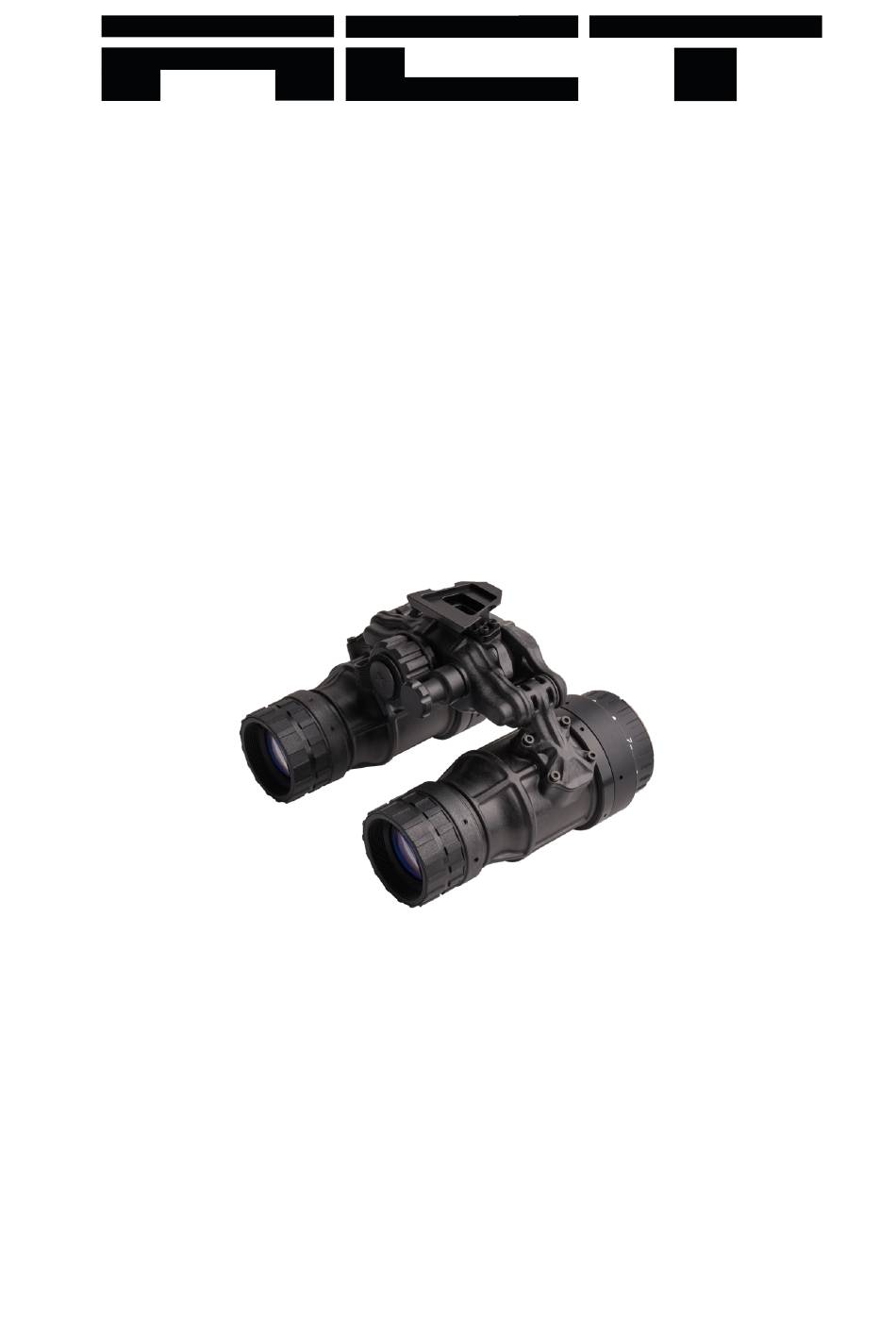

  • Page 1 DTNVS Binocular Night Vision Device OPERATOR MANUAL...
  • Page 2 Inside Cover...
  • Page 3 OPERATOR MANUAL DTNVS Binocular Night Vision Device ACTinBlack Europe S.à r.l. Rue de l’Industrie, +352-20 30 10 30 L-3895 Foetz, info@actinblack.com Grand Duchy of Luxembourg www.actinblack.com...
  • Page 4 Blank Page...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Table of Contents List of Illustrations List of Tables viii CHAPTER 1: GENERAL INFORMATION Introduction Equipment Description Standard Kit Parts List System Performance and Data CHAPTER 2: PREPARATION FOR USE Introduction Battery Precautions Battery Installation Eyecup Installation Demist Shield Installation Sacrificial Window Installation Device Helmet Flip-Up Deactivation Sequence...

  • Page 6: Table Of Contents

    TABLE of CONTENTS (CONT.) CHAPTER 4: MAINTENANCE INSTRUCTIONS Introduction Deactivation Battery Removal Cleaning the DTNVS Cleaning the Optics Checking for Damage and Corrosion Neck Cord Arm Tension dsds CHAPTER 5: TROUBLESHOOTING Troubleshooting Procedures APPENDIX A: SPARE AND REPAIR PARTS LIST...

  • Page 7: List Of Illustrations

    LIST OF ILLUSTRATIONS Product Illustration Controls and Indicators ACTinBlack Europe S.à r.l. Rev 1.0, May 2020...

  • Page 8: List Of Tables

    LIST OF TABLES Standard Kit Parts List System Performance and Data Controls and Indicators Troubleshooting viii ACTinBlack Europe S.à r.l. Rev 1.0, May 2020...

  • Page 9: Chapter 1: General Information

    GENERAL INFORMATION Introduction: This manual provides operation and field level maintenance instructions for the DTNVS. It also provides specifications and data on the performance of the Binocular. To ensure the safety of the operator and the correct operation of the Binocular it is recommended that this manual is read carefully in its entirety before any deployment or field application.
  • Page 10 (when pivoted outside the field of view, the monocular will individually turn off.) When the DTNVS is mounted to a helmet or head mount, the DTNVS may be flipped up and temporarily stowed, the DTNVS will automatically go into Standby Mode turning off the monoculars.

  • Page 11: Standard Kit Parts List

    Standard Kit Parts List: The standard DTNVS kit comes with the items listed in the following table. Item Description DTNVS Binocular Assembly Demist Shield Sacrificial Lens Bikini Covers Day Caps Padded MOLLE Pouch Manual Download Card Hard Carrying Case Table 1-1 Standard Kit Parts List...

  • Page 12: System Performance And Data

    System Performance and Data: The chart below lists the technical specifications and data of the DTNVS system. The data contained herein is subject to change without notice. ITEM LIMITS Electrical Data Power Source Battery (3.0V DC) Battery Requirements 1x CR123A...
  • Page 13 Objective Lens F/1.2 25mm (PVS14) Resolution up to 1.3 cy/mR with 64 lp/mm Environmental Data Operating Temperature -30°C to 50°C Storage Temperature -50°C to 70°C Illumination Required Overcast starlight to moonlight Immersion 20 meter for 120 minutes Table 1-2 System Performance and Data, (cont.) ACTinBlack Europe S.à...
  • Page 14 Figure 1-1 Product Illustration ACTinBlack Europe S.à r.l. Rev 1.0, May 2020...

  • Page 15: Chapter 2: Preparation For Use

    WARNING Do not heat, puncture, disassemble, short circuit, incinerate, attempt to recharge or otherwise tamper with the batteries. Turn OFF the DTNVS if the battery compartment becomes unduly hot. If possible, wait until the batteries have cooled before removing them.

  • Page 16: Battery Installation

    Battery Installation: Install one CR123A battery as follows. Remove the battery cap by turning it counter- clockwise. Check to ensure the O-ring is present. If not, replace it. Observe polarity as indicated on the battery cap. Insert battery into the battery compartment, Minus (-) end first.

  • Page 17: Eyecup Installation

    Eyecup Installation: Perform the following procedure to install eyecup onto the Binocular. Carefully press the eyecup over the end of the eye cup Rotate the eyecup into proper viewing retainer ring. position. Adjust for best fit. The eyecup must seal around your eye and prevent the green glow from escaping.

  • Page 18: Sacrificial Window Installation

    Sacrificial Window Installation: Perform the following procedure to install the sacrificial window onto the objective lens assembly. CAUTION If adverse operating conditions (blowing dust or sand) are expected to exist, attach the sacrificial window to protect the objective lens from scratches or other damage.
  • Page 19 If LEDs flash on the left side, automatic flip up shut off is deactivated If LEDs flash in the right side, automatic flip up shut off is deactivated Tilt the device to the side that corresponds to the mode you want to activate in order to switch setting.

  • Page 20: Ipd Locking System Installation

    IPD Locking System Installation Perform the following procedure to install the IPD Locking System onto DTNVS housing. 1. Place the IPD Locking System on the back of the unit. 2. Place the shims individually in the space behind the backplate and secure with supplied screws.

  • Page 21: Chapter 3: Operating Instructions

    Controls and Indicators: The DTNVS is designed to adjust for different users and corrects for most differences in eyesight. The controls and indicators for the DTNVS are shown in Figure 3-1 and are described in Table 3-1. CAUTION The DTNVS requires some ambient (moonlight, starlight, or artificial light, etc.) to operate.
  • Page 22 Figure 3-1 Controls and Indicators ACTinBlack Europe S.à r.l. Rev 1.0, May 2020...
  • Page 23 Functions Control and Indicators Controls Binocular and IR source, ON or OFF. Power Switch OFF System OFF. ON activates the Binocular. IR/PULL Pull and turn the knob clockwise from the ON position to continuously activate the IR source. CAUTION Do not use excessive force to place the power switch into the momentary IR position Low Battery...
  • Page 24 IR Source On A steady red light indicates that the IR source is Indicator ON. It is visible through the eyepiece just outside the intensified field-of-view. Objective Focus Focuses objective lens. Adjusts for sharpest image of viewed object. Dioptre Focuses eyepiece lens to user’s eye. Adjust for Adjustment sharpest image of intensifier screen.

  • Page 25: Operation

    Operation: CAUTION Operate the binocular only under darkened conditions or use the objective lens cap to cover the objective lens for daylight conditions. CAUTION Cover the objective and ocular lenses by using bikini covers when device not in use. NOTE When using the binocular without a mounting device, make sure to place a neck cord around your neck.

  • Page 26: Operations With Ir Source

    Operations with IR Source: WARNING The IR source is a light that is mostly invisible to the unaided eye for use during conditions of extreme darkness. however, the light from the IR source can be detected by the enemy using night vision devices. In close proximity of below 5m an enemy might spot a faint red glow on the IR illuminator.

  • Page 27: Operation In Conditions Of Blowing Dust Or Sand

    Operation in Rainy or Humid conditions: CAUTION Operation in rainy or humid conditions can cause corrosion and deterioration of the DTNVS unless the precautions given below are observed Install the demist shield as instructed in this manual. Keep the carrying case closed unless removing or replacing items.

  • Page 28: Operation In Salt Water Areas

    Install objective lens cap or utilize bikini covers. NOTE Prior to placing DTNVS into carrying case, ensure DTNVS and case are free of dirt, dust, and moisture. Place the Binocular, accessories and cleaning supplies back into their storage/carrying case.
  • Page 29 ACTinBlack Europe S.à r.l. Rev 1.0, May 2020...

  • Page 30: Chapter 4: Maintenance Instructions

    CHAPTER 4: MAINTENANCE INSTRUCTIONS Introduction: The DTNVS is designed to be used in diverse environments and rugged conditions. It is recommended that regular and simple maintenance be performed for optimal system performance. CAUTION The binocular is a precision electro-optical instrument and must be handled carefully.

  • Page 31: Cleaning The Optics

    Dry with a clean unused lens tissue. Checking for Damage and corrosion: As a general guideline, conduct an inspection of the DTNVS, accessories, and the case after every use. Look for heavy wear and cracks in rubber or plastic. Inspect for moisture or corrosion in electronic housings and in the battery compartment.

  • Page 32: Neck Cord

    Neck Cord: If the neck cord becomes frayed or broken, cut it off or untie the knot at the attachment points and pull free. To install a new cord. Thread the ends through the holes next to the dovetail back to front and tie a knot.
  • Page 33 Blank Page ACTinBlack Europe S.à r.l. Rev 1.0, May 2020...

  • Page 34: Chapter 5: Troubleshooting

    ON. activate. Check for defective, Replace battery or install missing or improperly correctly. installed battery. If DTNVS still fails to activate, refer to higher level of maintenance. Table 5-1 Troubleshooting ACTinBlack Europe S.à r.l. Rev 1.0, May 2020...
  • Page 35 IR source In a dark location If IR source still fails to fails to with system turned activate, refer to higher activate. on, activate IR source. level of maintenance. Visually check IR source operation; scene should brighten. IR source Visual. Refer to higher level of indicator maintenance.

  • Page 36: Introduction

    This section provides information needed to identify, contact and order spare and/or repair parts for the DTNVS. Contact Information: To order spare or repair parts for the DTNVS or any of your night vision products contact: ACTinBlack Europe S.à r.l. Rue de l’Industrie,...
  • Page 37 Blank Page ACTinBlack Europe S.à r.l. Rev 1.0, May 2020...

  • Page 38: Appendix B: Warranty Information

    APPENDIX B: WARRANTY INFORMATION Defects after Delivery and Warranty Subject to the following provisions, ACTinBlack warrants to Purchaser that the goods manufactured by ACTinBlack shall be free from defects in material and workmanship. ACTinBlack’s obligations, set forth below, shall apply only to failures to meet the foregoing warranties for parts only occurring within twelve (12) months from the date of shipment, if not otherwise agreed between the parties.
  • Page 39 Return Material Authorization Number (RMA#): Warranty and non-warranty items returned to ACTinBlack for repair or replacement require a RMA#. Email info@ACTinBlack.com, with a serial number and detailed information to obtain a RMA#. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, EITHER EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR...
  • Page 40 Blank Page ACTinBlack Europe S.à r.l. Rev 1.0, May 2020...
  • Page 41 12 Rue de l’Industrie, L-3895 Foetz, Grand Duchy of Luxembourg Declare under our sole responsibility that our product: Product name: DTNVS ® Trade name: ACTinBlack Type of model: to which this declaration relates is in conformity with the appropriate standards:...
  • Page 42 Certificate of Conformity We, ACTinBlack Europe S.àr.l 12 Rue de l’Industrie, L-3895 Foetz, Grand Duchy of Luxembourg Declare under our sole responsibility that our product: Product name: THE14 ® Trade name: ACTinBlack Fulfils the essential requirements of: MIL-STD-810G The following standards were applied: MIL-STD_810G: 501.5: High Temperature MIL-STD_810G: 502.5: Low Temperature MIL-STD_810G: 507.5: Humidity...
  • Page 43 ACTinBlack Europe S.à r.l. 12 Rue de l’Industrie, L-3895 Foetz, Grand Duchy of Luxembourg www.actinblack.com xxxv ACTinBlack Europe S.à r.l. Rev 1.0, May 2020...
