MODUL socket instruction manual
Schuko + KS
Schuko + KS + cover
(VM10)
Italian P17/11 + KS
Schuko/ITA P17/11 +
(VM30)
British BS546 + KS
British BS1363 + KS
(VM51)
Multi-standard
(VM55)
EURO + KS
(VM11)
(VM20)
Schuko/ITA P30 + KS
KS
(VM31)
(VM32)
Set for switches IP44
2M
(VM52)
(CM23)
French + KS
French + KS + cover
(VM40)
Italian P11 + KS
EURO/American+ KS
(VM33)
Mounting frame
Cover plate
(NMxx)
(OLxx, OSxx, OPxx,
(VM41)
(VM21)
OGxxxxM)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TEM VM10
Summary of Contents for TEM VM10

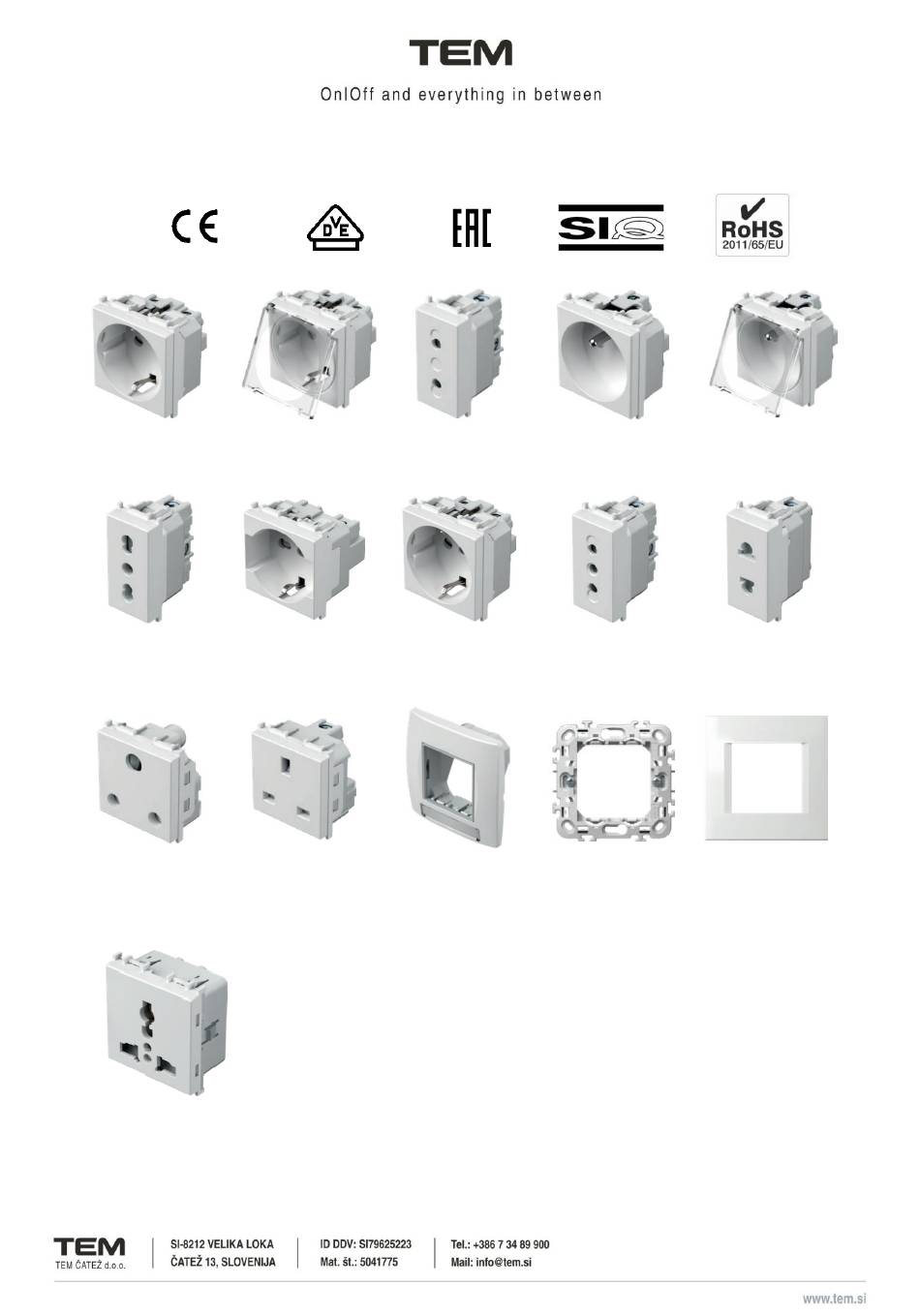

- Page 1 MODUL socket instruction manual Schuko + KS Schuko + KS + cover EURO + KS French + KS French + KS + cover (VM10) (VM11) (VM20) (VM40) (VM41) Italian P17/11 + KS Schuko/ITA P17/11 + Schuko/ITA P30 + KS Italian P11 + KS...
- Page 2 User instructions Before installation, read the instructions carefully and check that the product is not damaged. This avoids the possibility of a fault that could cause personal injury or damage to the electrical wiring. The instructions are intended for all users; show this document to a qualified person before installing the switches. Safety instructions Please read the instructions carefully and follow the safety instructions.
- Page 3 Do not use aggressive cleaning agents or chemical solutions, as this may destroy the plastic parts. • Never direct a water jet at the product. • Use a dry cloth to clean visible parts. Wiring diagrams VM10, VM11, VM31, VM32, VM40, VM20, VM21 VM30, VM33 VM41 VM51, VM52...
- Page 4 Circuits should be protected with circuit breakers which do not exceed the current marked on the product. VM10, VM11, VM20, VM21, VM30, VM31, VM32, VM33, VM40, VM41, VM51, VM52, VM55 • De-energise the system by switching off the fuse or main switch.
- Page 5 CM23 + VM11/VM41 • De-energise the system by switching off the fuse or main switch. • Attach a seal (2) to the mounting bracket (1). The extended part of the seal should be on the top. Pull the wires through the middle hole.
- Page 6 Sockets and plugs matching...
- Page 7 Warranty The manufacturer provides a warranty to the buyer for the properties and the fault-free operation of their products for a period of 5 (five) years from the date of purchase. The manufacturer undertakes to remedy any defect in the operation of the product which would occur within the warranty period, at their own expense or by a qualified service technician, within a reasonable time, which shall not exceed 45 days from the receipt of the advertised product and the buyer's written notification of the error, or to deliver to the buyer a new product of the same type and at least of the same quality, within the stated time.
