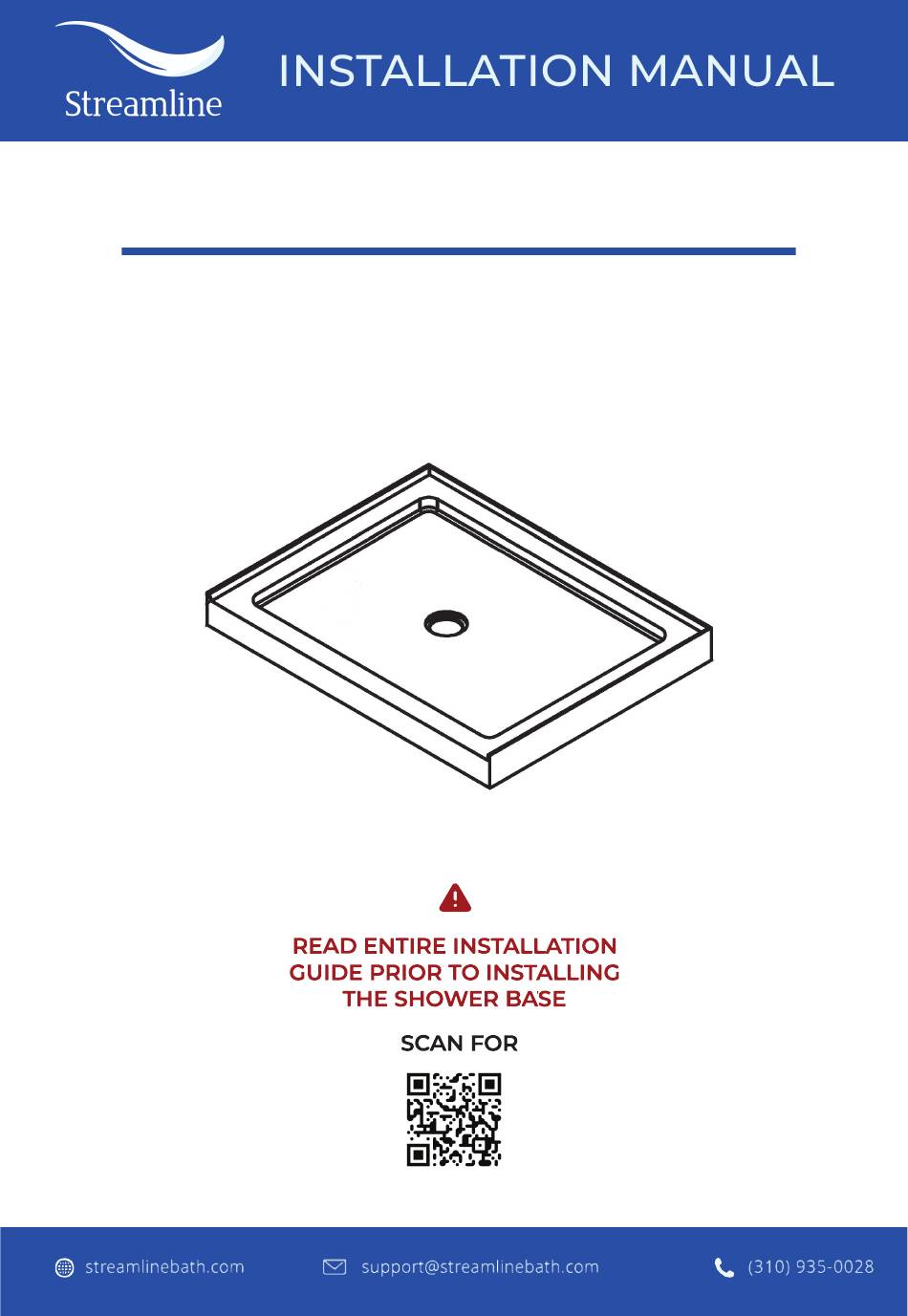

- Page 1 SHOWER BASE OWNER'S MANUAL & INSTALLATION GUIDE The images are for illustrative purposes only; please refer to the actual product for accuracy. YouTube Channel...
- Page 5 STREAMLINE. ALL PRODUCT NAMES, LOGOS, AND BRANDS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. STREAMLINE RETAINS ALL RIGHTS TO ITS TRADEMARKS, TRADE NAMES, AND COPYRIGHTED MATERIALS ASSOCIATED WITH THIS PRODUCT. UNAUTHORIZED USE OF THESE MATERIALS IS STRICTLY PROHIBITED AND MAY RESULT IN LEGAL ACTION.
- Page 6 1/8'' (3mm) 3/16” (5mm) Drill Bit Drill Bit Screws M4x25 (1 1/4'' Stainless Steel)
- Page 11 9. Remove the stainless-steel strainer, compression nut, compression wrench, and rubber compression gasket from the drain. 10. Take apart the locking nut and remove the rubber washer and the friction...
- Page 12 11. Take the drain body and run a continuous line of silicone along the underside lip. Additionally, apply a line of silicone around the drain hole in the shower base. 12. Insert the drain body into the drain hole of the shower base, pressing...
- Page 13 13. Attach the rubber washer to the drain body from the underside of the shower base. 14. Next, attach the friction washer to the drain body.
- Page 14 15. Secure the drain by threading the locking nut onto it and then tightening it with adjustable pliers or by hand. 16. Remove any surplus silicone from the drain.
- Page 16 18. Position the rubber compression gasket over the drainpipe that protrudes through the drain, ensuring the beveled side faces upward. Apply 19 . Insert the compression nut into the drain body and utilize the provided compression wrench and a screwdriver to tighten it. Turn clockwise to secure it in place.
- Page 17 21. Once the drain is completely installed, verify proper drainage, and inspect for potential leaks.
- Page 22 1/8'' (3mm) 1/8'' (3mm) 3/16'' (5mm)
- Page 23 tightening...
-
