BATHTUB DRAIN INSTALLATION INSTRUCTIONS
P DRAIN SERIES
These products must ONLY be installed by a fully insured and licensed plumber.
Installation of the product by anyone other than a fully insured and licensed plumber
shall void the limited warranty.
Building and plumbing codes may vary from state to state.
Streamline is not responsible for any local code compliance for this product.
Please be advised that the warranty does not cover product failures resulting from
improper installation.
T
Prior To Installation

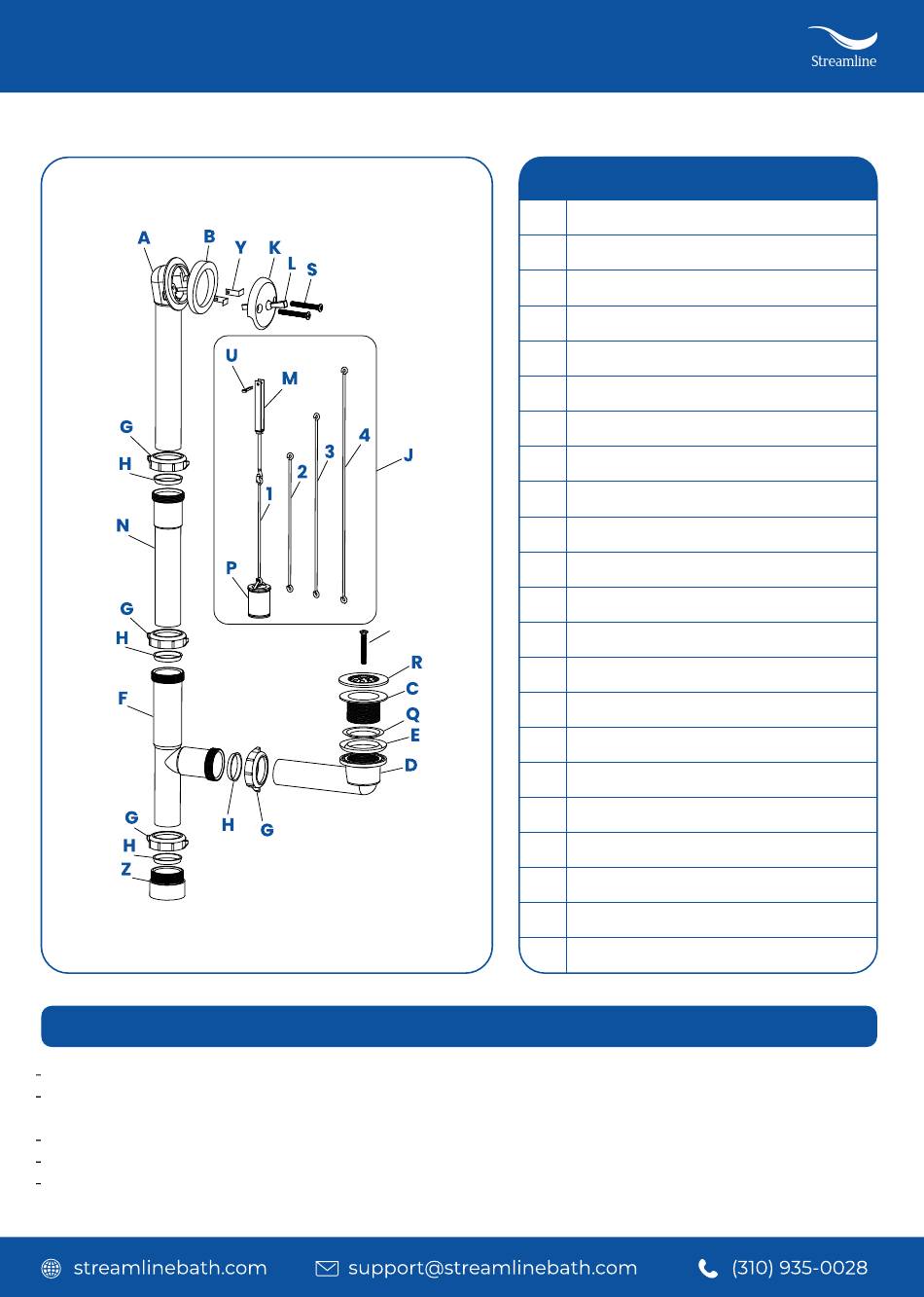

Parts Diagram
A
Overflow Elbow
B
Overflow Rubber Washer
C
Strainer
D
Drain Elbow
E
Drain Rubber Washer
F
Waste Tee
Slip Nut
G
H
Washer
Trip Lever Linkage
J
Linkage Wires
1-4
Trip Lever Face Plate
K
Trip Lever Handle
L
M
Threaded Rod
Extension Tube
N
P
Plunger
Strainer Upper Gasket
Q
R
Strainer Grid Plate
S
Overflow Plate Screws
T
Strainer Grid Screw
U
Cotter Pin
Overflow Retainer Clips
Y
Drain Adapter
Z
Advertisement
Table of Contents
Related Manuals for Streamline P DRAIN Series
Summary of Contents for Streamline P DRAIN Series
- Page 1 Building and plumbing codes may vary from state to state. Streamline is not responsible for any local code compliance for this product. Please be advised that the warranty does not cover product failures resulting from...
- Page 2 Properly installing drain components is the sole responsibility of the installer. Streamline does not provide warranty coverage for leaks associated with improper waste installation. Streamline is not liable for defects or issues that arise or could have been prevented by inspecting and testing all plumbing connections for leaks before completing the installation.
- Page 3 BATHTUB DRAIN INSTALLATION INSTRUCTIONS If the extension tube (N) is needed for the desired overflow height, insert the overflow elbow (A) into the extension tube (N), and carefully tighten the slip nut (G) without over-tightening. Then, position a slip nut (G) and washer (H) on the extension tube (N), orienting the threads of the slip nut and the beveled edge of the washer toward the end of the tube.
- Page 4 BATHTUB DRAIN INSTALLATION INSTRUCTIONS Adjusting The Linkage Assembly 1. Insert the linkage assembly into the overflow, ensuring the trip lever is in the open position (Facing down). 2. Secure the overflow plate onto the overflow drain. 3. Push the trip lever firmly to the closed position (Facing up) in order to set the plunger in the drain.
