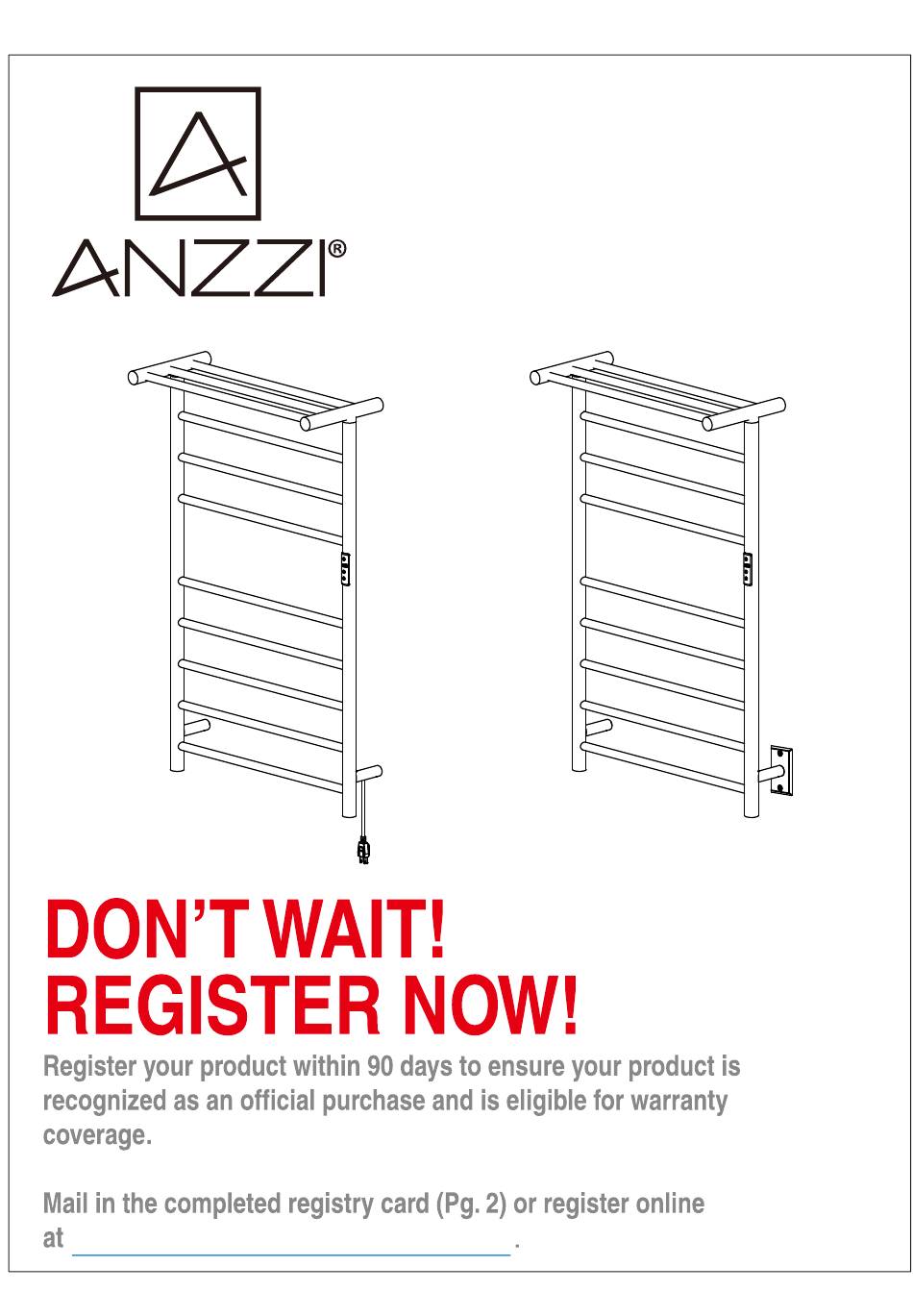

- Page 1 ITEM: TW-AZ012** ANZZI ELECTRIC TOWEL WARMER INSTALLATION & OPERATION MANUAL V2.0 01/10/2024 https://register.anzzihome.com/register/ V 2.0-This version supersedes all previous versions as of 01/10/2024...
- Page 2 IMPORTANT: Warranty will not be recognized unless product is registered. We offer two options to register your product. https://register.anzzihome.com/register/ Register online at or Scan the QR code below. Registering online is fast, secure, and ensures we receive your information. Complete, cut out, and mail the registration card below. Returning this registration card will ensure your product's warranty and allow us to process any warranty claims.
- Page 3 INSTRUCTION Before using this product. Please read the following instructions carefully and keep this pamphlet for future reference. About the product: This product is designed for drying or warming towels and for indoor use only. It is manufactured according to ETL standard and used under the voltage of 120V AC.
- Page 4 PRODUCT SIZE CHART 9.53" [ 242mm ] 23.62" [ 600mm ] 22.36" [ 568mm ] 3.15" [ 80mm ] 2.76" [ 70mm ] 3.15" [ 80mm ] R0.63" [ R16mm ] Hardwire kit ∅0.75" [ 19mm ] ∅1.26" [ 32mm ] 120V 200W Electrical cord length 70.87"...
-
Page 5: Parts List
TOOLS 1.Pencil 2. Hammer 3. Tape Measure 4. Electric Drill 5. “+” screwdriver 6. Level 7. Gloves PARTS LIST PG.3... -
Page 6: Plug-In Installation
INSTALLATION This product can be both plug-in and hardwire installation, choose one based on need. 1. Plug-in Installation ( 1 / 2 ) STEP 1 : Install the Shelf [ 14 ] at the top, use Hexagen Wrench [ 8 ] secure the screw: 1. - Page 7 1. Plug-in Installation ( 2 / 2 ) STEP 4: Knock Screw Expansion Tube [ 6 ] into the drilled hole. STEP 5 : Shelf Fixing Block [ 13 ] Fix the Fixing Block [ 4 ] and Shelf Fixing Block [ 13 ] to the wall with Self-tapping Screw [ 5 ] slightly as shown.
-
Page 8: Hardwire Installation
2. Hardwire Installation ( 1 / 3 ) STEP 1: Use scissors to cut off the electrical cord about 4.7'' [ 120mm ] from the back of the towel rack, and use a wire stripper to strip it. (location “A”) Install the Shelf [ 14 ] at the top, then Use Hexagen Wrench [ 8 ] secure the screw at location “B”. - Page 9 2. Hardwire Installation ( 2 / 3 ) STEP 4: Place the product on the wall, cover the installation cover on the wire box, use Cap Screw [ 12 ] to fix Hardwired Wall Mounting Plate [ 10 ] to the wire box, use a level to adjust the angle of the product, and use a pencil to mark the hanging wall The posi- tion of bracket screws and decorative cover...
- Page 10 2. Hardwire Installation ( 3 / 3 ) STEP 8: Strip the insulation from the electrical cord and connect both electrical cord to tighten the copper wire ends of the electrical cord in the junction box respectively. Then use the Wire Nut [ 11 ] to fix the copper. STEP 11: Assemble the product to the wall mounting base, use Hexagen Wrench [ 8 ] to screw the tapered set screw into the screw hole of Wall Mounting Bracket [ 1 ] and tighten.
-
Page 11: Specification
OPERATING INSTRUCTION Power button Indicator Timer setting Temp setting Fig1 Fig2 Fig3 Specification NOTE: Please use the towel warmer under 120 Voltage only. Power supply specification: 120V AC / 60HZ ● Power output: 200W ● Setting temperature range: 100 ~ 140°F ( 37.7 ~ 60 °C ) ●... -
Page 12: Error Display
OPERATING INSTRUCTION Power button: Press to turn on the towel warmer. The screen shows the preset heating ● tempreature at default temp 100°F, Press again to turn off. (Fig 1) Timer setting: Press to setup the heating time between 1 to 8 hours. When the screen shows ●... -
Page 13: Cleaning And Maintenance
CLEANING & MAINTENANCE Towel warmers are designed for heating towels and bathrobes and should not be used for other ● purposes. The manufacturer or reseller assumes no liability if the device is used in combination with equipment or accessories not sold by the manufacturer. This towel warmer is to be only used with fabrics that are water washable. - Page 14 CLEANING & MAINTENANCE Do not place your towel warmer inside a shower, sauna or plunge into the water. ● To ensure continued protection against risk of electric shock, plug the unit into a properly ● grounded outlet. Approved for domestic use only. Do not use outdoors. ●...
-
Page 15: Troubleshooting
TROUBLESHOOTING SYMPTOM RECOMMENED ACTIONS Thermostat failure Power off for first step and restart.Please contact the after-sales service if the problem still cannot be sloved. The electrical cord is plugged in and Ask a professional to check the socket-related lines to troubleshoot. tripped Please contact the after-sales service if the problem still cannot be sloved. - Page 16 ®...
