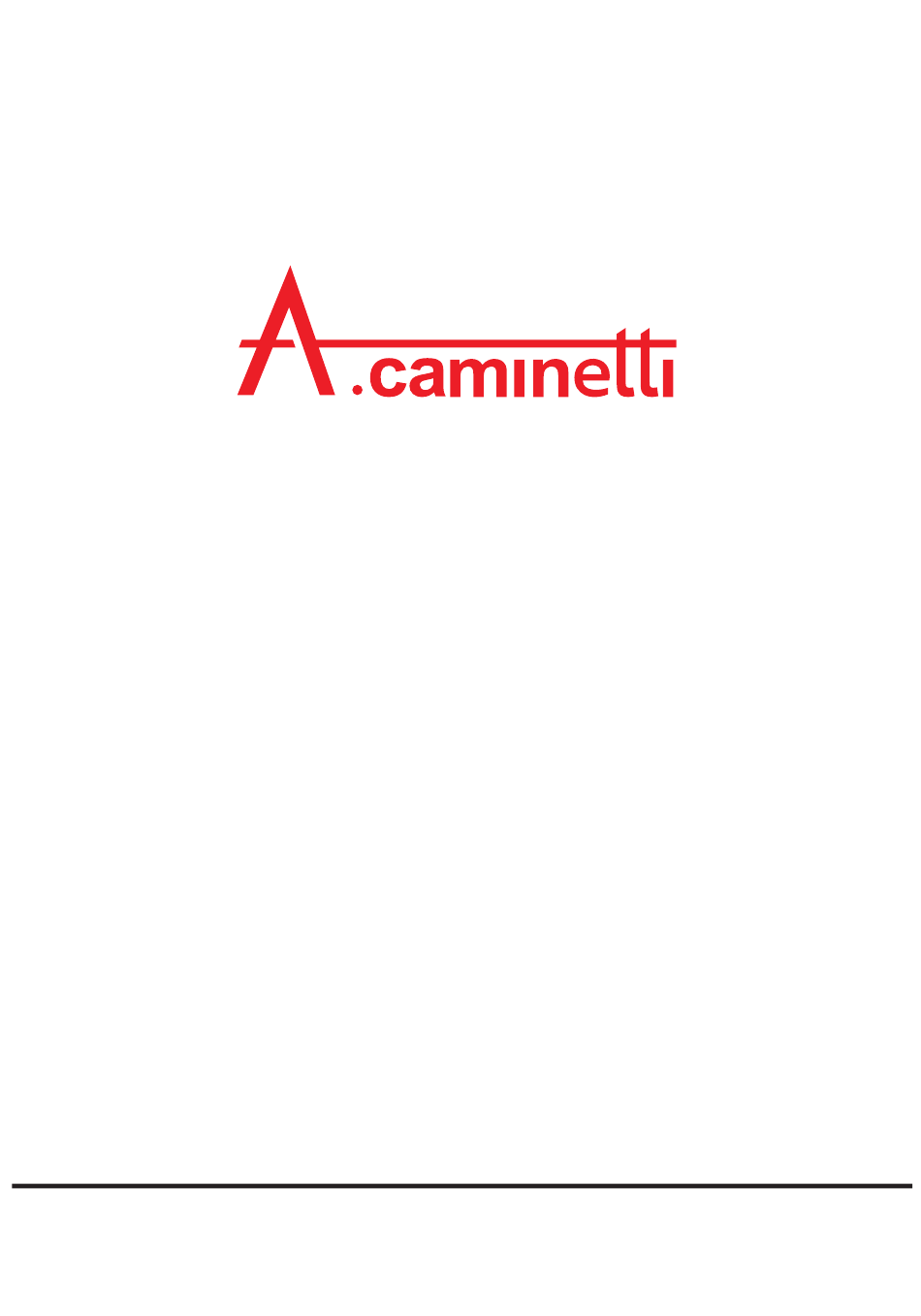

- Page 1 MANUAL OF USE INSTALLATION & OPERATION OPEN SIDE FIREPLACES www.acaminetti-factory.com...
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION........pg 01 2. APPLICATIONS........pg 02 3. -
Page 3: Introduction
We only provide a warranty on our products if all the instructions listed in this operation manual are adhered to. Your A.caminetti stove has probably already been installed, and perhaps you have used it for the rst time. To most of us, an operating manual is something we consult when everything else has failed particularly if we have had a wood-burning stove for many years. -
Page 4: Applications
2. APPLICATIONS The open side fireplaces by A.Caminetti are fireplaces from the group of solid-fuel hearths with a manual fuel load, connected to a building by means of a conduit which transports ue gases out of the building, and a lockable hearth door. -
Page 5: Installation
You should ensure that your stove is installed in accordance with applicable codes, regulations and safety distances for combustible material. All A.caminetti dealers will be happy to tell you about the requirements applying to your speci c stove and give you further instructions on its correct installation. Furthermore, your dealer / chimney sweep... -
Page 6: Fuel Choice
5. FUEL CHOICE Recommended Fuel - the manufacturer recommends hardwood billets like beech, hornbeam, oak, alder, birch, ash, etc., with billet or split log dimensions 30cm long and circumferences between 20 and 30cm, and lignite briquettes. - the humidity of the fuel wood for the appliance should not exceed 20%, which is characteristic of wood seasoned 2 years after felling and stored under cover. -
Page 7: Connection To Chimney Stack
8. CONNECTION TO CHIMNEY STACK A open side fireplace must be connected to an individual chimney ue. The minimum chimney draughts for rated heat output [Pa]: the chimney-draught values - Minimum draught: 6 ± 1 Pa - Medium, recommended draught: 12 ± 2 Pa - Maximum draught: 15 ±... - Page 8 POSITIONING THE OPEN SIDE FIREPLACE AT A SAFE DISTANCE The fireplace should be positioned on a non- ammable oor which is at least 2.030 mm thick, and the ammable oor in front of the heater door should be separated with at least a 30-cm area of non- am- mable material (e.g. ceramic or vitri ed tiles, stone, glass or steel base).
-
Page 9: Chimney Positioning
9.1 CHIMNEY POSITIONING rain cap chimney 254 mm minimum chimney height strom collar flashing roof 3048 mm to nearest roofline less than 3048 mm. pitched roof wall of parapet flat roof 3048 mm or more less than 3048 mm recommended location recommended location marginal location location NOT recommended... -
Page 10: Distance To Furniture
10. D ISTANCE TO FURNITURE The minimal recommended distance from stove to furniture is 48 inches. Note that some furniture are more easily a ected by heat and may be needed to stay at a further distance. This is your responsibility. -
Page 11: Air Supply From Outside
11. AIR SUPPLY FROM OUTSIDE - CONNECTION METHODS - The fireplace insert must only be operated in rooms with a sufficient supply of air for burn ing. Air supply pipe from outside (fresh air) 150 mm Equipment for extracting air (e.g. ventilation equipment, steam exhausting unit), which is operated with the fireplace insert in one room, may interfere with the air supply into the fireplace insert. -
Page 12: Starting Of Fire & Air Control
12. STARTING A OPEN SIDE FIREPLACE, AIR CONTROL REGULATIONS The so-called top-down lighting is the only correct and recommended method of starting replaces and free-standing stoves. STEP-BY-STEP PROCEDURE 1. MATERIAL NEEDED -A few larger wooden billets (split; max. humidity 20%; approx. 10-13 cm) - a handful of splints for kindling (dia. - Page 13 (Fig. 9). This will prevent burning air getting into the chamber and will prolong the heat phase. The coal will remain hot in the chamber longer and the heat will not escape through the chimney. All A.caminetti Open side stoves include: C RYSTAL 80 OPEN SIDE ,...
-
Page 14: Cleaning & Maintenance
Notice: Ash can contain hot coal for up to 24 hours.Always remove the ash when it is cold and extinguish the fireplace insert! Then place them for 24 hours into a non-flammable vessel out of the reach of children. Your A.caminetti fireplace insert uses the latest and the most effective grid-free method of burning. Remove the ash within regular intervals adapted to the intensity of the heating. -
Page 15: Door Opening/Closing
14. DOOR OPENING/ CLOSING A.caminetti open side fireplace enable one method for closing the door: 1 – manual closing The door is set in production for manual closing with the instructions above, on this manual. SPARE PARTS If after many years you nd exchanging some parts necessary, contact the supplier or any representa- tive of our company. -
Page 16: Warranty
The manufacturer A.Caminetti waives all liability for any damage arising from any changes to the ap- pliance and any changes to the other system made by the user. In aiming at the continual impro- vement of its products, A.Caminetti reserves the right to make changes to its appliances without any noti cation. - Page 17 A.camine� factory road National Korce-Erseke, KORCE,ALBANIA A.camine� GmbH Am Industriegleis 6a, Ergolding / Germany. info@acamine�-factory.com www.acamine�-factory.com...
