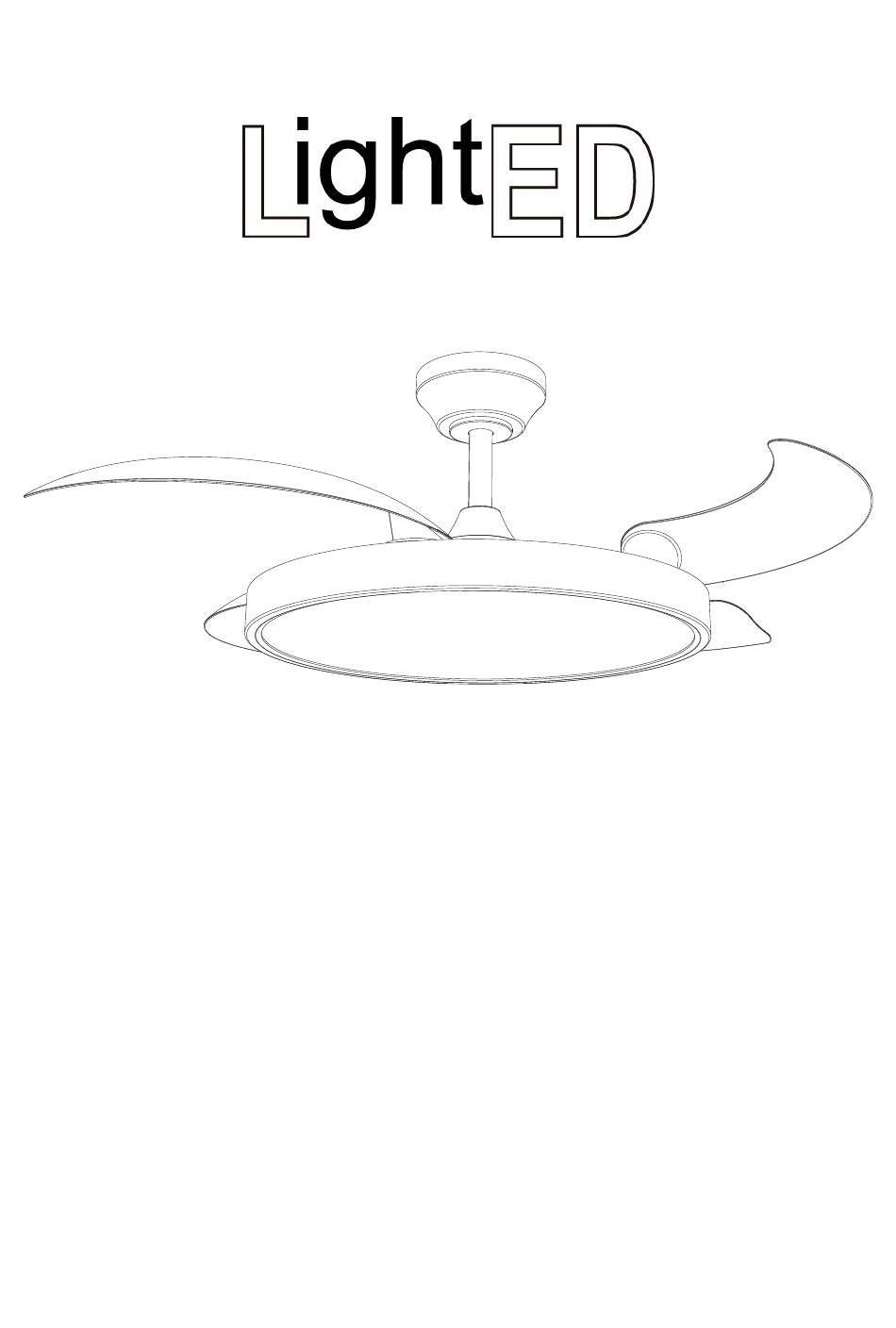

- Page 1 VENTILADOR DE TECHO URAL URAL CEILING FAN MANUAL DE INSTRUCCIONES INSTRUCTIONS MANUAL ANTONIO LÓPEZ GARRIDO, S.A.
- Page 2 ÍNDICE 1. MANUAL DE INSTRUCCIONES (CASTELLANO)..........3 2. INSTRUCTIONS MANUAL (ENGLISH)..............11 Dpto. Comercial / Marketing MANUAL DE INSTRUCCIONES pedidos@algsa.es INSTRUCTIONS MANUAL...
- Page 3 VENTILADOR URAL MANUAL DE INSTRUCCIONES (CASTELLANO) Dpto. Comercial / Marketing MANUAL DE INSTRUCCIONES pedidos@algsa.es INSTRUCTIONS MANUAL...
-
Page 4: Advertencias De Seguridad
GRACIAS POR COMPRAR UN VENTILADOR LIGHTED URAL. PARA ASEGURAR SU CORRECTO FUNCIONAMIENTO E INSTALACIÓN, POR FAVOR, LEA DETENIDAMENTE Y SIGA LAS INSTRUCCIONES ANTES DE USAR EL PRODUCTO. Precautions ADVERTENCIAS DE SEGURIDAD Before using this ceiling fan with light, please read this manual carefully and operate strictly in accordance with the procedures. - Page 5 INVENTARIO DE PIEZAS Abra con cuidado el embalaje. Retire los elementos de los insertos de poliestireno. Retire la carcasa del motor y colóquela sobre una alfombra o espuma de poliestireno para evitar dañar el acabado. Verifique con el inventario de piezas que se hayan incluido todas las piezas. Ceiling Fan Kit：...
-
Page 6: Instrucciones De Instalación
INSTRUCCIONES DE INSTALACIÓN 1. INSTALE EL SOPORTE DE MONTAJE: Techo de cemento Techo de madera Wood Ceiling: Secure the mounting bracket direct to the wood ceiling with 4 pieces of washers and wood screws. (The ceiling must bear more than 60kg.) Concrete Ceiling: Use a ф8mm hammer drill bit to drill a hole according to length of the expansion screw. - Page 7 LAMPPLATEINSTALLATION LAMPPLATEINSTALLATION LAMPPLATEINSTALLATION 2. INSTALE LA FUENTE DE LUZ: Wire rope hooks Wire rope hooks Wire rope hooks Ganchos para cable de Wire rope sujeción Wire rope Wire rope Cable de sujeción Install the lamp shade to the lamp plate in place properly. Then turn it clockwise, Make Coloque la pantalla en la base de la lámpara y gírela en el sentido de las agujas del reloj hasta que quede ajustada.
- Page 8 5. CABLEADO DEL MANDO Y DEL RECEPTOR: DIAGRAMA DE CABLEADO Juego de cables de entrada del motor Juego de cables de entrada de la luz Soporte de Regleta de montaje conexión 6. COLOCA EL EMBELLECEDOR DEL SOPORTE: Mount the canopy by tighten the two screws Monte el dosel apretando los dos tornillos.
- Page 9 FUNCIONES DEL MANDO: 1. APAGADO DEL VENTILADOR 2. MODO BRISA 3. VELOCIDAD DEL VENTILADOR 4. FUNCIÓN VERANO/INVIERNO 5. TEMPORIZADOR 6. LUZ CÁLIDA 7. LUZ NEUTRA 8. LUZ FRÍA 9. CONTROL DE INTENSIDAD DE LA LUZ 10. APAGAR O ENCENDER LA LUZ 11.
- Page 10 Dpto. Comercial / Marketing MANUAL DE INSTRUCCIONES pedidos@algsa.es INSTRUCTIONS MANUAL...
- Page 11 URAL CEILING FAN INSTRUCTION MANUAL (ENGLISH) Dpto. Comercial / Marketing MANUAL DE INSTRUCCIONES pedidos@algsa.es INSTRUCTIONS MANUAL...
-
Page 12: Safety Guidelines
THANK YOU FOR PURCHASING A URAL LIGHTED FAN. TO ENSURE CORRECT OPERATION AND INSTALLATION, PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT. Precautions SAFETY GUIDELINES Before using this ceiling fan with light, please read this manual carefully and operate strictly in accordance with the procedures. -
Page 13: Parts Inventory
PARTS INVENTORY Carefully open the packaging. Remove the items from the styrofoam inserts. Take out the motor housing and place it on a carpet or styrofoam to avoid damaging the finish. Check the parts inventory to ensure all pieces are included. Ceiling Fan Kit：... -
Page 14: Installation Instructions
INSTALLATION INSTRUCTIONS 1. INSTALL THE MOUNTING BRACKET: Wood Ceiling: Secure the mounting bracket direct to the wood ceiling with 4 pieces of washers and wood screws. (The ceiling must bear more than 60kg.) Concrete Ceiling: Use a ф8mm hammer drill bit to drill a hole according to length of the expansion screw. -
Page 15: Hanging The Fan
LAMPPLATEINSTALLATION LAMPPLATEINSTALLATION LAMPPLATEINSTALLATION 2. INSTALL THE LIGHT SOURCE: Wire rope hooks Wire rope hooks Wire rope hooks Wire rope Wire rope Wire rope Install the lamp shade to the lamp plate in place properly. Then turn it clockwise, Make Place the lampshade on the lamp base and turn it clockwise until it is securely fastened. sure the lamp shade tightening. - Page 16 5. WIRING THE REMOTE CONTROL AND RECEIVER: 6. ATTACH THE MOUNTING BRACKET COVER: Mount the canopy by tighten the two screws Secure the canopy by tightening the two screws. Mount the canopy by tighten the two screws Mount the canopy by tighten the two screws 6.
-
Page 17: Remote Control Functions
REMOTE CONTROL FUNCTIONS: 1. FAN OFF 2. NATURAL WIND 3. SPEED OF THE FAN 4. FORWARD/REVERSE 5. FAN TIMER 6. WARM LIGHT 7. WHITE LIGHT 8. COLD LIGHT 9. BRIGHTNESS CONTROL SWITCH 10. LIGHT ON /OFF 11. 2 PILAS AAA 1,5V IMPORTANT: If the emitter cannot control the fan, use the learning code matching mode between the emitter and the receiver. - Page 18 ANTONIO LÓPEZ GARRIDO, S.A. Avda. Comarques del País Valencià, 60 46930 - Quart de Poblet (Valencia) www.algsa.es...
