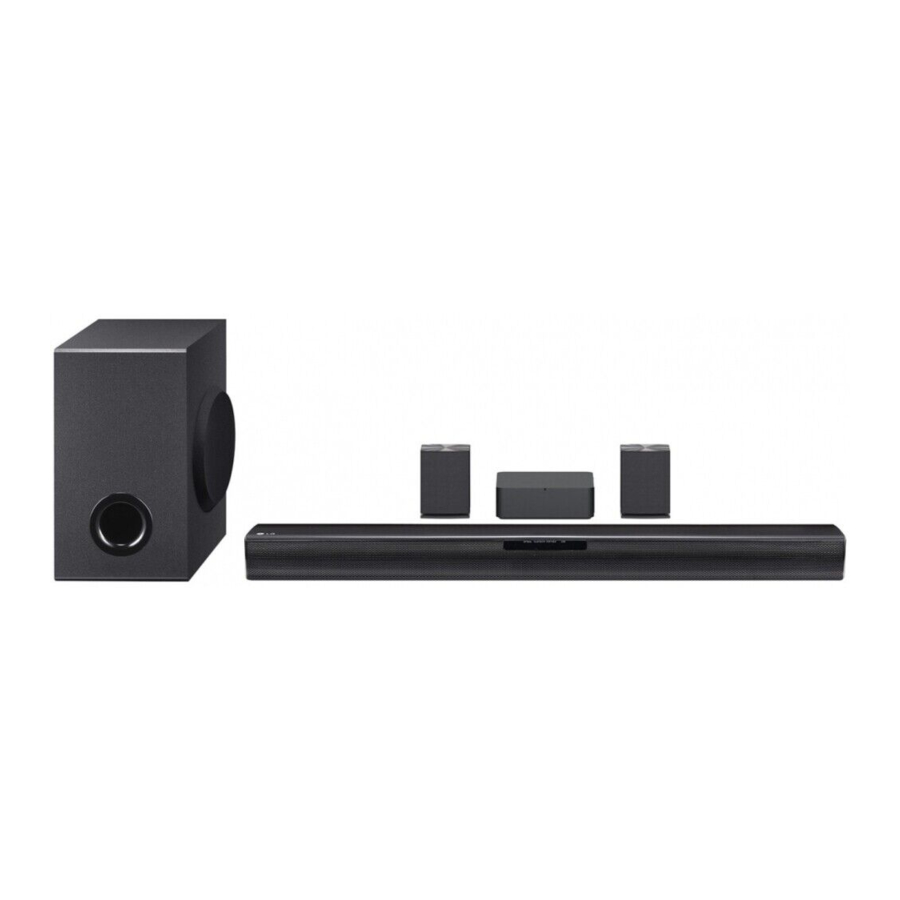

LG SQC4R, SPQ4-S Manual

Specification

Power consumption

• Refer to the main label.

AC adapter

• Model: A931-230087W-M21
• Manufacturer: Dongguan Aohai Technology Co.,Ltd.
• Input: 100 - 240 V ~ 50/60 Hz
• Output: 23.0 V 0.87 A

Sound bar dimensions (W x H x D): Approx. 660.0 mm x 56.0 mm x 99.0 mm
Wireless receiver dimensions (W x H x D): Approx. 175.0 mm x 61.0 mm x 175.0 mm
Bus Power Supply (USB): 5 V 0 500 mA
Amplifier (Total RMS Output power): 220 W RMS

Package Contents

Replacement of Battery

Installing and Using the Product

1. Sound bar
2. Function LED / Remote Control Receiver
3. Rear Speakers / Wireless Receiver
4. Wireless Subwoofer - Install it close to the sound bar.
5. External Device - (Blu-ray player, game console, etc.)

1. Connect the sound bar to your TV via an optical cable.
2. If you are using an external device (ex. Blu-ray player, game console, etc.), connect it to the TV via an HDMI cable.
3. Connect to power in the following order: wireless subwoofer → wireless receiver → sound bar. Then, turn on the sound bar. When the connection is automatically established with the sound bar, the LEDs on the wireless subwoofer and the wireless receiver will light up green.
4. Using the product with your TV
   1. Press the F button repeatedly until the OPTICAL LED appears on the function LED.
   2. On your TV' s settings, set the output speaker to [Optical] or [External Speaker].
5. Connecting the product to your smartphone via Bluetooth
   1. Tap the Settings button on your smartphone and select Bluetooth. Turn on the Bluetooth function. ( Off > On)
   2. Press the F button repeatedly until the blinking Bluetooth LED appears on the function LED.
   3. Find and select the sound bar on your smartphone. The product should appear as "LG SQC4R(XX)".
   4. When the product is connected to your smartphone via Bluetooth, the Bluetooth LED turns on.

If you see a red LED on the wireless subwoofer or on the front of the wireless receiver, it means that the sound bar is not connected to the speakers. If this is the case, connect them in the following order.

1. Press the Power button on the sound bar to turn it off.
2. Press the Pairing (PAIRING) button on the back of the wireless subwoofer or wireless receiver. Check if LED blinks green.
   • If you still see a red LED on the wireless subwoofer, press and hold the button on the back of the subwoofer again.
3. Press the Power button on the sound bar to turn it on.
4. When the connection is established, you will see a green LED light on the wireless subwoofer or on the front of the wireless receiver light up.

*Keep the sound bar, the subwoofer and wireless receiver away from the device (ex. wireless router, microwave oven, etc.) over 1 m to prevent wireless interference.

• Some speaker may not playback audio due to the input source. Select BASS BLAST sound mode to listen through all speakers.

• Actual features, functionality, and other product specifications may differ and are subject to change without notice.

www.lg.com
