Summary of Contents for Varia VS6

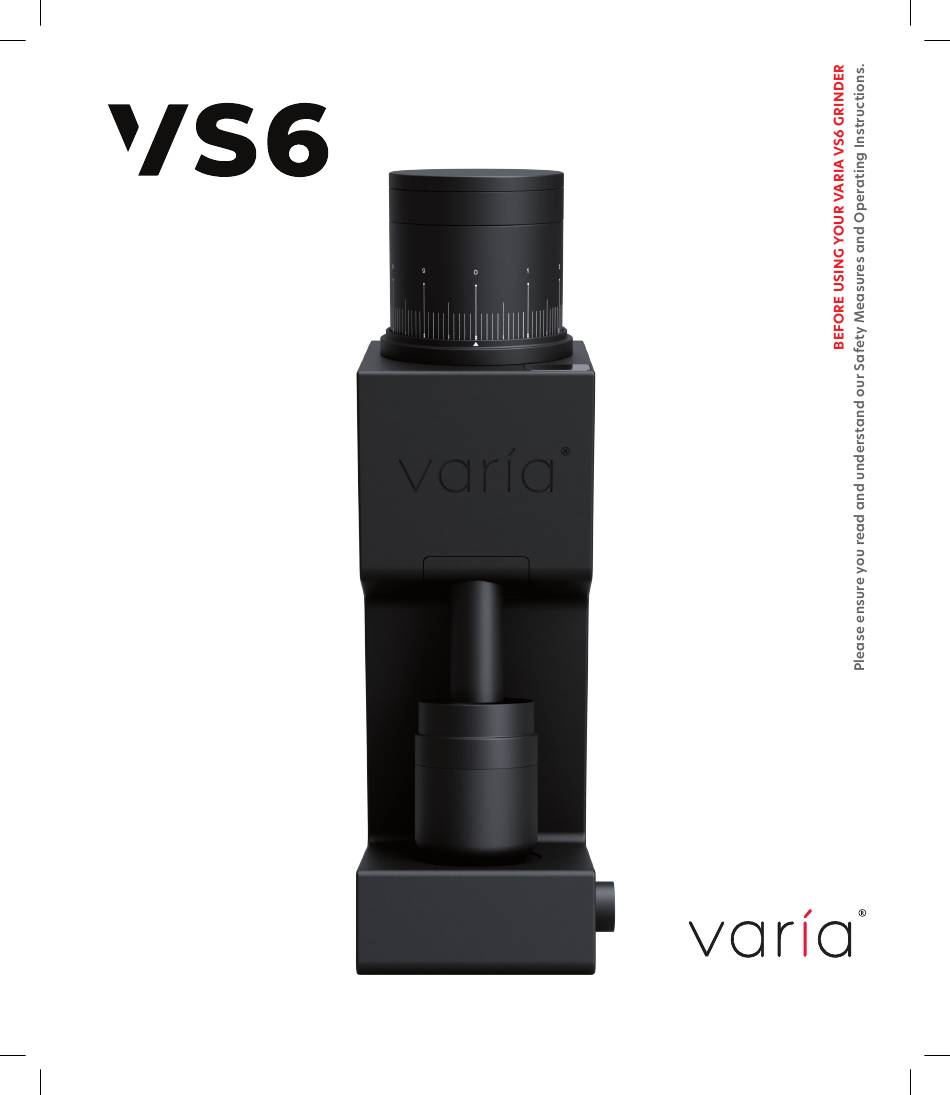

- Page 1 USER MANUAL GRIND DIFFERENT...
-
Page 2: Table Of Contents
USER MANUAL Contents: Safety Measures and Precautions for use Product Overview Quick Start Guide Removable Dosing Tube with Spring Loaded Knocker Power Button & RPM Control Hopper 3.4 Hopper Finger Guard + Single Dose Feed Active ionisation needles Grind Settings & Calibration Flat Burr Grind Settings Chart 3.8 Flat Burr Assembly Flat Burr Reassembly... - Page 3 USER MANUAL The Varia VS6 is the latest entry to the commercial/prosumer space of grinders. VS6 features a revolutionary new internal assembly that allows for interchangeability between a 58mm flat burr to a 63mm conical burr set within seconds and with no calibration needed.
-
Page 4: Safety Measures And Precautions For Use
USER MANUAL 1. Safety Measures and Precautions for use Please take time to familiarise yourself with the Varia VS6 safety measures and operational guidelines detailed within this manual before operating the grinder. ELECTRICAL SAFETY: Failure to follow these instructions/guidelines can result in DANGER! electrical shock, fire, or cause serious injury and/or death. - Page 5 NO COFFEE in the grind chamber. 15. WARRANTY DISCLAIMER: The one-year warranty will be voided if the product is used for something 24. DO NOT wash any Varia VS6 parts in the other than its intended purpose, and it could DISHWASHER.
-
Page 6: Product Overview
RPM Display screen Power Switch / RPM control DO NOT REMOVE BOTTOM COVER FROM MAIN BODY. ONLY authorised service agents are permitted to repair Varia VS6. WARNING Unauthorised repairs will void the manufacturers warranty. In the event that repairs are necessary please contact your point of sale representative... -
Page 7: Quick Start Guide
DWG No. Exterior VS6 Rev. Date of issue Sheet ENSURE that your power supply voltage is the same as marked on the underside of your WARNING VS6. Check the plug type matches your power outlet. NEVER use a plug adapter. - Page 8 Care not to cross thread. hopper, aligning to Check that the locking nut magnets. on the assembly is tight, as To recalibrate your Varia VS6, Attach Lid using magnets vibrations during shipment 1. Rotate the hopper in a clockwise if required.
-
Page 9: Removable Dosing Tube With Spring Loaded Knocker
To replace, push it back onto the rails until you feel the magnets connect. Alignment The VS6 features a removable dosing tube interface, cut outs designed for effortless cleaning. Additionally, it includes a built-in spring-loaded knocker to dislodge any loose grounds or static build-up from the dosing chute. -
Page 10: Power Button & Rpm Control
2. Rotate RPM control dial to the desired RPM. The VS6 will start at 500RPM – with 100RPM adjustments permitted to 1600RPM. 3. To POWER OFF the VS6, press the button once more. RPM Control (Rotate) Clockwise to increase RPM SAFETY FEATURE... -
Page 11: Hopper
USER MANUAL 3.3 Hopper The VS6 hopper features a automatic (magnetic) power cut-off safety system. When the hopper is removed from the grinder chamber thread, the sensor will cut-off power to the motor, this precaution ensures your safety while disassembling the grinder. -
Page 12: Hopper Finger Guard + Single Dose Feed
DANGER! 3.4 Hopper Finger Guard + Single Dose Feed NEVER ALLOW fingers, long The VS6 is equipped with a removable lid and a hair or loose clothing to enter single dose feed collar for added convenience. the hopper when the motor is... -
Page 13: Active Ionisation Needles
DANGER! Safety Precautions: Active Ionisation Needles To ensure safe operation and prevent damage to your VS6 grinder, please adhere to the following guidelines regarding the active ionisation needles: DO NOT Touch the Needles: Under no circumstances should you touch the active ionisation needles with your fingers or any other objects. -
Page 14: Grind Settings & Calibration
Grind Size Adjustment Markings The hopper of the VS6 is equipped with an intuitive adjustment marking system for grind settings. Each small line on the hopper represents a 5-micron adjustment in particle size, allowing for precise control over the grind. -
Page 15: Flat Burr Grind Settings Chart
USER MANUAL 3.7 Flat Burr Grind Settings Chart 2 x REVOLUTIONS FROM “0” The Flat Burr can be adjusted to deliver the following grind particle sizes. • Turkish: 1 to 2 • Espresso: 2 to 5 • Mokapot: 5 to 7 •... -
Page 16: Flat Burr Assembly
USER MANUAL 3.8 Flat Burr Assembly Ring bearing Upper burr chamber Set nut Flat washer Lower burr Thin washer Driveshaft SECURING LOCKING NUT To securely tighten the locking nut - use the open end wrench to restrain the driveshaft while tightening the locking nut (anti-clockwise direction) using the locking nut wrench. -
Page 17: Flat Burr Reassembly
USER MANUAL 3.9 Flat Burr Reassembly 1. Place a thin washer on top of the driveshaft Replace the 4 x springs back into the burr chamber. 2. Slide the lower burr onto the driveshaft lining up with the corresponding flat side on the driveshaft 3. -
Page 18: Burr Seasoning
This will be reduced after grinding your first 2kg of coffee through the Varia VS6 and as the body discharges any residual static. The finger guard, designed to keep fingers away from the sharp burrs, must remain intact. Ensure fingers, loose clothing, and long hair are kept a safe distance from the hopper opening while operating or on standby. -
Page 19: Technical Specifications
USER MANUAL 4. Technical Specifications Manufacturer Varia Brewing Limited Model name Varia – VS6 Voltage 100/120V or 220/240V versions Colour options Black/White Burr Size/type 58mm Flat burr Base material ADC12 die cast and machined aluminium Burr material hardness High nitrogen 420 Stainless Steel SUS420... -
Page 20: Limited Warranty
Varia Brewing Limited will not be responsible for any material damage or personal injury resulting from failure to adhere to the Varia VS6 Grinder Safety Measures and or Operating Instructions detailed in this manual. Please direct all warranty claims and enquiries to: support@variabrewing.com...
