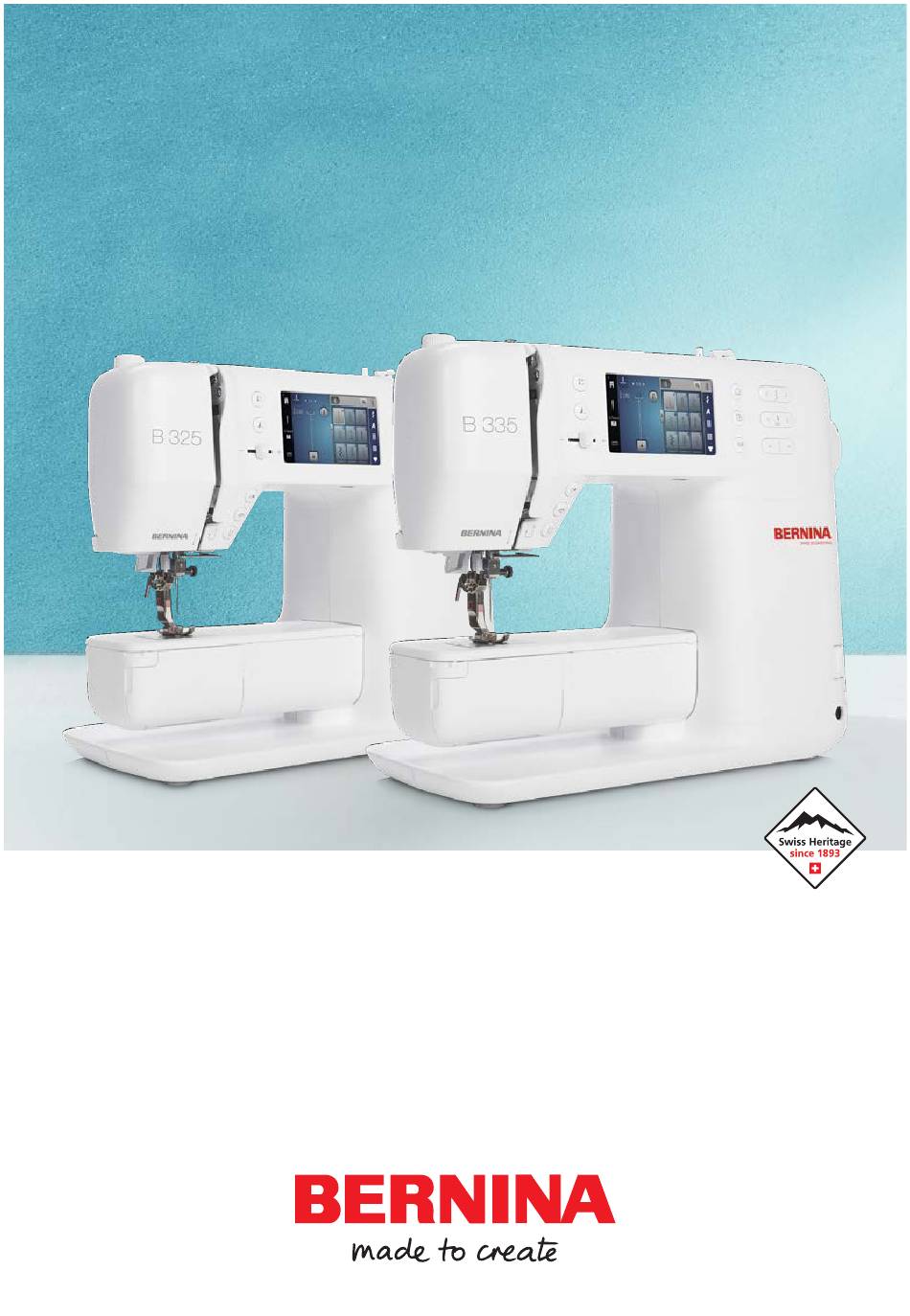

- Page 1 QUICK START GUIDE BERNINA 335 | 325...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT SAFETY INSTRUCTIONS ..............General Information ..................General Facts 1 Machine ...................... 10 1.1 Front ......................10 1.2 Needle Area....................10 1.3 Back ......................11 1.4 Controls ....................12 2 Accessories ....................13 2.1 Included Presser Feet (B 325) ..............13 2.2 Included Presser Feet (B 335) .............. - Page 3 Table of Contents Maintenance and Care 5 Maintenance ....................23 5.1 Cleaning the Feed Dog ................23 5.2 Cleaning and Lubricating the Hook............24 6 Technical Data.................... 25 6.1 Technical Data ................... 25 Troubleshooting 7 Troubleshooting ..................26...
-
Page 4: Important Safety Instructions
(e. g. magnifying humid area. glass). Do not use the machine in ► If the LED lamp is damaged rooms where aerosol or defective, have the LED products (sprays) are being lamp checked or repaired at used. your local BERNINA dealer. - Page 5 Technical Condition Always use the original ► Never use the machine when ► BERNINA Stitch Plate. it is damp. An incorrect stitch plate can Do not use the machine if it result in needle breakage. ► is not working properly.
- Page 6 To switch off, set the power country of origin, obtain a switch to «0». power cable suitable for this country from a BERNINA When protective covers are ► dealer. removed, when the machine is oiled or when other...
-
Page 7: Safety Signs On The Machine
IMPORTANT SAFETY INSTRUCTIONS instruction manual are Pull the plug out of the ► carried out, switch off the outlet by pulling on the plug. machine and disconnect the Do not pull on the cable. power plug from the outlet. SAFE THESE INSTRUCTIONS Safety Signs on the Machine Sign... -
Page 8: General Information
BERNINA dealer. Further accessories Keep the short manual of can be found at www.bernina.com. the machine in a suitable place near the machine For technical reasons and in order to and have it ready for reference. -
Page 9: Environmental Protection
General Information Environmental Protection BERNINA International AG is committed to environmental protection. We strive to minimize the environmental impact of our products by continuously improving product design and our manufacturing technology. The machine is labeled with the symbol of the crossed-out wastebin. -
Page 10: General Facts
General Facts 1 Machine Front 1 Bobbin Cover 2 Thread Cutter 3 Thread Take-up Lever 4 Thread Guide, Winder 5 Thread Tensions Discs 6 Spool Holder Vertical 7 Bobbin Winding Unit with Thread Cutter 8 USB Port 9 Feed Dog Up/Down 10 Knee Lifter Connection (B 335 only) Needle Area Stitch Plate Feed Dog Presser Foot Sole Presser Foot Shaft... -
Page 11: Back
General Facts 1 Machine Back 1 Connection for Foot Control 2 Power Switch 3 Air Vents 4 Handwheel 5 Spool Pin, Horizontal 6 Thread Guide Eye 7 Thread Guide, Rear 8 Carry Handle 9 Presser Foot Lifter 10 Power Cable Connection ... -
Page 12: Controls
General Facts 1 Machine Controls 1 Quick Reverse Sewing 2 Securing Stitches 3 Start/Stop 4 Speed Control 5 Pattern End 6 Needle position Up/Down 7 Upper Thread Tension 8 Presser Foot Pressure 9 Screen 10 Home Screen 11 Quick Help 12 Reset 13 Stitch Width 14 Needle Position Left/Right 15 Stitch Length ... -
Page 13: Accessories
General Facts 2 Accessories Included Presser Feet (B 325) Reverse Pattern Sole #1 Overlock Sole #2 bernina.com/foot-1-sole bernina.com/foot-2-snap-on Buttonhole Sole #3 Zipper Sole #4 bernina.com/foot-3-snap-on bernina.com/foot-4-snap-on Blindstitch Sole #5 bernina.com/foot-5-snap-on Included Presser Feet (B 335) Reverse Pattern Sole #1 Overlock Sole #2 bernina.com/foot-1-sole bernina.com/foot-2-snap-on Buttonhole Foot with Zipper Sole #4 Slide #3A bernina.com/foot-4-snap-on... -
Page 14: Included Accessories
General Facts 2 Accessories Included Accessories Dust Cover Accessory Bag Snap-On Shank #78 Power Cable bernina.com/snap-on-shank-78 Foot Control Slide-on Table bernina.com/free-arm-slide-on-table Spool Cap D12 Spool Cap D27 Spool Cap D43 Foam Pad Bobbin for CB Hook Height Compensation Tool bernina.com/CB-hook-bobbin-cases Seam Ripper Needle Assortment bernina.com/needle-assortment... -
Page 15: Screen
General Facts 3 Screen Home Screen Sewing eco Mode Consultant Tutorial Settings Sewing Screen Combi Mode Stitch Plate and Sewing Needle Stitch Length Presser Foot Needle Stop Stitch Width Needle Position Edit Stitch Selection Practical Stitches Decorative Stitches Alphabets Buttonholes Quilt Stitches Personal Folder... -
Page 16: User Interface Operation
User Interface Operation 4 Preparing the Machine Connecting the Machine and Foot Control Changing the Presser Foot... -
Page 17: Changing The Presser Foot
User Interface Operation 4 Preparing the Machine Changing the Presser Foot Changing the Needle... -
Page 18: Winding The Bobbin Thread And Threading
User Interface Operation 4 Preparing the Machine Winding the Bobbin Thread and Threading... -
Page 19: Preparing The Machine
User Interface Operation 4 Preparing the Machine 2-3x... -
Page 20: Threading The Upper Thread
User Interface Operation 4 Preparing the Machine Threading the Upper Thread... - Page 21 User Interface Operation 4 Preparing the Machine...
-
Page 22: Attaching/Removing Slide-On Table
User Interface Operation 4 Preparing the Machine Attaching/Removing Slide-On Table... -
Page 23: Maintenance And Care
Maintenance and Care 5 Maintenance Cleaning the Feed Dog... -
Page 24: Cleaning And Lubricating The Hook
Maintenance and Care 5 Maintenance Cleaning and Lubricating the Hook... -
Page 25: Technical Data
Maintenance and Care 6 Technical Data Technical Data Term Value Unit Maximum Speed Stitches per Minute Needle System 130/705 Measurements without the 385 × 323 × 177 Spool Pin (W × D × H) (15.2 × 12.7 × 7.0) (inch) Weight of the Machine (17.6) (lb) Energy Consumption... -
Page 26: Troubleshooting
Use the needle system 130/705H. Needle blunt or bent. Replace the needle. Poor quality needle. Use a new BERNINA quality needle. The needle is incorrectly inserted. Insert the needle with the flat side to the back as far up as it will go into the needle holder and tighten the screw. - Page 27 Connect the machine and switch it The machine is damaged. Contact your BERNINA dealer. Needle Breaks The needle is incorrectly inserted. Insert the needle with the flat side to the back as far up as it will go into the needle holder and tighten the screw.
- Page 28 Incorrectly threaded. Rethread the upper thread. Poor quality thread. Use quality thread. The stitch plate or the hook tip is Contact your BERNINA dealer to have damaged. the damages repaired. Replace the stitch plate. Buttonholes are repeatedly not sewn properly The Buttonhole Foot with Slide #3A is...
- Page 29 Check the thread feed from the thread spool. Needle blunt or bent. Replace the needle, make sure that a new BERNINA quality needle is used. Poor quality needle. Use a new BERNINA quality needle. Poor quality thread. Use quality thread.
- Page 30 Troubleshooting 7 Troubleshooting USB stick is not detected USB stick is incompatible. Use a BERNINA USB stick or compatible USB stick. USB stick not with correct file system. Use a USB stick with the FAT32 file system.
- Page 32 BERNINA recommends threads from 1082725.00A.04 BERNINA International AG | CH-8266 Steckborn Switzerland | www.bernina.com | © Copyright by BERNINA International AG 2024-10 EN...
