Operating instructions
5-stage Reverse Osmosis System
64409, 64410, 6411

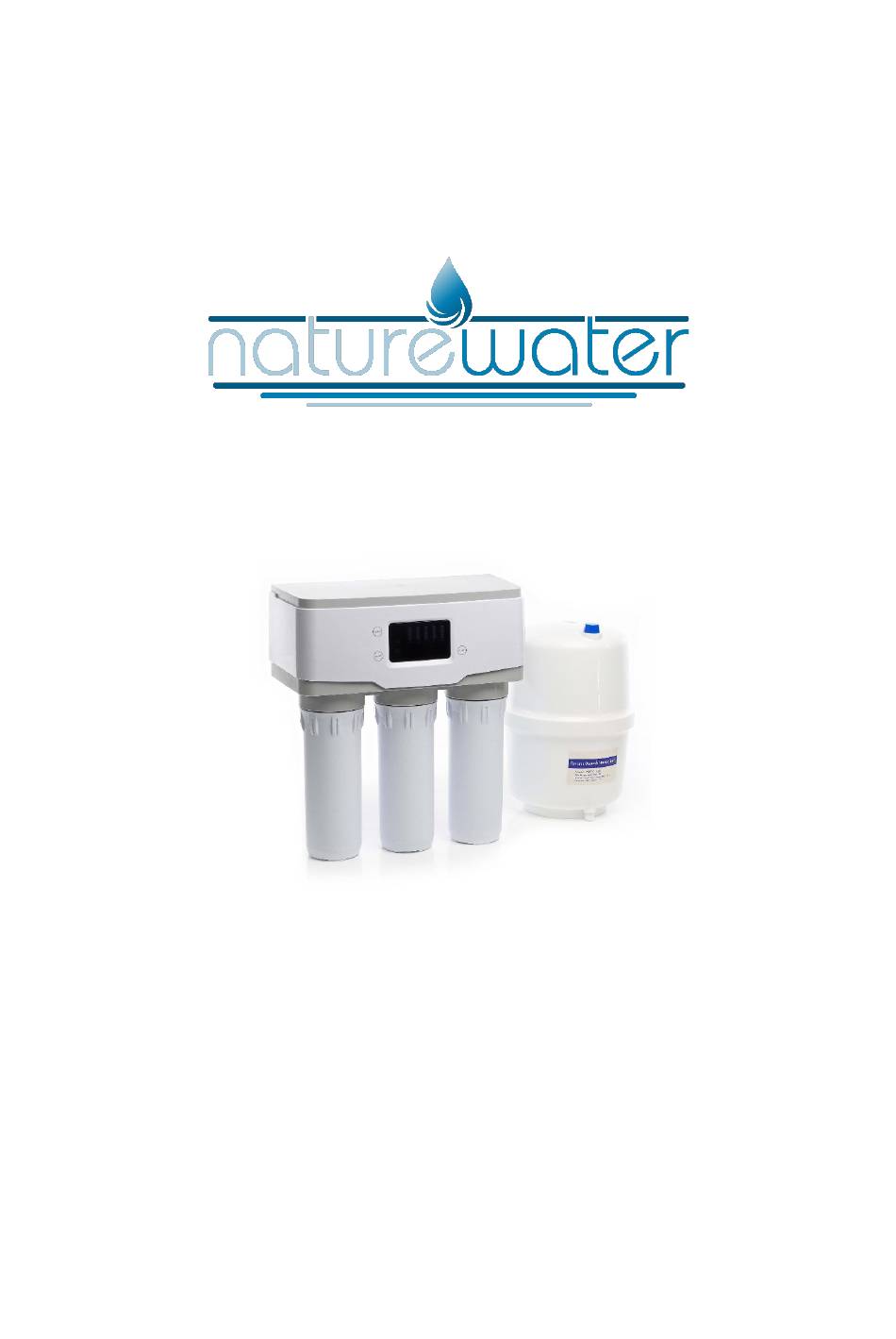

Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for NatureWater 64409
Summary of Contents for NatureWater 64409
- Page 1 Operating instructions 5-stage Reverse Osmosis System 64409, 64410, 6411 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further developments.
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler – Germany E-mail: service@wiltec.info Phone: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.naturewater.eu Item 64409–64411 Page 2 01 2025-1...
- Page 3 Reverse-osmosis system – 1 pc. Food-grade tubing – 4 pcs. (red, white, yellow, and blue) Tap – 1 pc. Accessories – pipe plugs, screws, T-piece, ball valve, feed-water valve Instruction manual – 1 pc. https://www.naturewater.eu Item 64409–64411 Page 3 01 2025-1...
- Page 4 UV steriliser (optional): removes bacteria and micro-organisms from water. Far-infrared cartridge (optional): emits far infrared rays to regulate the mineral content of water. Mineral stone cartridge (optional): regulates the minerals in the water. https://www.naturewater.eu Item 64409–64411 Page 4 01 2025-1...
- Page 5 Ball valve for water inlet Booster pump Flush valve (manual) Reverse-osmosis mem- Low-pressure switch High-pressure switch brane PP sediment filter Check valve Ball valve for water tank Carbon granulate filter 10 Automatic shut-off valve Pressure vessel https://www.naturewater.eu Item 64409–64411 Page 5 01 2025-1...
- Page 6 Ball valve for water inlet Carbon block filter Low-pressure switch Booster pump High-pressure switch Reverse-osmosis mem- Inlet solenoid valve Ball valve for water tank brane PP sediment filter 10 Check valve Pressure vessel https://www.naturewater.eu Item 64409–64411 Page 6 01 2025-1...
- Page 7 Tools and components required for commissioning № Part № Part Knife Housing wrench Electric drill machine Water pipe Sealing tape Clamp Hammer Tap holder Open-ended spanner Reverse-osmosis membrane Scissors Operating instructions Water faucet Feedwater valve and T-piece https://www.naturewater.eu Item 64409–64411 Page 7 01 2025-1...
- Page 8 • When selecting the installation site, make sure that access to the cold water pipe is available, that the socket is easily accessible, and that there is sufficient space for changing the filter. https://www.naturewater.eu Item 64409–64411 Page 8 01 2025-1...
- Page 9 Fix the blue pure-water line to the underside of the water faucet, then connect the line to the device. Attention! Check that the hoses are connected correctly according to the connection diagram at the beginning of the section. https://www.naturewater.eu Item 64409–64411 Page 9 01 2025-1...
-
Page 10: Pressure Vessel
Install the T piece and the feedwater valve according to the illustration. • Wrap the thread of the feedwater valve and the T-piece with sealing tape. • Connect the white feedwater hose from the unit to the feedwater valve. https://www.naturewater.eu Item 64409–64411 Page 10 01 2025-1... - Page 11 “FLUSH” symbol for three seconds. The symbol continues to flash during the process. If you wish to end the flushing process early, press “FLUSH” again. Insufficient feedwater When the low-pressure switch is activated, the “LACK” symbol flashes, and the device emits a beep ten times. https://www.naturewater.eu Item 64409–64411 Page 11 01 2025-1...
- Page 12 When the tap is turned off, the device switches off automatically. After use, the system is automatically flushed if it is equipped with the appropriate flushing function. https://www.naturewater.eu Item 64409–64411 Page 12 01 2025-1...
- Page 13 If the unit has been switched off and is not used for a long period of time, perform the same flushing procedure as for the initial start-up. Electrical diagram № Part № Part Adaptor Booster pump Low-pressure switch Solenoid valve for inlet High-pressure switch Solenoid valve for automatic flushing https://www.naturewater.eu Item 64409–64411 Page 13 01 2025-1...
-
Page 14: Troubleshooting
The machine does not stop or re- Standard pressure of high-pressure Replace or repair high pressure start after the tank is full switch too high or high-pressure switch. switch damaged Solenoid valve damaged Replace non-return valve. https://www.naturewater.eu Item 64409–64411 Page 14 01 2025-1... - Page 15 WilTec Wildanger Technik GmbH Königsbenden 12 / 28 52249 Eschweiler Germany Important note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.naturewater.eu Item 64409–64411 Page 15 01 2025-1...
