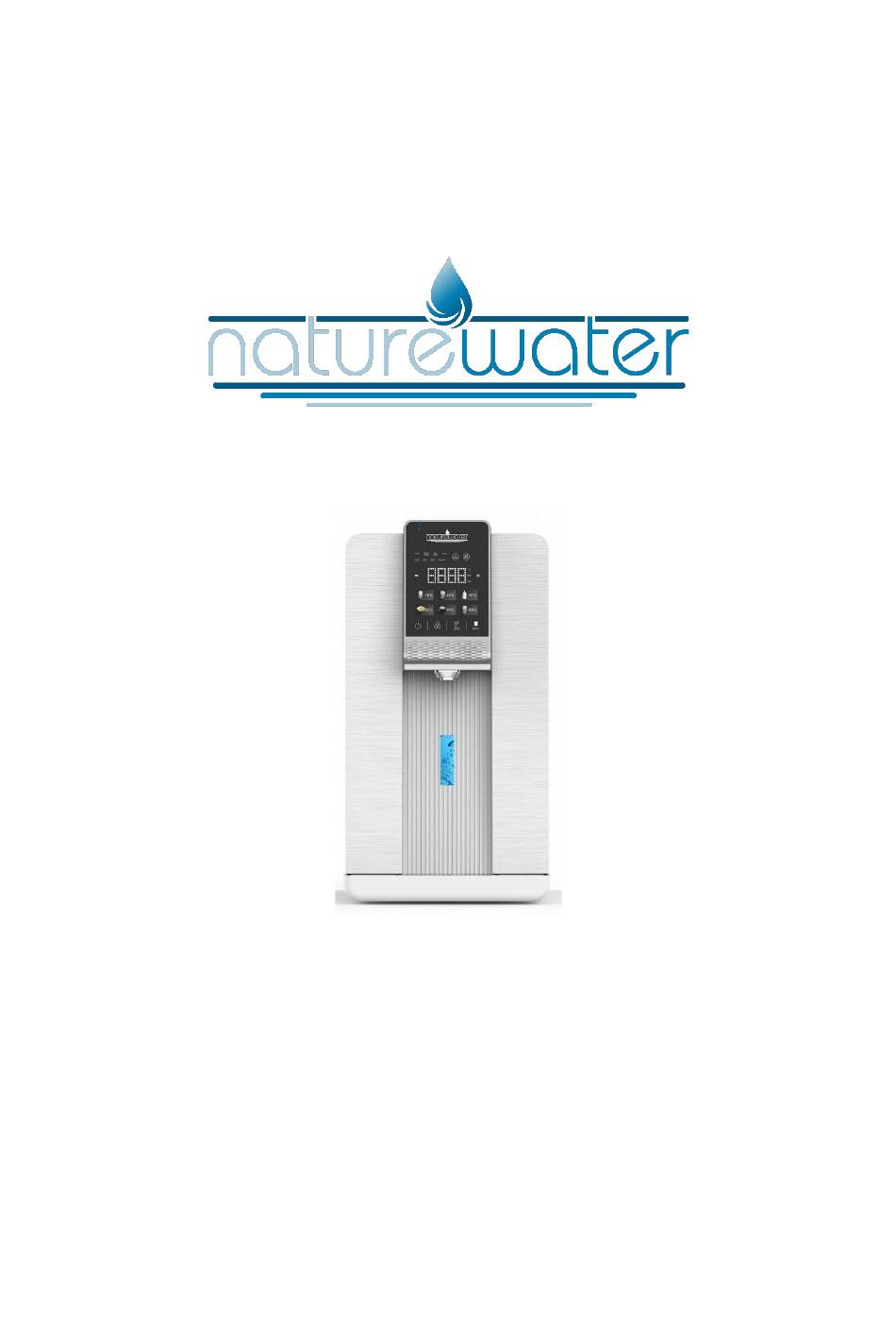

Operation Manual
Water Purifier NW-1000 Pro
63453
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for NatureWater NW-1000 Pro
Summary of Contents for NatureWater NW-1000 Pro
- Page 1 Operation Manual Water Purifier NW-1000 Pro 63453 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
- Page 2 To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods. Returns Department WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.naturewater.eu Item 63453 Page 2 03 2023-1...
- Page 3 Always observe the cleaning intervals and the regular replacement of the filter element. • If the unit is not used for more than 3 days, bacteria can form. Flush the system for at least 5 min before using the unit again as usual. https://www.naturewater.eu Item 63453 Page 3 03 2023-1...
- Page 4 If the raw water does not meet the standard of municipal tap water (including excessive sludge content and TDS), the life of the filter element may be shortened. Technical Data Item model NW-1000 PRO Power supply 220 V / 50 Hz Rated power (W)
-
Page 5: Control Panel
To reset the filter element, press and hold the “Reset” button for 3 s, then briefly press the “Reset” button to select the filter element. The number of the selected filter element flashes. To reset, press and hold the “Reset” button for 3 s. https://www.naturewater.eu Item 63453 Page 5... - Page 6 Place the unit on a table, cabinet, or flat surface. Step 2 Remove the water tank and add tap water to the highest MAX water level. Then put the tank back on the machine and close the tank cover. https://www.naturewater.eu Item 63453 Page 6 03 2023-1...
- Page 7 After the cleaning process, the water tank should be emptied and filled with tap water again. The water conditioner will automatically start producing water. After the water production is complete, it can be used normally. https://www.naturewater.eu Item 63453 Page 7...
- Page 8 Press “15℃,” “25℃,” “45℃,”and other buttons to directly obtain 1000 mℓ water. Press the “lock” button to unlock. 2. Press the “80℃,” “90℃,” “100℃,” and other buttons to directly dispense 1000 mℓ of water. https://www.naturewater.eu Item 63453 Page 8 03 2023-1...
- Page 9 While the dispenser is in operation, you can press the cold water button for 5 s to switch off the cooling function. If you press the cooling function again for 5 s, the cooling function is switched on (only applies to appliances with cooling function). https://www.naturewater.eu Item 63453 Page 9...
- Page 10 Disconnect the power supply and remove the old filter element. Press the button to open the top cover of the appliance automatically. 2. turn the filter element anticlockwise and take it out upwards. https://www.naturewater.eu Item 63453 Page 10 03 2023-1...
- Page 11 Unit cannot heat up Check that the device is switched on. 2. The thermostat protection on the radiator cannot be reset. Device does not cool down Cooling function has not been activated. https://www.naturewater.eu Item 63453 Page 11 03 2023-1...
- Page 12 Connection diagram № Name Float Raw water tank Composite filter element Self-priming pump Reverse osmosis membrane filter element Rear-mounted carbon rod filter element TDS probe Pure water tank High-low float Cooling https://www.naturewater.eu Item 63453 Page 12 03 2023-1...
- Page 13 24 V power adapter Main control panel Mainboard of integrated body Fuse Heating module Temperature controller (automatic reset) Heater Electronic refrigeration module Enrichment module Lighting panel Water pump Float Flushing solenoid valve Self-priming pump UV lamp https://www.naturewater.eu Item 63453 Page 13 03 2023-1...
- Page 14 Raw water tank proximity switch Inlet water NTC Outlet water NTC Water change proximity switch Water pump https://www.naturewater.eu Item 63453 Page 14 03 2023-1...
- Page 15 Königsbenden 12 / 28 D-52249 Eschweiler Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. https://www.naturewater.eu Item 63453 Page 15 03 2023-1...
