Page 1

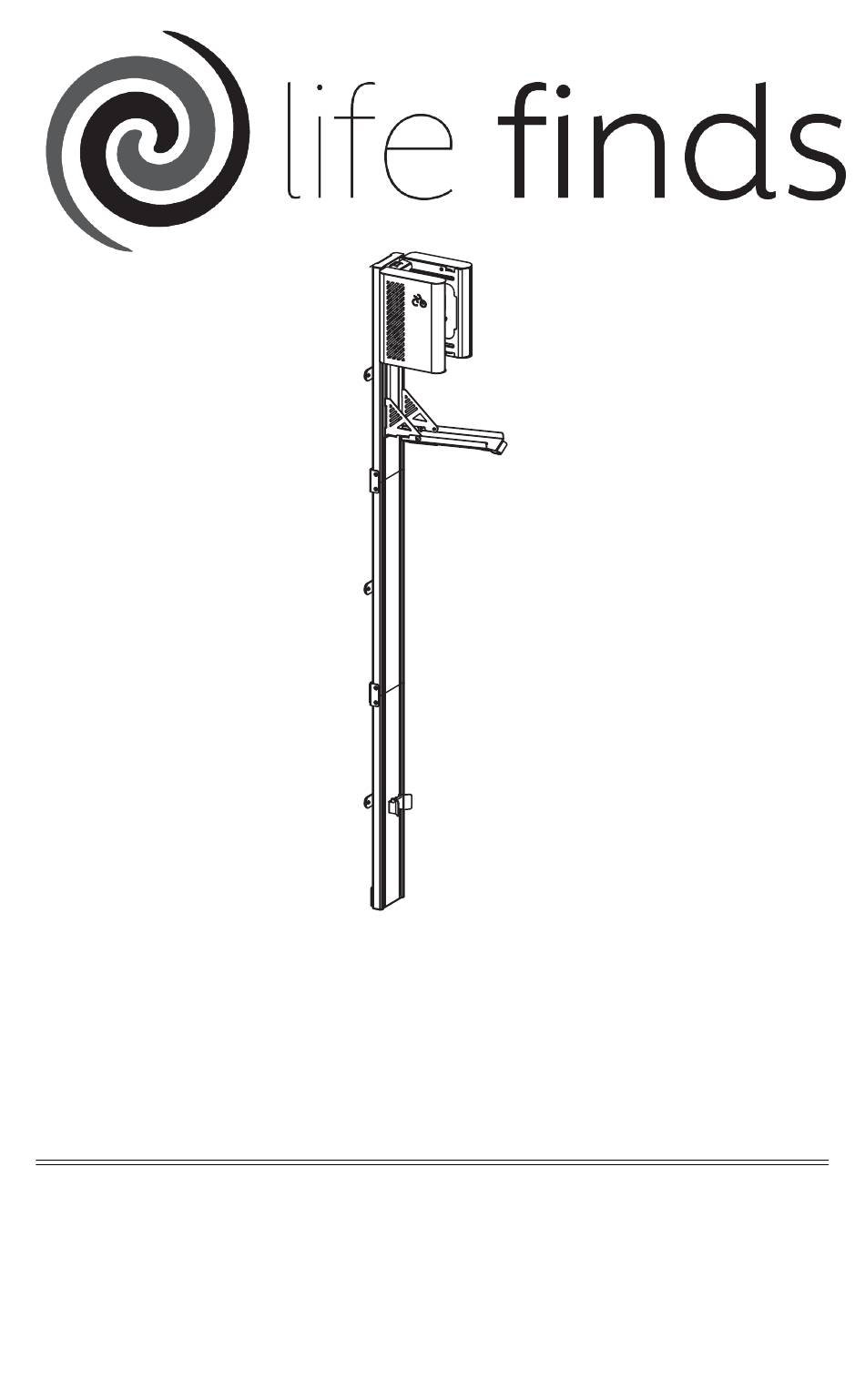

Vertical Wall Mounted Bike Rack with Mechanical Lift LF-EBR1 Assembly Manual...
Page 2
WARNING If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 ex. 1 or help@life-finds.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
Package Contents B (x1) A (x1) Middle Railing Top Railing C (x1) D (x1) E (x3) Bottom Railing Tire Rest Mounting Bracket F (x3) G (x4) H (x6) I (x6) Wall Bracket Rail Connector Screw Cap Included Hardware & Tools S-A (x26) S-B (x6) W-A (x3)
Assembly Steps STEP 1 Attach the Top Railing (A), Middle Railing (B) and Bottom Railing (C) together using Rail Connectors (G) and M5x6mm Flathead Screws (S-A). Tighten using a Phillips screwdriver. Differentiating Middle and Bottom Railings Middle Railing (B) Bottom Railing (C) Has no holes Has four holes on the front...
Page 5
STEP 2 Attach Mounting Brackets (E) to the back of railings using M5x6mm Flathead Screws (S-A) and a Phillips screwdriver. Ensure the screws are installed into the Inset side of bracket holes. Inset Hole STEP 3 Attach Tire Rest (D) to the Bottom railing (C) M5x6mm Flathead Screws (S-A) and a Phillips screwdriver.
STEP 4 Option 1: Wood Stud Installation Turn to Page 9 for Concrete Installation Use a stud finder to find the stud of the desired location. Line up the center of the railing with the stud and mark locations through Mounting Brackets (E) using a pencil. Use of a level is recommended.
Page 7
Option 1 - Cont’d Line up the outer holes on a Wall Bracket (F) with each pair of marked locations and mark the center locations. tions Pre-Drilling Instruc Drill mounting holes into the center locations using the illustration shown Drill Bit: 9/64”...
Page 8
Option 1 - Cont’d Apply Pads Attach Bike Rack Remove adhesive backing from Pads Attach the Bike Rack to the Wall Brackets (F) (H) and double stack them to the back using M5x6mm Roundhead Screws (S-B) and bottom corners of Bottom Railing (C). a Phillips screwdriver.
Option 2: Concrete Installation Line up the railings with the desired location and mark drilling locations using a pencil. Use of a level is recommended. Ensure Bottom Railing is touching the ground.
Page 10
Option 2 - Cont’d tions Pre-Drilling Instruc Drill mounting holes into the center locations using the illustration shown Drill Bit: 3/8” (10mm) Hole Depth: 2.4” (60mm) Remove adhesive backing from two Pads (H) and apply to the back of Bottom Railing (C) on the bottom corners.
Page 11
Option 2 - Cont’d Press Concrete Anchors (W-C) into the drilled holes. Attach Bike Rack to the wall using ST6.3x60mm Screws (W-B) and a Phillips screwdriver. Place Screw Caps (I) over the screw heads.
Page 12
STEP 5 Fold down the Tire Support and slide down the Slider by pushing from the top. Slider Tire Support Pressure Plate DO NOT touch this plate with your hands or any object other than KEEP BODY PARTS AWAY the tire! FROM PRESSURE PLATE NEVER use your hands, feet or any body part to engage the latching...
Page 13
Storing Bike Wheel the bike into the Pressure Plate to engage the Clamp. Once the Clamp is fully secured around the tire, use two hands to roll the front wheel up the rack. AVOID CLAMPING TIRE COMPONENTS When wheeling the bike into the Clamp, ensure any key components attached to the front tire such as reflectors and air valves are kept away from the Clamp.
Page 14
Removing Bike Use two hands to roll the bike down the wall and out of the Slider. Slider...
Page 15
[ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
Page 16
LAST UPDATED: 11/22/2024 REV1 v1.0 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Give Us a Call help@life-finds.com 309-278-5303 ext. 1...
