CONDOR
STOP! WARNING: READ THIS FIRST!
First Read and Understand the Instruction manual and product labels for important safety, set-up and troubleshooting information. If you have problems setting up or using the CONDOR® Chopper Chock,
contact customer service @ 1-815-754-7418 or contact us via e-mail @ www.condor-lift.com. The CONDOR® Chopper Chock is not intended for use by children.
:
Assembly Instructions
Remove all parts from shipping box. Check the parts below to make sure you have all the parts needed to assemble your CONDOR® Chopper Chock before beginning.
In the unlikely event that you find a part damaged or missing, please call customer service @ 815-754-7418.
User Instructions:
Confirm that there is adequate spacing between the tire and fender to allow cradle to pass between the fender and tire. Confirm that the cradle is set in the optimized position setting (See RECOMMENDED
CRADLE SETTINGS) for the entering tire and wheel. Adjustment of cradle is crucial for optimum retention. Optimum retention is achieved by trying different settings. (REFER TO CAUTION
PARAGRAPH BELOW) Place unit in front of or behind the motorcycle. Push or drive the motorcycle, centered into unit until the cradle of the Pit-Stop has fully engaged the wheel. Once the wheel is
cradled, proceed to push further into the Pit-Stop until the wheel has engaged the front stop. If the optimum vertical support is achieved, the motorcycle will hold itself upright. If optimum retention is not
achieved try different cradle settings. (REFER TO CAUTION PARAGRAPH BELOW)
For more information on use, refer to
www.condor-lift.com
®
CHOPPER CHOCK USER INSTRUCTION MANUAL

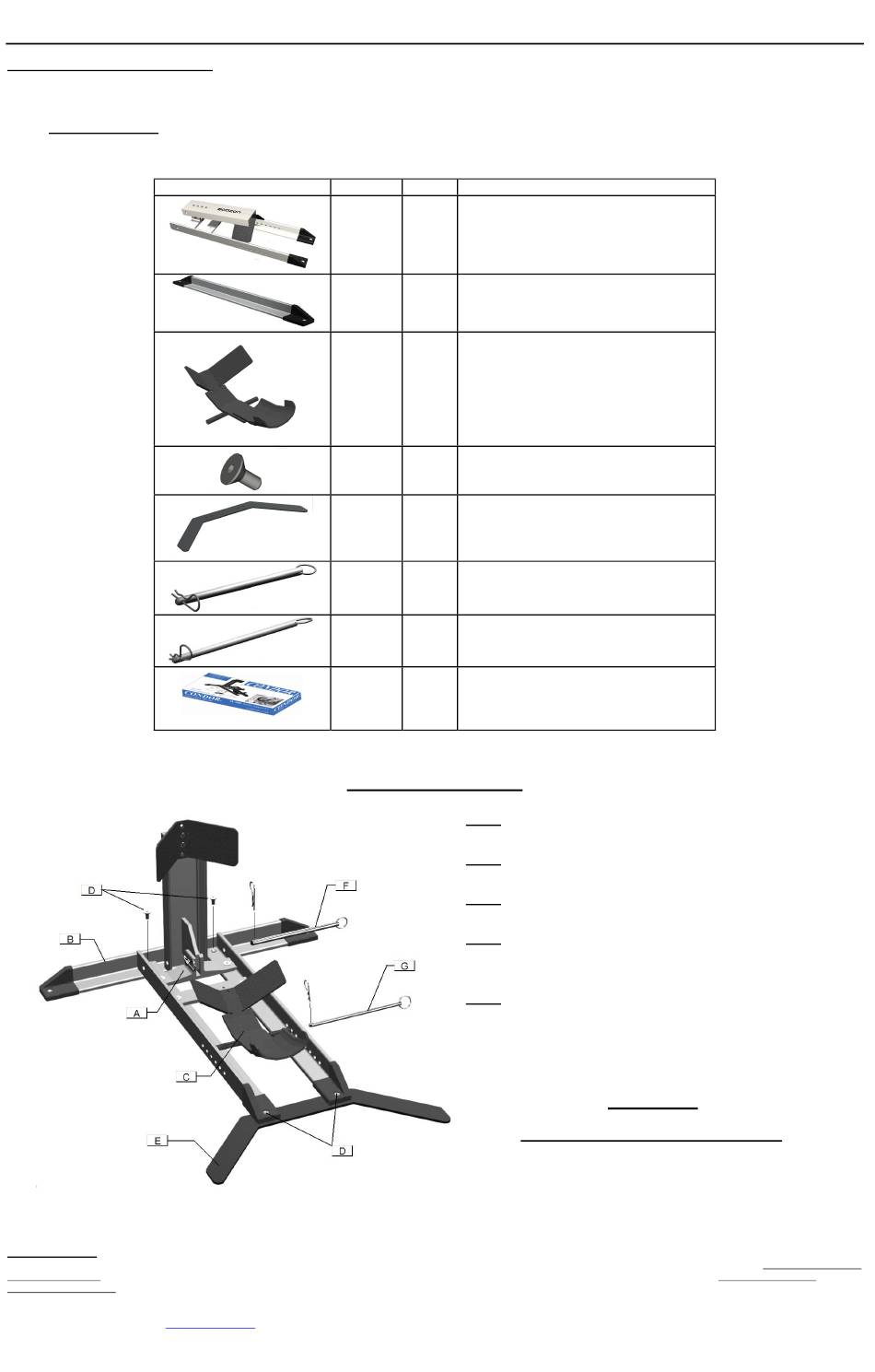

Parts
Key
Qty.
A
1
B
1
CONDOR® Front Base Support Bar
CONDOR® Maximum Retention Chopper
C
1
(CHCKCRAD-90, CHCKCRAD-120)
5/16" - 18 x 3/4" Flat Head Socket Cap Screw
D
4
CONDOR® Boomerang Rear Support Bar
E
1
1/2" x 10" Front Stop Pin w/ Hitch Pin Clip 11
F
1
3/8" x 10" Cradle Pin w/ Hitch Pin Clip 16
G
1
CONDOR® Trailer Adaptor Kit
H
1
Assembly Illustration:
Step1: Using screws (D), attach the Base Bar (B) to the main unit (A).
(3/16 hex key required, torque between16 - 18 ft-lbs)
Step2: Using Screws (D), attach the Boomerang (E) to the Main Unit (A).
(3/16 hex key required, torque between 16 - 18 ft-lbs)
Step3: Swing the Front Stop containing the CONDOR® Logo into
position.
Step4: Place Pin (F) through Main Unit and Front Stop Channel. If the
pin is tight at first use, push it through using light force and twist it in.
(Attach Hitch Pin Clip once the pin has passed all the way through.)
Step5: Place Cradle (C) as shown in the desired setting and insert Pin
(G) through Main unit and cradle pipe.
(Attach Hitch Pin Clip once the pin has passed all the way through.)
Description
CONDOR® Main Unit
Cradle
(P-94254)
(SC-VSTRIP-C)
(Z118)
(Z101)
(TK-3000)
Warning:
Only use unit when properly assembled
.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Chopper Chock and is the answer not in the manual?

Questions and answers

Summary of Contents for Condor Chopper Chock

  • Page 1 STOP! WARNING: READ THIS FIRST! First Read and Understand the Instruction manual and product labels for important safety, set-up and troubleshooting information. If you have problems setting up or using the CONDOR® Chopper Chock, contact customer service @ 1-815-754-7418 or contact us via e-mail @ www.condor-lift.com. The CONDOR® Chopper Chock is not intended for use by children.
  • Page 2 One Year Limited Warranty: This CONDOR® Chopper Chock product warranty extends to the original consumer purchaser of the product. All illustrations and specifications contained in this manual are based on the latest product information available at the time of printing. Technical Components Development & Design, Inc. reserves the right to make changes at any time, without notice, in color, materials, equipment, options, specifications and models.
