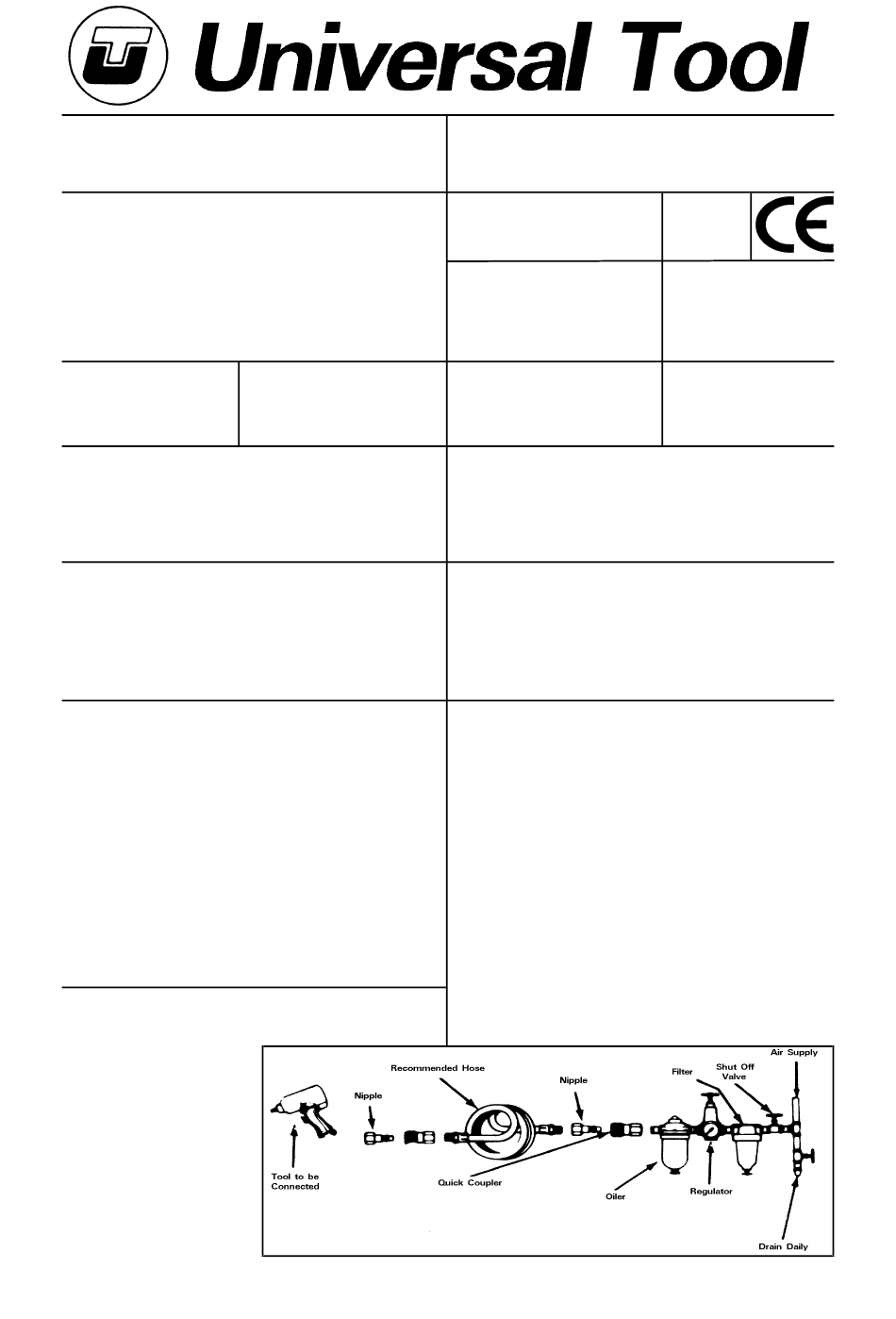

Universal Tool UT8777C Operator Instructions

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
1.377 lbs
0.626
Kg
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Foreseen Use Of The Tool
This die grinder is primarily designed for use with bonded abrasive
mounted point grinding wheels. It may also be used with steel rotary
files and carbide burrs provided their speed rating matches the speed
of the grinder.
This tool should not be fitted with cutting off wheels, saw blades, drill
bits, etc. If there is any doubt about the correct use of this product
contact your supplier for advice.
Also make sure that the shank size of the attachment to be driven
matches with the collet size fitted in the grinder and that the
maximum allowed running speed of the attachment exceeds that
marked on the grinder.
There are special rules governing the use of bonded abrasive
mounted point grinding wheels - for details see section "Operating".
Work Stations
The tool should only be used as a
handheld hand operated tool. It is
always recommended that the
tool is used when standing on the
solid floor. It can be used in other
positions but before any such
use, the operator must be in a
secure position having a firm grip
and footing and be aware of the
extra safety precautions that must
be observed when using Grinding
Machines.
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
6.3 bar 90 PSI
n/a bar n/a PSI
7 bar 100 PSI
Yes
Yes
Yes
Yes
Page No 1
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type
Right Angle Die Grinder
(6mm Collet)
Model No/Nos
UT8777C
Recommended Hose Bore
Size - Minimum
3/8 10
Ins M/M
Noise Level Sound Pressure Level 80.0 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Less than 2.5 Metres / Sec²
Vibration Level
Test Method Tested in accordance with ISO
standard 8662/1 & 8662/13
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured air pressure
at the tool of 90 p.s.i./6.3 bar when the tool is running with the
lever/trigger fully depressed. Use recommended hose size and
length. It is recommended that the tool is connected to the air supply
as shown in figure 1. Do not connect the tool to the air line system
without incorporating an easy to reach and operate air shut off valve.
The air supply should be lubricated. It is strongly recommended that
an air filter, regulator, lubricator (FRL) is used as shown in Figure 1 as
this will supply clean, lubricated air at the correct pressure to the tool.
Details of such equipment can be obtained from your supplier. If such
equipment is not used then the tool should be lubricated by shutting
off the air supply to the tool, depressurising the line by pressing the
lever/trigger on the tool. Disconnect the air line and pour into the
intake bushing a teaspoonful (5ml) of a suitable pneumatic motor
lubricating oil preferably incorporating a rust inhibitor. Reconnect tool
to air supply and run tool slowly for a few seconds to allow air to
RPM
25000
Cycles Per Min
Serial No (if any)
Recommended Max.
Hose Length
30 10
Ft M
