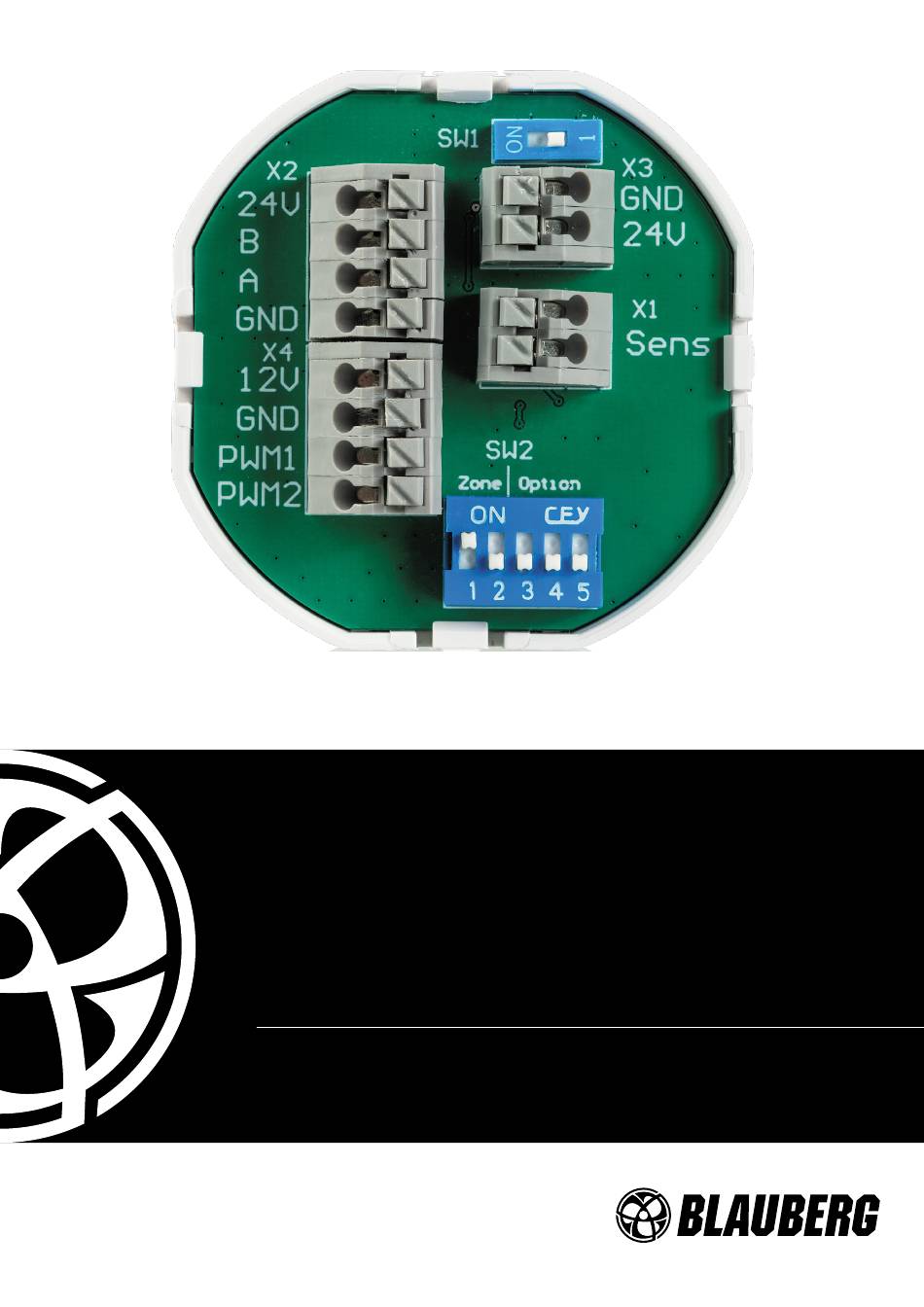

- Page 1 Vento eco control system ct1 Vento eco USER'S MANUAL...
-
Page 2: Table Of Contents
CT1 Vento Eco www.blaubergventilatoren.de CONTENTS Safety requirements ..................................3 Purpose ........................................ 4 Delivery set ......................................4 Technical data ....................................4 Installation and connection ..............................5 Storage and transportation regulations .......................... 13 Manufacturer's warranty ................................14 Certificate of acceptance ................................15 Seller information .................................. -
Page 3: Safety Requirements
www.blaubergventilatoren.de SAFETY REQUIREMENTS This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit. -
Page 4: Purpose
CT1 Vento Eco www.blaubergventilatoren.de PURPOSE Vento Eco The CT1 Vento Eco controller is designed to be used as a part of the domestic air handling unit control system. CT1 Vento Eco is a component part and is not designed for stand-alone operation. The unit is rated for continuous operation. -
Page 5: Installation And Connection
www.blaubergventilatoren.de INSTALLATION AND CONNECTION CHECK THAT THE UNIT IS DISCONNECTED FROM POWER SUPPLY PRIOR TO ANY OPERATIONS! DO NOT LAY THE CABLE IN CLOSE PROXIMITY TO THE CONTROL PANEL CABLE! WHILE ROUTING THE CONTROL PANEL CABLE DO NOT COIL THE EXTRA LENGTH. Overview of the control system All elements of the control system are installed in flush-mounted boxes in wall niches and are connected to each other by fixed wiring cables laid in the walls of the building. - Page 6 CT1 Vento Eco www.blaubergventilatoren.de Selection of the ventilation system power supply circuit The power supply of the control system devices can be organized in several ways. The schematic diagrams of these power supply options are shown below. Using a single power supply unit when its power is sufficient to power one controller with ventilators and control panel connected to it. SE1 / SE2 1 / 2 AC 230 V,...
- Page 7 www.blaubergventilatoren.de Using a separate power supply for each controller with the connected fans and a separate power supply for the control panel. SE1 / SE2 1 / 2 AC 230 V, AC 230 V, PS 220/24-20 50 Hz PS 220/24-20 50 Hz +24V +24V...
- Page 8 CT1 Vento Eco www.blaubergventilatoren.de Connecting ventilators to the CT1 Vento Eco controller. Vento Eco ventilators are connected to the controller according to the wiring diagram with branching for the desired number of ventilators. The connection is made through an additional junction box, in which the power and control lines are branched for each ventilator.
- Page 9 www.blaubergventilatoren.de For coordinated ventilation, it is necessary to ensure that equal volumes of air are supplied into and exhausted from the room. To achieve this, use an even number of ventilators in the same room and connect them so that one half of them always works to supply air and the other half to extract air.
- Page 10 CT1 Vento Eco www.blaubergventilatoren.de Installation sequence Prepare niches in the wall for the flush junction boxes. Route the wires between the niches based on your control system's wiring diagram. Fixed wiring must be routed in the building's walls. Install crimping lugs on the ends of the wires. The overall dimensions and installation method of the control panels SE1 Vento Eco and SE2 Vento Eco are described in the respective user manuals.
- Page 11 www.blaubergventilatoren.de Set up the controller using the DIP switches (see the section Setting up the controller via a DIP switch for a description). 1 2 3 4 5 Connect the cables to the controller terminals according to the labels on the board. Place the cables in the junction box, then put the controller inside with the terminals facing in.
- Page 12 CT1 Vento Eco www.blaubergventilatoren.de Setting up the controller with DIP switch SW2 Switches 1, 2 are used to select the control zone, in which the controller is used. 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 Control zone 1 Control zone 2...
-
Page 13: Troubleshooting
www.blaubergventilatoren.de Switching on the terminal resistor with DIP switch SW1 The termination resister is ON* * Turn on the termination resistor if the controller is connected first or last in the RS-485 bus. TROUBLESHOOTING Trouble Possible reasons Troubleshooting Make sure the power supply units are connected Power supply units are offline. -
Page 14: Manufacturer's Warranty
CT1 Vento Eco www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 15: Certificate Of Acceptance
www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Vento Eco control system Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 16 www.blaubergventilatoren.de B127-6EN-01...
