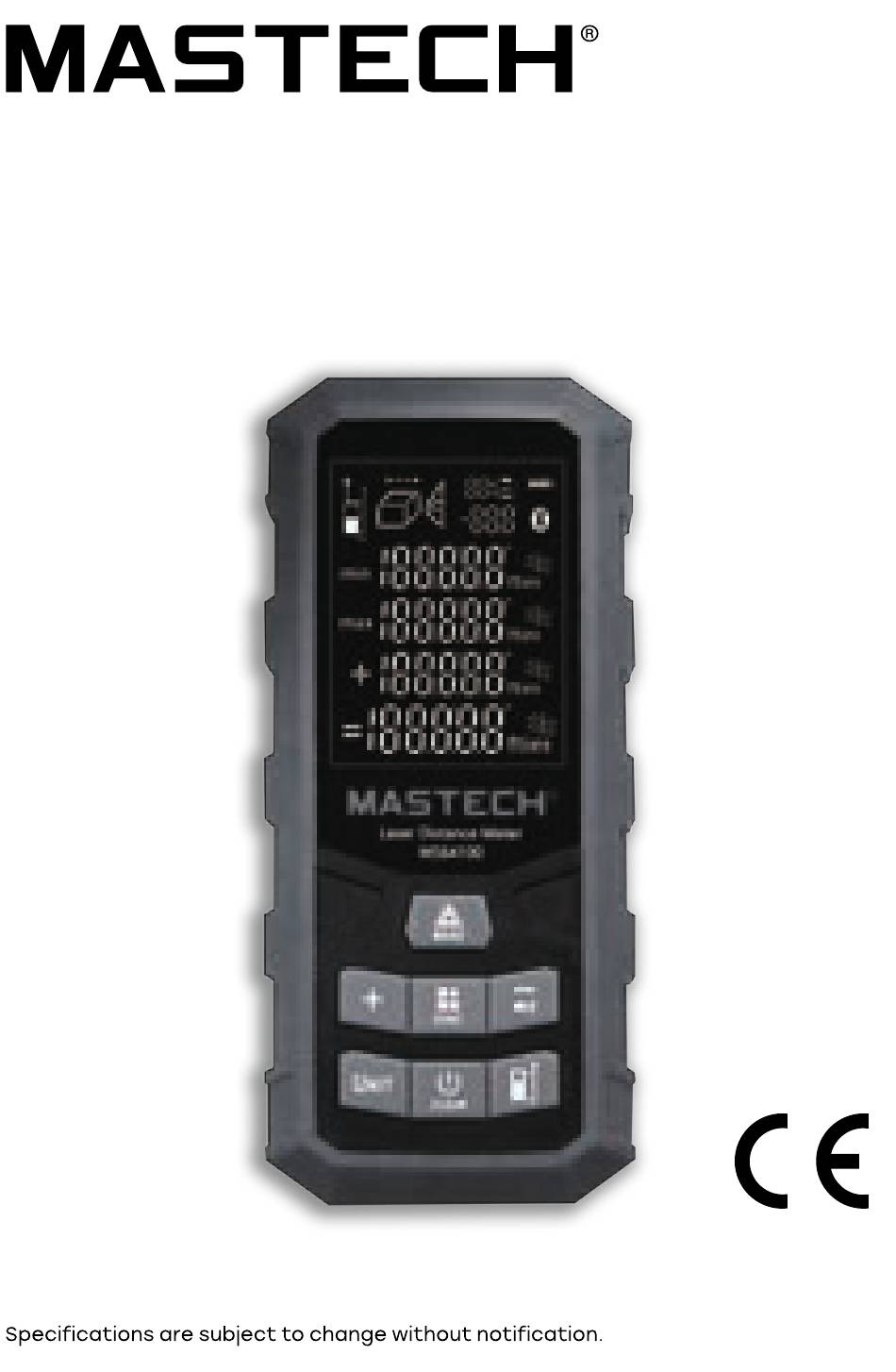

- Page 1 MS6406B/MS6408/MS6410B Laser Distance Meter User's Manual...
-
Page 2: Table Of Contents
User manual Thank you for purchasing our products. Please read the product manual and safety manual carefully before using this product. The responsible person should ensure that all users read and follow this manual. Contents 1.Safety manual-----------------------------------------2 2.Screen display icon introduction------------------3 3.Button function description-------------------------3 4.Start up -------------------------------------------------4 5.Instrument operation---------------------------------5... -
Page 3: Safety Manual
1.Safety manual Safety instructions 1、The digital laser rangefinder is a second-class laser product. When using this instrument at any time, do not look directly at the laser! 2、Do not use this product with other optical products to avoid serious laser radiation! 3、Do not destroy any safety warning signs on the instrument! Preface... -
Page 4: Screen Display Icon Introduction
Forbidden range 1、Turn on or repair the instrument by the user. 2、Expose the instrument directly to the sun. 3、Use outside the designated use range of the instrument. 4、Immerse the instrument in water. 5、Wipe the lens with an organic solvent. 6、Wipe the lens directly with your hands or other rough objects. -
Page 5: Start
4 Start up Battery installation A.Open the low-end battery cover. B.Insert 3 batteries according to the battery polarity mark at the end of the battery compartment C.Install the battery cover and close tightly. Pay Attention 1、Use the battery of the same manufacturer, otherwise the battery display will be inaccurate 2、Please do not use old and new batteries together. -
Page 6: Instrument Operation
5 Instrument operation Switch machine Short press to turn on the instrument, the backlight will light up, and it will automatically enter the single measure- ment mode Press and hold the key for 2 seconds to turn off the instrument. If there is no operation on the instrument within 30 seconds, the instrument will turn off the laser by itself;... -
Page 7: Measuring
interface for single measurement! When there is a calibration error (the screen displays ER108, please ensure that the error between the measured distance and the actual 1m during calibration is less than or equal to 9mm), perform the calibration again according to the above steps. After calibration, the error will be applied to all distance compen- sation. - Page 8 Figure D Pythagorean measurement Pythagorean measurement Single Pythagorean Measurement Without angle measurement Pythagorean subtraction measurement Addition and subtraction measurement Press the Add key to add. Short press the subtraction key to reduce the function. The current measurement value plus the next measurement value Current measurement value minus next measurement value Figure E...
- Page 9 The measurement data of the instrument is automatically stored (Figure F). 1)Query and recall stored data: In the initial state, Hold down the function key to enter the data query mode. 2)Tap + to view increased measurements. Tap Browse measurement decreases. 3) This product can store up to 99 sets of data.
-
Page 10: Technical Parameters
8 Technical Parameters Model Measuring range Measurement accuracy Display accuracy Laser class level 2 Laser power Area and volume measurement Indirect Pythagorean Theorem Measurement Addition and Subtraction Storage function Continuous measurement Maximum and minimum measurement Multi-line display Voice broadcast Dust and water splash rating Operating temperature range... -
Page 11: Error Code
When the measured object is a colorless liquid, clean glass, etc., the surface has a very transparent object, it may produce wrong measurements. When the measured object has very strong reflections, the laser light may be reflected off, which may also lead to erroneous measurement. When measuring non-reflective or very dark surfaces, it will increase the measurement time and may increase the measurement error.
