the benchmark for emc
Instruction
Manual

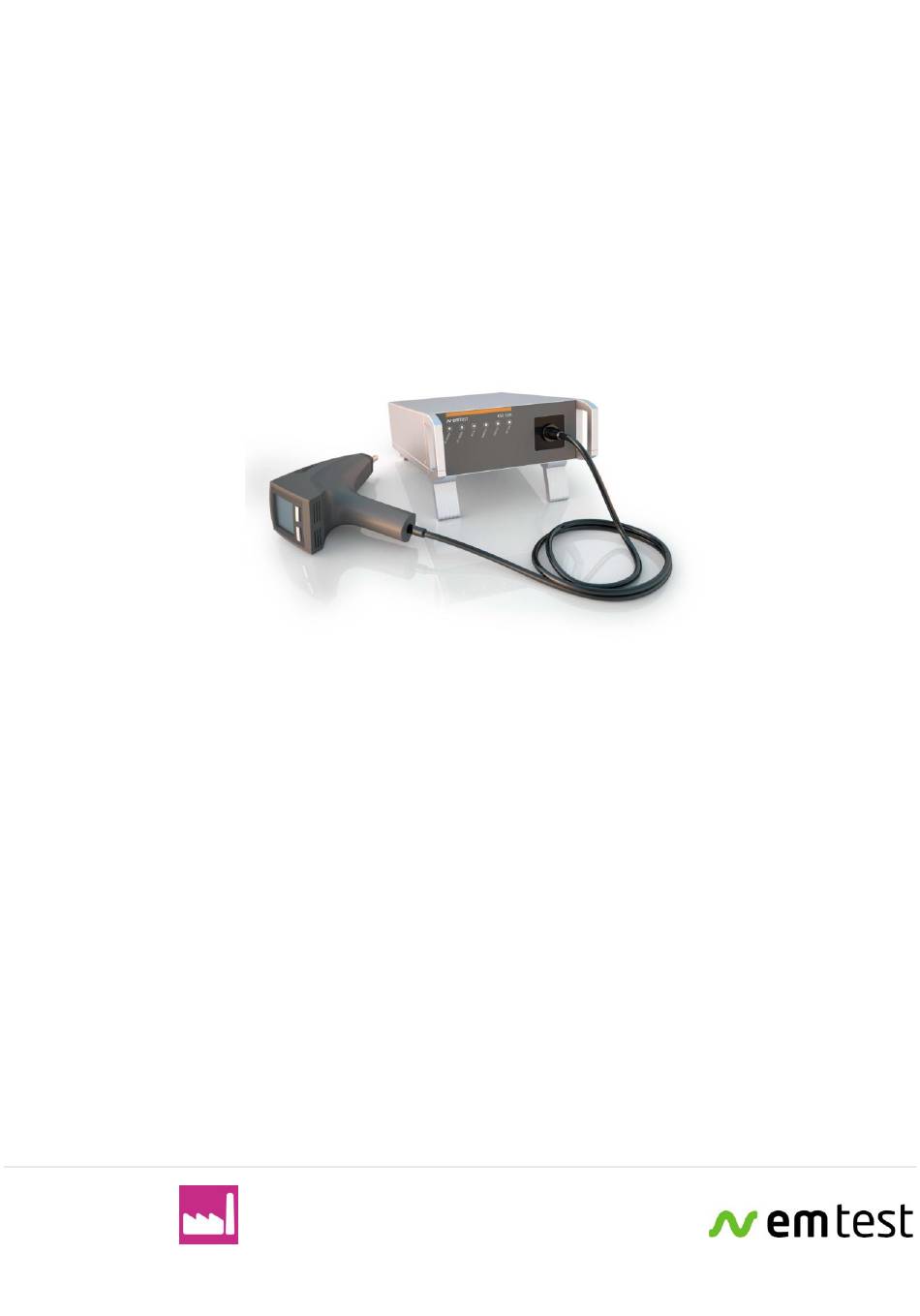

ESD 30N
Generator for simulation of
electrostatic discharges
Firmware Version 1.10
For testing electronic components for industrial and automotive
applications.
The ESD 30N Base unit includes the control and power parts for
the Discharge module P30N. Replaceable discharge modules
with different R/C networks as per IEC 61000-4-2,
ISO 10605, MIL and other standards are available.
Version: 1.04 / 09.04.2010
Replaces: 1.03 / 06.10.2009
Filename: Manual ESD30N v104.doc
Printdate: 09.04.10
IEC 61000-4-2
EN 61000-4-2
EN 50082
EN 61000-6
ISO 7637 / DIN 40839
ISO 10605
Manufacturer as per
GM, Ford, Chrysler,
Mercedes BMW, VW,
PSA, Renault, Fiat
Advertisement
Related Manuals for EM TEST ESD 30N
Summary of Contents for EM TEST ESD 30N
- Page 1 For testing electronic components for industrial and automotive EN 61000-4-2 applications. EN 50082 The ESD 30N Base unit includes the control and power parts for EN 61000-6 the Discharge module P30N. Replaceable discharge modules ISO 7637 / DIN 40839 with different R/C networks as per IEC 61000-4-2, ...
- Page 2 Phone : +41 61 717 91 91 Fax : +41 61 717 91 99 URL : http://www.emtest.com Copyright © 2010 EM Test AG . All right reserved. Information in earlier versions. Specifications subject to change User manual V 1.03 2 / 44...
-
Page 3: Table Of Contents
ESD test setup as per IEC 61000-4-2 ...................... 9 2.1. Test setup ..............................9 2.2. Parts and Connections of ESD 30N / P 30N ................... 10 2.3. Parts and functions ..........................10 Operation and functions ........................12 ESD 30N – Base unit ..........................12 3.1. - Page 4 Calibration and Verification ........................36 7.2.1. Factory calibration ........................... 36 7.2.2. Guideline to determine the calibration period of EM Test instrumentation ..........36 7.2.3. Calibration of Accessories made by passive components only .............. 36 7.2.4. Periodically In-house verification ......................36 7.3.
-
Page 5: Safety
EM Test ESD 30N Safety 1.1. General Read the following operations manual carefully. Pay special attention to both safety and operation details!!! Observe all of these precautions to ensure your personal safety and to prevent damage to the test equipment of our product range. -
Page 6: Before Use
The user is not allowed to independently change or modify any EM TEST generator. For service and repair, only original EM TEST parts and components must be used. EM TEST is not responsible for any accident or injury incurred through the use of other parts or components. -
Page 7: Failures And Over Stressing
EM Test ESD 30N 1.4. Failures and Over stressing If it is assumed that a safe operating mode of the equipment is no longer possible, the mains connection must be removed and the equipment secured from unintentional use. An unsafe operating mode is characterized as follows: - the equipment shows recognizable damages;... -
Page 8: Discharge Modules And Grounding Of P30N
EM Test ESD 30N 1.5.2. Discharge Modules and Grounding of P30N - A discharge module includes capacitors as required in the related standard. The user must take into account that a capacitor is still charged. The charged energy is so low that there is no danger to life. The energy is lower as required in standard IEC 61010. -
Page 9: Esd Test Setup As Per Iec 61000-4-2
EM Test ESD 30N ESD test setup as per IEC 61000-4-2 2.1. Test setup A correct test set-up is very important for a reproducible test procedure, especially for ESD testing. The correct test set-up as specified in the standard is mandatory. Some of the most important points are the following: 1. -
Page 10: Parts And Connections Of Esd 30N / P 30N
EM Test ESD 30N 2.2. Parts and Connections of ESD 30N / P 30N Parts 1 ESD30N base unit 2 Operation mode indicators 3 HV cable plug-in 4 P30N discharge unit 5 Display & operation panel 6 Discharge Module 7 Ground connection 8 Discharge Tip 9 HV &... - Page 11 EM Test ESD 30N ESD 30N base unit Front panel status display Front panel High Voltage plug-in esd.control Software for up/down load procedures, remote control of ESD30N, test reports Interface cable: - USB interface cable - Adapter Type IFA opto link RS232 ( optional)
-
Page 12: Operation And Functions
ESD 30N Operation and functions ESD 30N – Base unit 3.1. The ESD 30N base unit includes all main control functions of the ESD simulator system. This is the general power supply unit for ac and dc mains supply ... -
Page 13: P30N - Discharge Unit
P30N is operated with the help of an easy to use menu structure. The operating is based on 2 function keys, a digital turn wheel with key function and the Trigger button. 3.2.2 The Start Display Standby Mode After power on the base equipment the Display shows the letter ESD 30N without backlighting. After pressing any key: ESD 30N Activate P30N - Press 2s the Triggerbutton. -
Page 14: Menu Structure
EM Test ESD 30N 3.3. Menu structure The following menus can be selected Standard Test Routines The user can call up the standard routines with fixed test levels and start immediately. The test levels can be modified. Quick Start Easy and fast operation of the generator without special functions. -
Page 15: The Trigger Button
EM Test ESD 30N 3.3.1. The Trigger Button The following functions are activated with the Trigger button: To switch ON Press the Trigger button once for about 2s To switch OFF Press the Trigger button for another 2s To release... -
Page 16: General Information For All Menus
EM Test ESD 30N 3.3.4. General information for all menus Acoustic signals Single-beep - Warning in Evaluation mode if the output voltage is < 50% of the setting voltage. Double- A double beep always indicates warnings or failures. beep MODULE MISSING... - Page 17 EM Test ESD 30N Operating modes Mode AD : Air Discharge CD : Contact discharge Change Mode by changing the discharge tip; round tip for AD and sharp tip for CD Trigger Single : Single discharge after pressing the Trigger button.
-
Page 18: The Bleeding Function
EM Test ESD 30N 3.4. The Bleeding Function Ungrounded equipment, or ungrounded parts of equipment, cannot discharge itself. If the charge is not removed before the next ESD pulse is applied, it is possible that the EUT is stressed up to twice the intended test voltage. -
Page 19: Menu Description
EM Test ESD 30N Menu description 4.1. Quick Start To select the Quick Start menu Turn the Scroll wheel on top of the P30N To start the test procedure Push the Start button To enter the menu Push the Edit button The first parameter which can be changed is the polarity by turning the Scroll wheel. -
Page 20: Evaluation
EM Test ESD 30N 4.2. Evaluation This menu can be used to check the DUT for most sensitive test points. The preferred method to find these test points is air discharge. Air discharges are continuously generated with a maximum repetition rate of up to 20Hz. -
Page 21: Start Evaluation
EM Test ESD 30N 4.2.2. Start Evaluation After pressing Start, the menu shows up as follows: Start / Stop of the test with the trigger button Evaluation Evaluation 150pF / 330R 150pF / 330R Cont Cont 8.0kV + 8.0kV 20Hz 20Hz 0 ... -
Page 22: Standard Test Routines
EM Test ESD 30N 4.3. Standard Test Routines The Standard test routines offers an operating mode where the user can change the output voltage only in the given standard levels. For modify this levels the user must change it in the setup menu. -
Page 23: Parameter Change In Standard Routine
EM Test ESD 30N 4.3.1. Parameter change in standard routine Standard Routines 150pF / 330R Air Discharge Cont Cont trigger mode 8.0kV 0.5s 0.5s Repetition rate Test voltage only standard levels selectable 10 10 Counting downwards Level 3 Bleed OFF... -
Page 24: Test Routines
EM Test ESD 30N 4.4. Test Routines To select the Test menu Turn the Scroll wheel on top of the P30N To select a test procedure Push the Trigger button To enter the menu Push the Select button User Test Routines... -
Page 25: Edit Parameters
EM Test ESD 30N 4.4.1. Edit Parameters The parameter trigger, repetition, counter as well as the number of test point can be changed. All other parameters are fix within the related test routine. EN 61000-6-1 150pF / 330R PV... -
Page 26: Esd Test With Test Routines
EM Test ESD 30N 4.4.3. ESD test with Test Routines 1. Press the Start button for run the test procedure. P30N shows the position of the actual test point for testing by a blinking TP 1. This means, the tester must start with testing the test point 1. -
Page 27: Report- And Event Memory In P30N
EM Test ESD 30N 4.4.5. Report- and Event memory in P30N P30N has the internal capability to save 20 files with results of test routines. A full memory is displayed at the begin of a test as shown below. EN 61000-6-1... -
Page 28: Setup Menus
EM Test ESD 30N 4.5. Setup menus 4.5.1. Standard ( Page 1/7 ) The standard voltage levels can be modified within this menu. The parameters are entered separately for air discharge and contact discharge. Setup Standard Mode AD or CD Level 1 2.0 kV... -
Page 29: Setup Firmware
EM Test ESD 30N 4.5.2. Setup Firmware ( Page 2/7 ) The firmware setting configure additional features for ESD testing. Advanced users can enable these features for testing on a higher level. The figure below shows the default factory firmware setting. -
Page 30: Setup System
EM Test ESD 30N 4.5.3. Setup System ( Page 3/7 ) Setup System Contrast Display contrast Date dd.mm.yy Actual date Time hh:mm:ss Actual time Language English Interface USB or Optolink Baudrate 19200 Default setting is 9600 Edit Contrast The contrast of the display can be select with Edit and adjusted with the Scroll wheel 4.5.4. -
Page 31: Device Info Device
EM Test ESD 30N 4.5.6. Device info Device ( Page 6 / 7 ) Device Info 1 Name ESD 30N 102226-1 Hardware version number module 1.00 Firmware version number 2.01a01 Boot loader version 030000 Frame Bus Address U : 00 : 00 : 00 : 00 : 00 : D9... -
Page 32: Setting Into Operation
- The user is not allowed to change or modify any part of the instrument by himself. For service and repair, only original EM TEST parts or components must be used. EM TEST is not responsible for damage or personnel hazard due to the use of different parts or components. -
Page 33: Technical Data
EM Test ESD 30N Technical data 6.1. P30N Contact discharge (CD) 200V to 30kV Test voltage Air discharge (AD) 200V to 30kV 100V steps Resolution 5% at the discharge tip Tolerance Positive, negative, alternating ( only software) Polarity Trigger mode... -
Page 34: Discharge Modules
EM Test ESD 30N 6.3. Discharge modules 6.3.1. As per IEC/EN 61000-4-2 AD : 0.5 – 30.0kV and CD: 0.5 – 30.0kV Test voltage Discharge capacitor 150pF +10% 330 +10% Discharge resistor 5s Holding time for AD Test voltage tr rise time 0.7-1.0 ns... -
Page 35: Test Routines
EM Test ESD 30N 6.4. Test Routines Very fast and easy to handle test routine. While the test is running, the test voltage and Quick Start the polarity can be selected. All other parameters can be preselected before the test is started. -
Page 36: Maintenance And Practical Advice
EM TEST equipment. EM TEST doesn‟t know each customer‟s Quality Assurance Policy nor do we know how often the equipment is used and what kind of tests are performed during the life cycle of a test equipment. Only the customer knows all the details and therefore the customer needs to specify the calibration interval for his test equipment. -
Page 37: Verification
For the calibration procedure, an adequate measuring set-up must be used. The directions given in the chapter "Verification of the characteristics of the ESD generator" of the IEC 61000-4-2 standard have to be strictly followed. Only expert laboratories with adequate knowledge or EM Test or its authorized distributors are permitted to perform calibration of P30N. -
Page 38: Verification Of The Discharge Parameters
EM Test ESD 30N 7.3.3. Verification of the discharge parameters The verification is specified for contact discharge mode only. Verification procedure: - Preselect Quick Start, Mode = CD, Trigger = Single - Select the test level and press the Start key - Contact the discharge tip to the surface of the calibration shunt. -
Page 39: Delivery
ESD 30N Delivery 8.1. Basic ESD 30N and P30N ESD generator Discharge tip for air discharge ( 8mm round ) Discharge tip for contact discharge ( sharp 30) Grounding cable (2 m) Carrying case 580 x 470 x 200mm 4.05kg... -
Page 40: Appendix
EM Test ESD 30N Appendix 9.1. Declaration CE- Conformity DECLARATION OF CONFORMITY Manufacturer : EM TEST AG Address: Sternenhofstr. 15 CH 4153 Reinach Switzerland declares, that under is sole responsibility, the product‟s listed below, including all their options, are conformity with the applicable CE directives listed below using the relevant section of the following EC standards and other normative documents. -
Page 41: Blockdiagram P30N
EM Test ESD 30N 9.2. Blockdiagram P30N Blockdiagram 9.2.1. Signal level ext. Trigger User manual V 1.03 41 / 44... -
Page 42: Application
EM Test ESD 30N 9.3. Application 9.3.1. Test setup Example of test set-up for table-top equipment, laboratory tests. Direct discharge test points per IEC 61000-4-2 - All accessible points of the surface of the DUT: Cables, housings, displays, keyboards, etc. -
Page 43: Test Setup Daimlerchrysler Dc-11224 Rev.a (2007-06)
Test Bench setup Using this Daimler Chrysler standard, the COMMON of the ESD generator is grounded at the Reference earth point ( 12). The horizontal coupling plane is connected via a 1 M to PE (13). The ESD 30N is floating operated. -
Page 44: Definitions
EM Test ESD 30N 9.4. Definitions - Actual ESD events: Non-simulated electrostatic discharges that occur in the environment of the electronic equipment. - Air discharge method: A method of ESD testing in which the charged electrode of the ESD simulator approaches the EUT regardless of the conductivity of the surface being subjected to the ESD event.
