Sontay RF-LW-THVB-S User Manual

Lorawan wireless environmental sensor
Hide thumbs

Advertisement

Quick Links

Download this manual
[ Type here ]
Zone User Guide
LoRaWAN Wireless Environmental Sensor
LoRa long range wireless
Battery powered
Built in sensors for:
Temperature (°C) • Humidity (%RH) • Carbon Dioxide
•
) • Motion (PIR)
(CO
2
•
Barometric Pressure (Pa)
Registered in England No. 04897542 Registered Office: Four Elms Road, Edenbridge, Kent, TN8 6AB
*
•
Light level
Sontay Limited
Four Elms Road, Edenbridge
Kent TN8 6AB, UK
+44 (0) 1732 861200
sales@sontay.com
www.sontay.com
RF - LW - THVB - S
RF-LW-THLVBPM-S
RF-LW-THLVBC-S

Advertisement

loading
Need help?

Need help?

Do you have a question about the RF-LW-THVB-S and is the answer not in the manual?

Questions and answers

Related Manuals for Sontay RF-LW-THVB-S

Summary of Contents for Sontay RF-LW-THVB-S

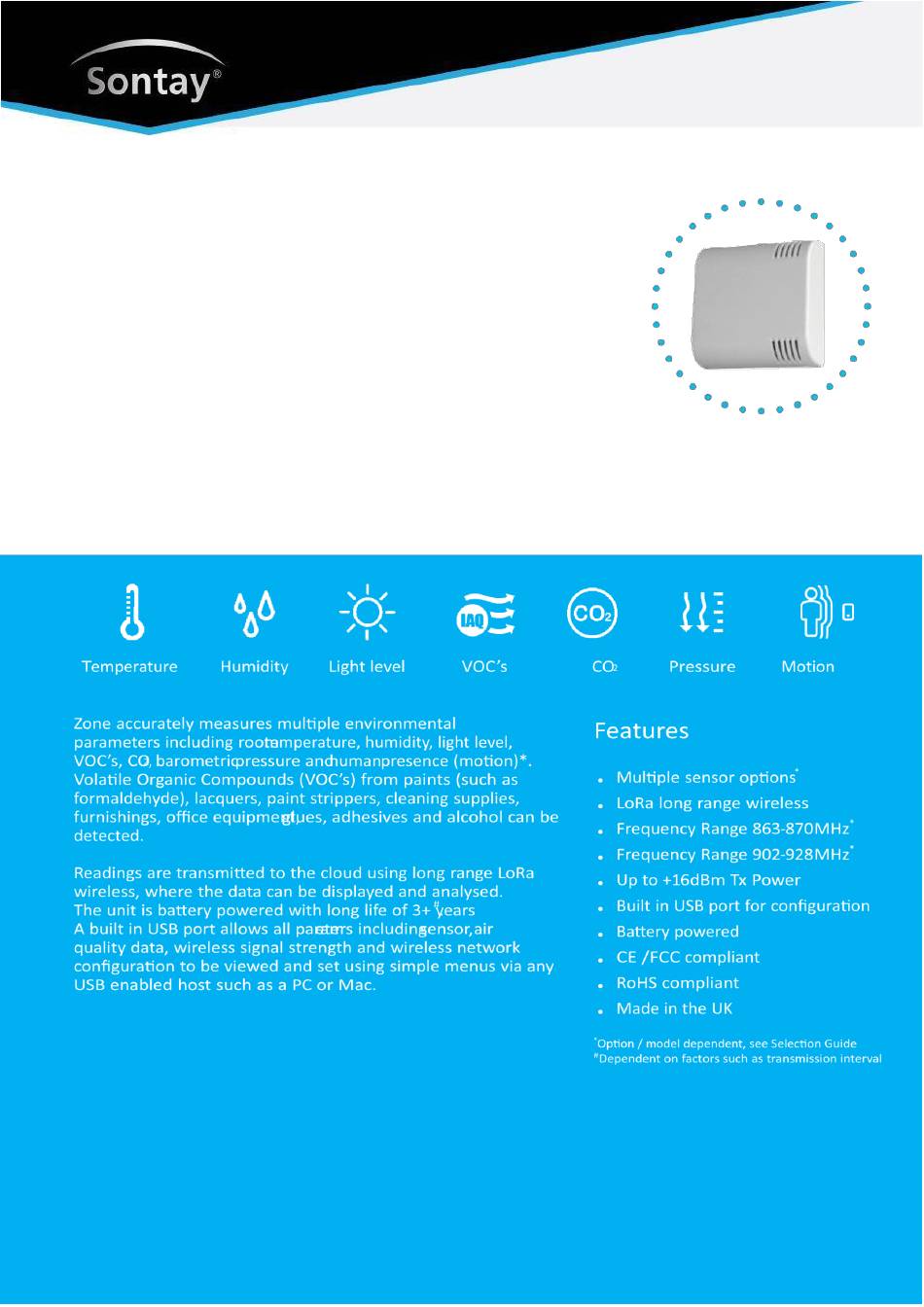

  • Page 1 [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com Zone User Guide LoRaWAN Wireless Environmental Sensor LoRa long range wireless Battery powered Built in sensors for: RF - LW - THVB - S Temperature (°C) •...
  • Page 2 [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com (lux) RF-LW-THLVBCM-S Registered in England No. 04897542 Registered Office: Four Elms Road, Edenbridge, Kent, TN8 6AB...
  • Page 3 [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com Introduction • Volatile Organic Compounds (VOC’s) Zone accurately measures up to seven key indoor air quality parameters with class leading accuracy.
  • Page 4 [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com Devices in wireless range and with the correct AppEUI and AppKey settings set will automatically join the LoRaWAN network when they are first powered up.
  • Page 5 [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com Check that the batteries are correctly inserted and then use a small screwdriver to gently slide the power switch towards the ON position marked on the unit as shown.
  • Page 6 [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com Devices which have Joined the network appear in the Conduit LoRaWAN - > Devices menu as shown previously. 5. Setting / changing the LoRaWAN keys If the LoRa gateway has matching keys the join process will happen automatically once the Zone unit is in wireless range and switched on.

  • Page 7: Configuration Menu

    [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com The header will show ** Reboot Required ** as shown below. The new key settings will not take effect until the device is restarted. Enter R to reboot followed by OK. The device will restart with the entered AppEUI and AppKey and attempt to join the LoRa network.
  • Page 8 [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com from the main menu. A screen similar to the one below will show. The exact parameters shown will vary according to the Zone model and sensors fitted.
  • Page 9 [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com 400-1,000ppm Concentrations typical of occupied indoor spaces with good ventilation 1,000-2,000ppm Complaints of drowsiness and poor air. Headaches, sleepiness and stagnant, stale, stuffy air.
  • Page 10 [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com 0 – 50 Excellent Pure air; best for wellbeing No measures needed 51 – 100 Good No irritation or impact on...
  • Page 11 [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com When the PIR detects movement (possibly multiple times) the internal occupancy state changes to the ‘occupied’ state. If the PIR does not detect any movement for a period of 30 seconds the internal state changes to ‘unoccupied’...
  • Page 12 [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com When set to “Adaptive” transmit interval the unit will send a wireless message containing the PIR status when the status changes with the following constraints: •...

  • Page 13: Battery Installation/Replacement

    [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com Transmit Interval settings To select a fixed transmit interval select the required interval from the menu options. To select Adaptive Transmit Interval select the A option and then change the settings for the Adaptive Min interval and Adaptive Max interval as required.
  • Page 14 [ Type here ] Sontay Limited Four Elms Road, Edenbridge Kent TN8 6AB, UK +44 (0) 1732 861200 sales@sontay.com www.sontay.com WARNING Risk of death or serious injury from explosion or fire. • Keep out of sight and reach of children.
