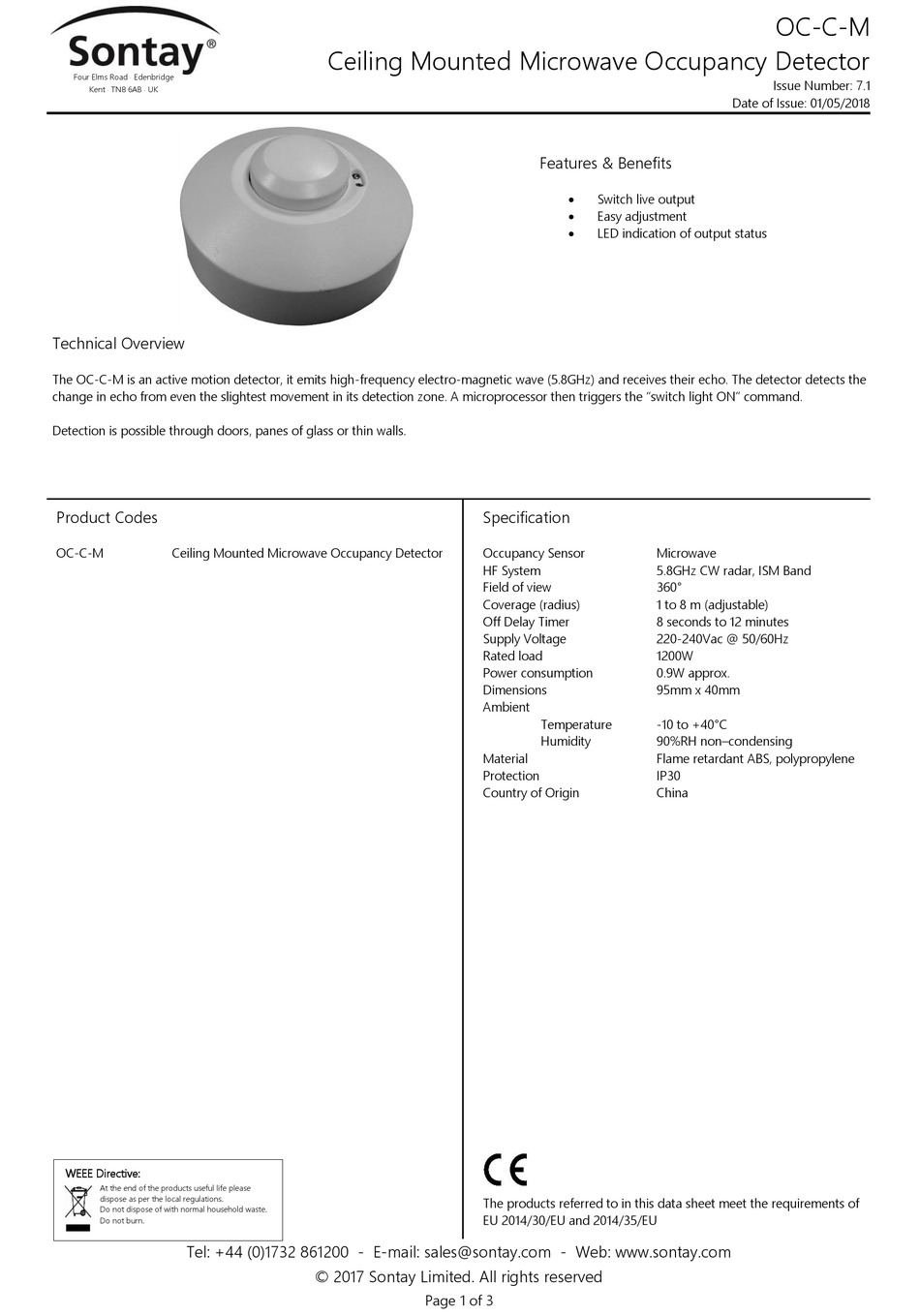

Sontay OC-C-M Quick Start Manual

Four Elms Road  Edenbridge
Kent  TN8 6AB  UK
Technical Overview
The OC-C-M is an active motion detector, it emits high-frequency electro-magnetic wave (5.8GHz) and receives their echo. The detector detects the
change in echo from even the slightest movement in its detection zone. A microprocessor then triggers the "switch light ON" command.
Detection is possible through doors, panes of glass or thin walls.
Product Codes
OC-C-M Ceiling Mounted Microwave Occupancy Detector
WEEE Directive:
At the end of the products useful life please
dispose as per the local regulations.
Do not dispose of with normal household waste.
Do not burn.
Tel: +44 (0)1732 861200 - E-mail: sales@sontay.com - Web: www.sontay.com

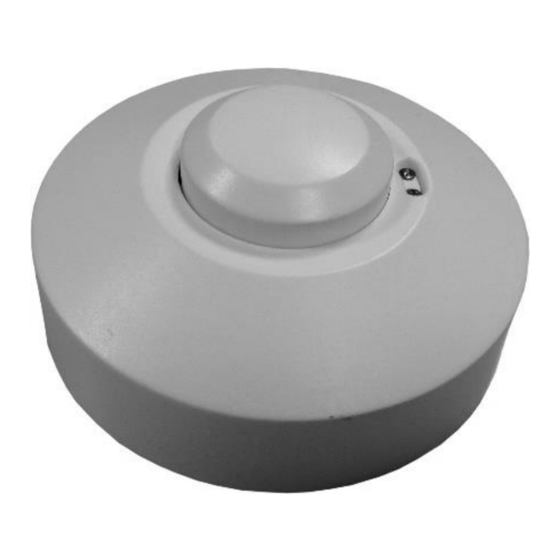

Ceiling Mounted Microwave Occupancy Detector
Specification
Occupancy Sensor
HF System
Field of view
Coverage (radius)
Off Delay Timer
Supply Voltage
Rated load
Power consumption
Dimensions
Ambient
Material
Protection
Country of Origin
The products referred to in this data sheet meet the requirements of
EU 2014/30/EU and 2014/35/EU
© 2017 Sontay Limited. All rights reserved
Page 1 of 3
Features & Benefits
Switch live output

Easy adjustment

LED indication of output status

Microwave
5.8GHz CW radar, ISM Band
360°
1 to 8 m (adjustable)
8 seconds to 12 minutes
220-240Vac @ 50/60Hz
1200W
0.9W approx.
95mm x 40mm
Temperature -10 to +40°C
Humidity 90%RH non–condensing
Flame retardant ABS, polypropylene
IP30
China
OC-C-M
Issue Number: 7.1
Date of Issue: 01/05/2018
