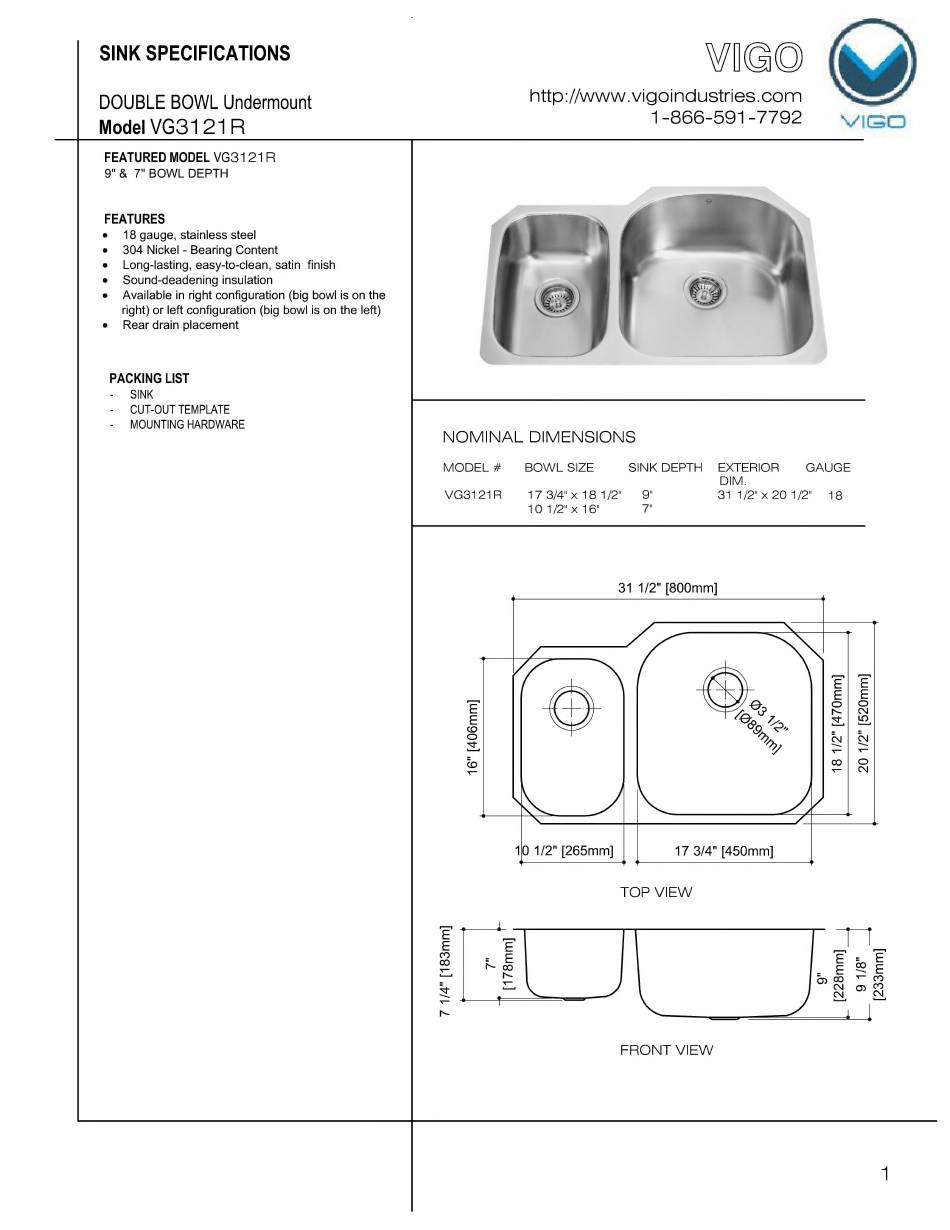

VIGO VG3121R Installation Instructions Manual

Model VG3121R
FEATURED MODEL VG3121R
9" & 7" BOWL DEPTH
FEATURES
e 18 gauge, stainless steel
304 Nickel - Bearing Content
Long-lasting, easy-to-clean, satin finish
Sound-deadening insulation
Available in right configuration (big bowl is on the
right) or left configuration (big bowl is on the left)
Rear drain placement
PACKING LIST
SINK
CUT-OUT TEMPLATE
MOUNTING HARDWARE
NOMINAL DIMENSIONS
MODEL # BOWLSIZE SINKDEPTH EXTERIOR GAUGE
DIM.
VG3121R = 17 3/4"x 18 1/2" 9" 31 1/2"x 20 1/2" 18
10 1/2" x 16" 7"
31 1/2" [800mm]
16" [406mm]
TOP VIEW
7 1/4" [183mm]
[233mm]
FRONT VIEW
