Assembly &
User Instructions
M3 Digital Console
(Model No: XTTM3-C)
For use with Tank M3
(Model No: XTTM3-MPH)
This product is compliant with the applicable CE
requirements.
for

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3 Digital Console and is the answer not in the manual?

Questions and answers

Related Manuals for Torque M3 Digital Console

Summary of Contents for Torque M3 Digital Console

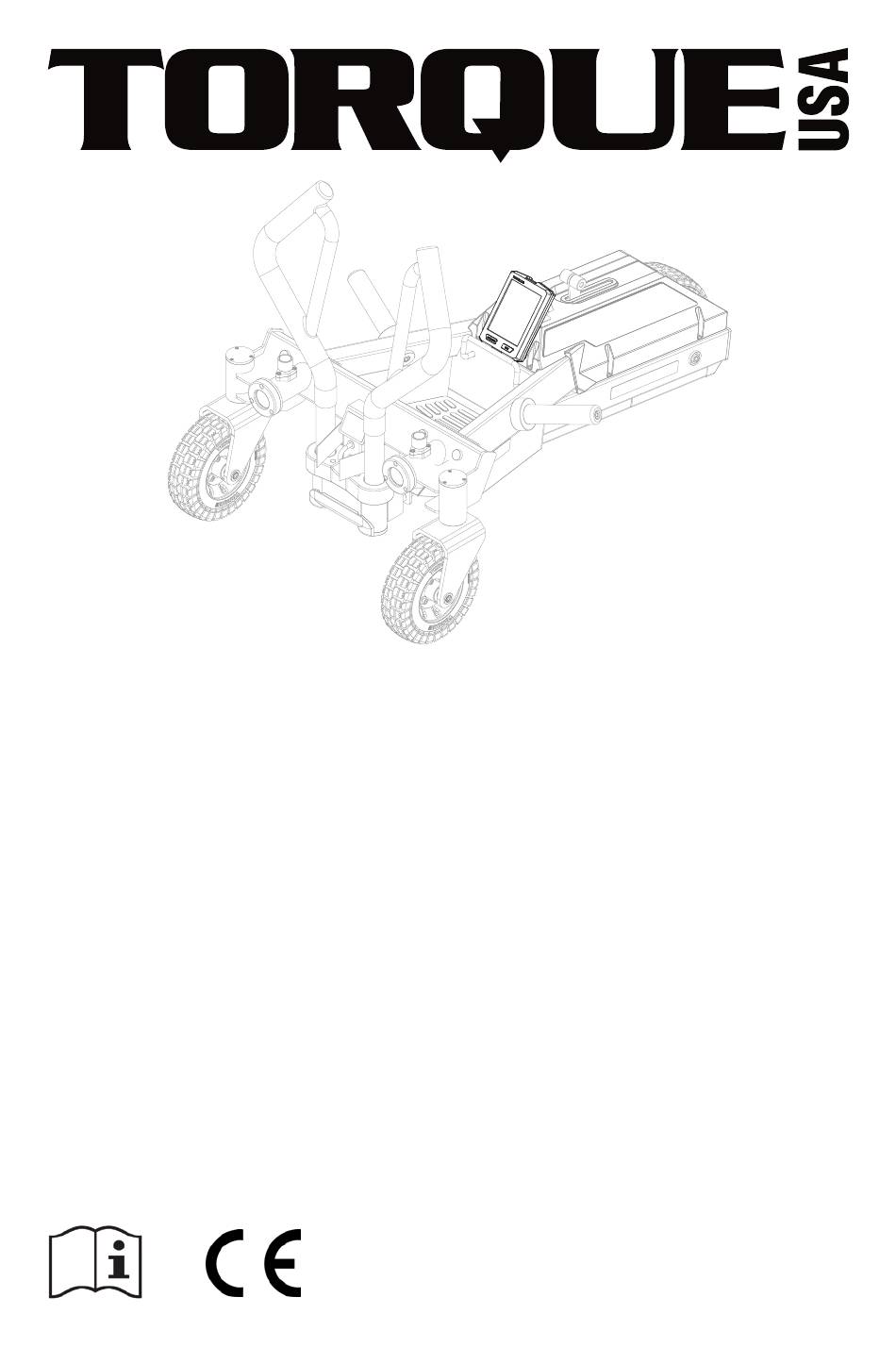

  • Page 1 Assembly & User Instructions M3 Digital Console (Model No: XTTM3-C) For use with Tank M3 (Model No: XTTM3-MPH) This product is compliant with the applicable CE requirements.

  • Page 2: Table Of Contents

    2. Remove Shroud Cover Plate ..............3 3. Install Console on Shroud..............4 4. Install Console/Shroud Assembly ............6 5. Calibrate the Console (Required) ............7 M3 Digital Console User Instructions ..............8 Console Buttons ..................8 Console Setup (Optional) .................9 Display ....................12 Limited Product Warranty ................14...

  • Page 3: Important Safety Instructions

    Use this machine only for its intended use as described in this manual. Use • only attachments recommended by Torque Fitness. • Clean with a damp cloth. Do not spray cleaner directly on the display; moisten the cloth first, then wipe the display. Do not allow moisture from perspiration to accumulate as it is extremely corrosive.
  • Page 4 20cm between the radiator & your body. CE Warning EU Declaration of Conformity TORQUE FITNESS, LLC hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. This device can be operated in at least one Member State without infringing applicable requirements on the use of radio spectrum.

  • Page 5: Product Label Location

    Product Label Location The accuracy of the Watt value displays on the console is within +/- 10%. Electrical Specifications and Disposal Instructions Power Requirements: Four (4) AA batteries Disposal: Waste of electrical and electronic equipment must not be disposed as unsorted municipal waste. It must be collected separately, and must be disposed of per local regulations.

  • Page 6: M3 Digital Console Assembly Instructions

    M3 Digital Console Assembly Instructions Assembly Preparation Unpack all contents, removing all packaging and protective bags. Verify all items shown below are included and undamaged.  Hardware Included: • 5mm Allen wrench Qty: 1 • Console Attachment Retainer Qty: 6 •...

  • Page 7: Remove Shroud And Handle

    1. Remove Shroud and Handle Use 5mm Allen wrench to remove screw securing two sides of resis- tance handle. Retain two handle pieces and screw for reuse in step 4. Use #2 Phillips screwdriver to remove six (6) screws securing shroud to base frame.

  • Page 8: Remove Shroud Cover Plate

    2. Remove Shroud Cover Plate Use 5mm Allen wrench and a 10mm wrench to remove four (4) screws, washers and nuts securing cover plate to shroud. Retain two washers for reuse in step 4. The removed cover plate, screws, nuts, and two additional washers are no longer needed.

  • Page 9: Install Console On Shroud

    3. Install Console on Shroud Pull the battery protection tab (not shown) to remove it from the battery compartment on the back of the console. The console window should illuminate. If the does not illuminate, replace the batteries: Remove the #1 Phillips screw and battery compartment cover. •...
  • Page 10 Console with cowl, cable, and hat washers/screws...

  • Page 11: Install Console/Shroud Assembly

    4. Install Console/Shroud Assembly Set shroud on frame, then connect console cable connectors to base cable connectors. (One is a 3-pin connection, the other is a 2-pin connection.) Push the sled and verify the console illuminates. If it does not,check the connections and try again. Console Connectors Base...

  • Page 12: Calibrate The Console (Required)

    5. Calibrate the Console (Required) Press any key to wake the console. Press “DATA”, then “END | RESET” and hold both keys until the calibration screen (Screen 0) appears: Set the brake lever to “N”, then press “DATA”. The number in the middle section of the screen will change to “1”.

  • Page 13: M3 Digital Console User Instructions

    M3 Digital Console User Instructions Console Buttons The console features two (2) buttons to control the digital display: END | RESET Press this button to end a workout and activate the workout summary display. Press and hold the button for three seconds to reset the console data to the neutral state or cancel programming.

  • Page 14: Console Setup (Optional)

    Console Setup (Optional) The default console values for Units, Beep, and back light may be changed if desired. Follow these steps to verify or change the settings: Press “DATA”, then “END | RESET” and hold both keys until the calibration screen (Screen 0) appears.
  • Page 15 Console Setup (Continued) The odometer screen is a display-only screen showing machine distance and hours for service and diagnostics purposes. Press “END | RESET” to move to the units setup (screen 4.) Press “DATA” to toggle the units setting between imperial (pounds, miles/hour, and feet) and metric (kilograms, kilometers/hour, and kilograms).
  • Page 16 END / RESET” to move to diagnostics (screen 6). Use the diagnostic screen as needed when working with a Torque Fitness service technician. Press “END | RESET” to save your Setup selections and return to the main...

  • Page 17: Display

    Display The digital LCD includes the following data at the top of the screen: Battery ( This icon blinks when the battery level is low. Replace the batteries following the instructions on page 4, step 3.1. TIME During a workout, this field displays the elapsed time of the workout, actively counting up (in minutes:seconds).
  • Page 18 Display (continued) The bottom section of the screen displays of cumulative data for the workout: CAL ( Displays the approximate number of calories burned during the workout (based on a user weight of 150 pounds), ranging from 0-9999. DISTANCE ( ) Displays the approximate distance the M3 has been pushed by the user, in feet or meters, from 0 to 9999.

  • Page 19: Limited Product Warranty

    Limited Product Warranty For warranty information, visit www.torquefitness.com/pages/warranty. If you purchased your machine outside of the United States, consult your local distributor or dealer for warranty coverage.
  • Page 20 Toll free: 1-877-TORQUE5 (1-866-664-9894) 11201 Xeon Street NW Ste 101 or 763-754-7533 (8:30 am – 5:00 CST). Coon Rapids, MN USA 55448 For sales: sales@torquefitness.com www.torquefitness.com For service: service@torquefitness.com © 2025 Torque Fitness. All rights reserved. P/N 6004001 REV B 01/2025...
