EntraSYSTEM4 Basic mode
Preliminary instructions Basic mode.
In Basic mode, the ES4 controller operates without an internet connection. The system can be configured via the
keypad or through a direct Wi-Fi connection using the Entrya ES4 app on a smartphone or tablet.
Keypad
The simplest way to program codes.
Start programming new codes by pressing the PROG button for 5 seconds or by entering the master code
and holding the last digit for 5 seconds.
App via Wi-fi Direct
Advanced user and settings management with the Entrya ES4 app.
The app connects via Wi-Fi Direct directly to the ES4 controller.
Program codes with usernames and set restricted access rights.
Manage settings for the relay, lighting, and security.
Receive software updates.

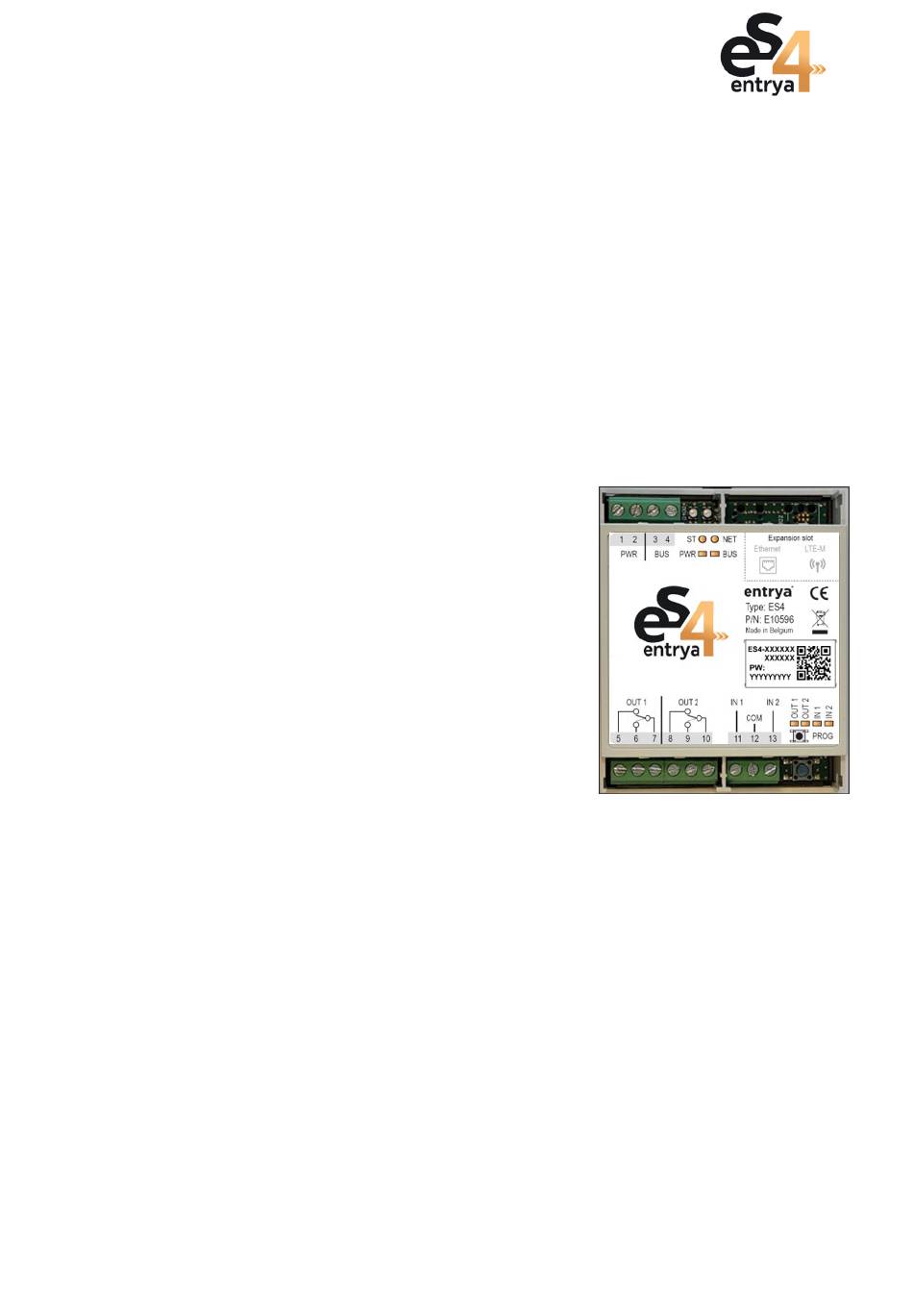

ES4 controller
Connections
PWR (1, 2):
BUS (3, 4):
OUT 1 (5, 6, 7): Output 1 (relay: NC, NO, COM)
OUT 2 (8, 9, 10): Output 2 (relay: NC, NO, COM)
IN 1 (11, 12):
IN 2 (12, 13):
The operation of OUT 1 and 2 can be adjusted via the app:
- Pulse: 1-10s
- Hold contact
- Switch delay (0-5s)
- Operating principle (normal or inverted)
In Inverted mode, the output is active at rest.
Note: During a power outage or reset, the output will switch
QR-code
Label with ES4 ID and password
Expansion slot (only for Cloud-modus)
Expansion modules available for LAN network connection (RJ45) or mobile internet (LTE-M).
Interface
PWR: Power LED (green)
BUS: Bus activity LED for keypad (red)
ST: Status LED

Normal mode

Wi-Fi Direct enabled
 — — —...

(White) System starting

System error
Power supply, polarity insensitive (12-24V AC/DC)
Bus for keypads, polarity insensitive
Input 1, exit button OUT 1 (potential-free contact)
Input 2, exit button OUT 2 (potential-free contact)
Connected to the app via Wi-Fi Direct
