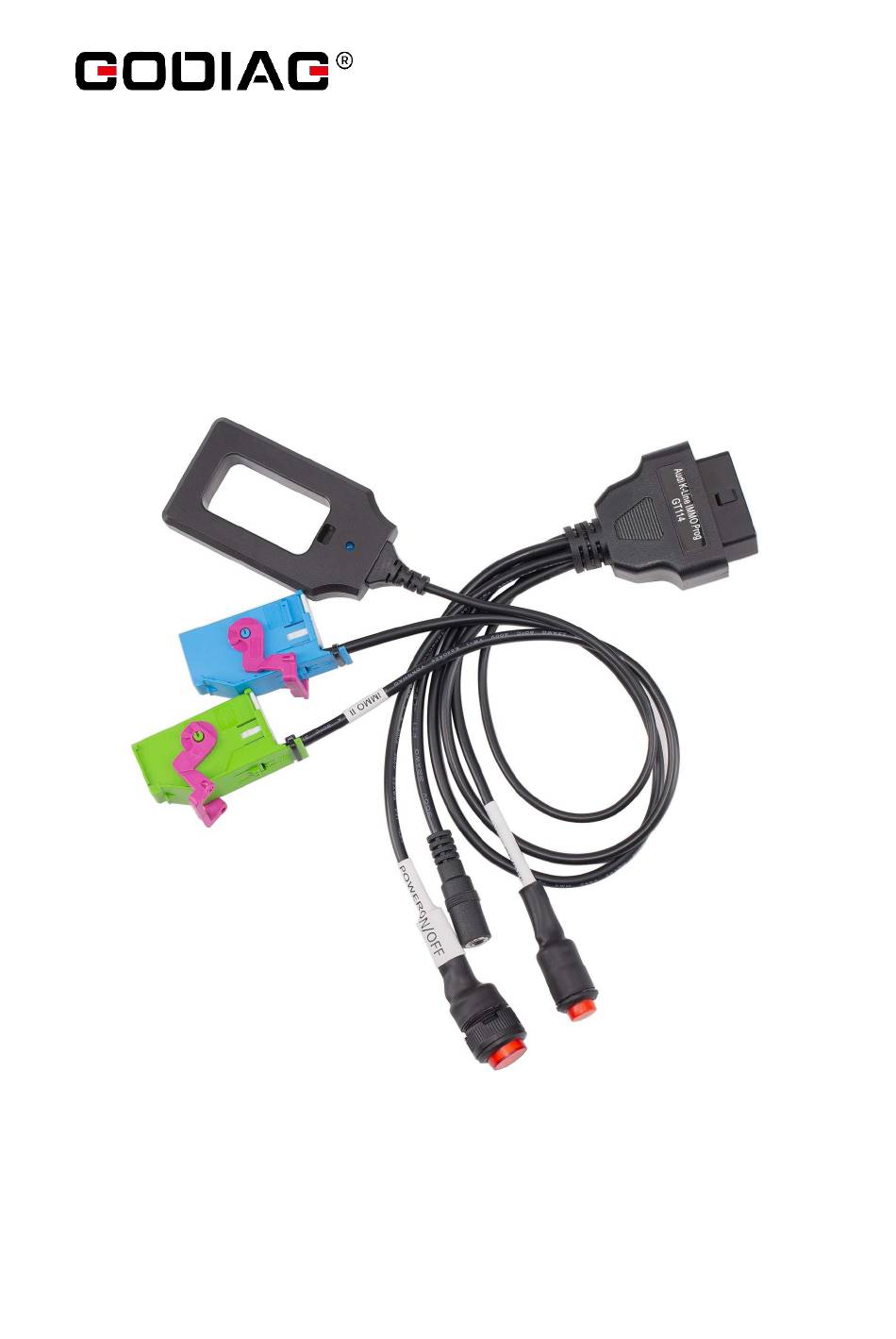

- Page 1 GODIAG GT114 Audi K-Lline IMMO for Audi A4 A6 C5 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable User Manual 202501...
-
Page 2: Product Overview
It supports Audi A6 C5 from 2000-2006. GODIAG GT114 Audi K-Lline IMMO cable can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, etc. - Page 3 Step 2: First press 1 main power switch, then press 2 ignition switch. If the induction adapter flashes for three seconds and then turns off, it means that the key has not been recognized or the key chip does not match. If the IMMO light on the instrument flashes, it also means that the instrument has not recognized the key.
- Page 4 Step 3: Double-click to open the VVDI2 software and select Audi. Step 4: Select "K-Line Instrument/Immobox">>"Instrument Cluster(VDO66, VDO86, Motometer)".
- Page 5 A PIN code will appear at this time. Remember this PIN code, as it will be used in key learning later.
- Page 6 Step 5: After memorizing the PIN code, click “Save File” to save the eeprom file. Step 6: Then click "Yes" to exit.
- Page 7 Step 7: Insert the MEGAMOS 48 chip. Step 8: Select “Transponder Programmer”>> “Immobilizer Data Tool”>>...
- Page 8 Step 9: Select "Euro/Audi/A6/VDO 1998-93C66(86)" as shown in the figure.
- Page 9 Step 10: Select "Load EEPROM dump”. Step 11: Select the eeprom file you just saved.
- Page 10 Step 12: Select “Key2”>>”Make Dealer Key”>>”Megamos 48”.
- Page 11 Step 13: Save the new data and rename it.
- Page 12 Step 14: Exit this interface and Select "Audi” again.
- Page 13 Step 15: Select "K-Line Instrument/Immobox">>"Instrument Cluster(VDO66, VDO86, Motometer)">> “Load File”.
- Page 14 Step 16: Select the newly created file. Step 17: Select “Write EEPROM”.
- Page 15 Step 18: Click “Yes” to exit after the data is written successfully. Step 19: Third click "Audi”.
- Page 16 Step 20: Put the chip into the induction adapter. Step 21: Select "Key Learn >> Key Learn">>"Audi A2/A3/A6/Allroad 1997+-KWP1281".
- Page 17 Step 22: Enter the PIN you just memorized and click “Learn”.
- Page 18 Step 23: Follow the prompts to turn off the ignition switch for 5 seconds and then turn it on again.
- Page 19 Step 24: Follow the prompts to turn off the ignition switch for 2 seconds and then turn it on.
- Page 20 Step 25: Key learning is completed. Step 26: Test the newly generated chip. After pressing the power switch, you can see the light on the induction adapter flash quickly and then go out immediately, and it means that the chip is matched successfully. After pressing the ignition switch, the IMMO light flash quickly and then go out immediately, and it also means that the chip is matched successfully.
- Page 21 3. The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system. Accessories: 1pc x GODIAG GT114 Audi K-Lline IMMO Key Matching Test Platform Cable 1pc x PDF manual...
