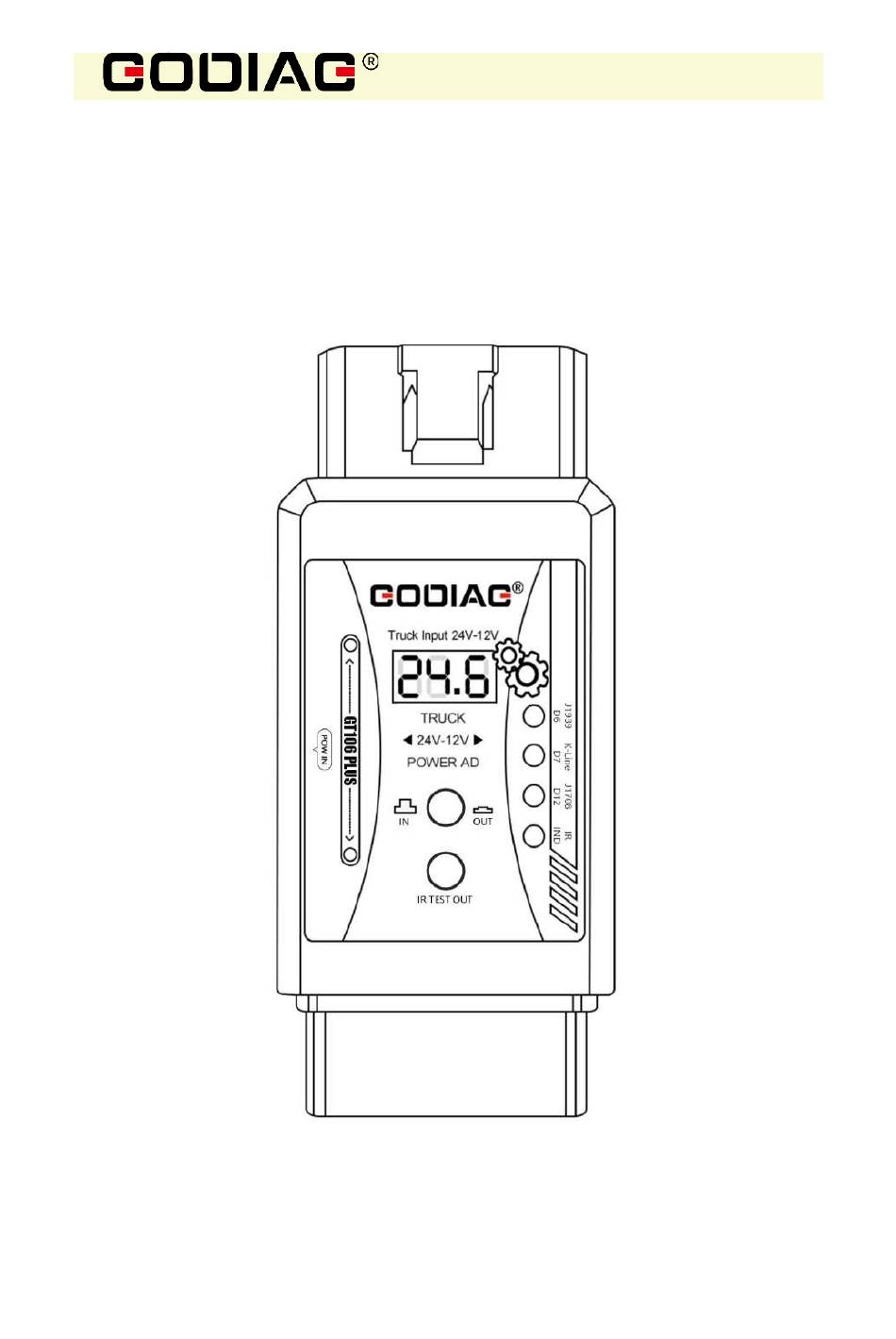

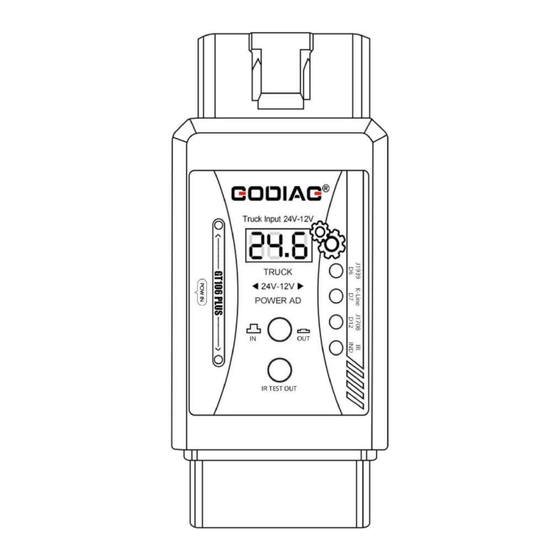

- Page 1 GODIAG GT106 PLUS 24V TO 12V Heavy Duty Truck Adapter OBD2 Scanner Injector/Relay Test for Cars & Trucks User Manual 8.2024...
-
Page 2: Product Overview
Product overview GODIAG GT106 PLUS 24V TO 12V Heavy Duty Truck Adapter OBD2 Scanner is a dedicated connection adapter developed for truck or car maintenance technicians, DIY maintenance personnel. The product can convert the 24V power of the truck diagnostic interface into DC12.5V, so that the 12V diagnostic equipment with truck diagnostic software... - Page 3 The 12V diagnostic equipment 7PIN K-Line communication will be burned by the 24V K-line signal of the truck without step-down conversion. GODIAG GT106 PLUS 24V TO 12V OBD2 Scanner For Heavy Duty Truck Adapter can convert the truck's 24V K-line voltage signal into 12V K-line signal in order to protect the 12V diagnostic equipment 7PIN K-Line communication from being burned by 24V.
- Page 4 3. Communication indication function: When CANH/J1939 (PIN6), J1708(PIN12), K-line (PIN7) signal communication such as diagnostic programming, the corresponding indicator light will light up or flash. It can display the current status of communication between the diagnostic equipment and the vehicle. If you do not connect the car and only connect the diagnostic equipment for software communication signal test, you can judge whether the communication of the diagnostic equipment is normal.
- Page 5 5. Output voltage display function: When the function switch button is pressed down, the voltage display shows that the voltage of the OBD2 diagnostic output interface after the current conversion is 12.5V. It can be used for equipment self-test before use to ensure that the conversion voltage is normal, which can better protect the 12V diagnostic equipment.
- Page 6 7. 12v relay, fuel injector test function Relay or injector test steps: Connect 12V DC power from the POW IN port. Connect the fuel injector or relay according to the connection diagram, After connecting, connect to the IR TEST OUT interface. If the relay or fuel injector is activated, it can be judged that the tested accessory is normal.
- Page 7 8. 24V relay fuel injector test function 24V relay or injector test steps: Connect 24V DC power from the POW IN port. Connect the fuel injector or relay according to the connection diagram. After connecting,...
- Page 8 connect to the IR TEST OUT interface. If the relay or fuel injector is activated, it can be judged that the tested accessory is normal. (Note: When working, the POW IN interface needs to be connected to a DC 24V 8A power supply.
-
Page 9: All Rights Reserved
Accessories: 1pc x GODIAG GT106 PLUS 24V to 12V Heavy Duty Truck Adapter 1pc x Manual PDF electronic document 1pc x power cord with fuse 1pc x power cord 4pcs x clamps 2pcs x red rubber protective cover 2pcs x black rubber protective cover Shenzhen Sinoy Technology Co.,Ltd...
