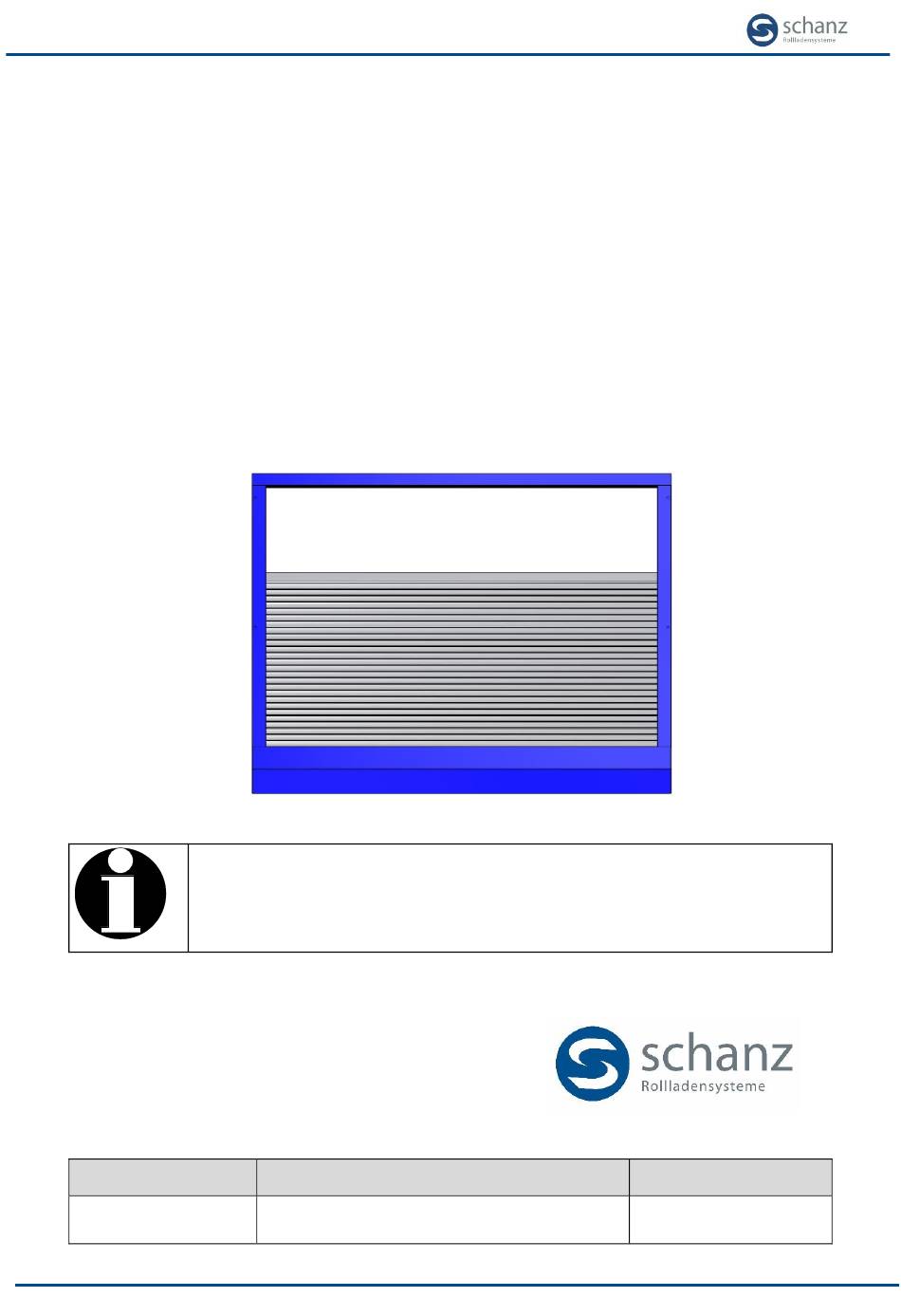

Assembly Instruction
Roller Shutter Type DG
This assembly instruction contains important information on assembling roller shut-
ters as well as important safety instructions.
The assembly operation may only be carried out by specialized staff of Schanz
Rollladensysteme GmbH or technicians especially authorized by Schanz Rollladen-
systeme GmbH.
Schanz Rollladensysteme GmbH
Forchenbusch 9
D- 72226 Simmersfeld
Tel.:
+49 (0)7484/9291-0
Fax:
+49 (0)7484/9291-36
E-Mail:
info@schanz.de
Internet: www.schanz.com
Commission - No.
MAL Wiga Star-Typ DG_englisch
Wiga Star
-Motor Drive-
Date Installation and Instruction
Version: 09.01.25
Signature
Page 1 of 12
Advertisement
Table of Contents
Related Manuals for schanz Wiga Star DG
Summary of Contents for schanz Wiga Star DG
- Page 1 This assembly instruction contains important information on assembling roller shut- ters as well as important safety instructions. The assembly operation may only be carried out by specialized staff of Schanz Rollladensysteme GmbH or technicians especially authorized by Schanz Rollladen- systeme GmbH.
-
Page 2: Table Of Contents
Put on the cover and screw it back. Assembling / Installation / Working on the facade Each roller shutter is individually manufactured according to your window shape and size and must only be installed by Schanz Rollladensysteme GmbH or technicians especially authorized. -
Page 3: Assembly Drawing
Assembly Drawing MAL Wiga Star-Typ DG_englisch Version: 09.01.25 Page 3 of 12... -
Page 4: Cord Guidance
Cord Guidance MAL Wiga Star-Typ DG_englisch Version: 09.01.25 Page 4 of 12... -
Page 5: Description Of The Basic Procedure
Description of the basic procedure Step No. Operation Note Check Check delivery for completeness Delivery is complete Compare the goods with delivery note Screw substructure to conservatory profile Mount at right with appropriate fixing material angle Lay sealants at the drill holes between the conservatory frame and aluminium profile. - Page 6 Step No. Operation Note Check Pulling the cord through The cord is being inserted below the cord roll into the end rail Guide the cord on the motor side high over the single cord roll in the guide rail Guide the cord through the guide rail with double cord roll and to the cord pulley Guide the cord on the cord pulley side...
- Page 7 Step No. Operation Note Check Pre-assemble cord Only perform this -Only with mechanical motor- operation with a mechanical Put the cord through the foreseen drilling motor holes into the cord pulley Pull the cord through completely and tie it together slightly to protect it from sliding back Attach guide rails Do not damage...
- Page 8 Step No. Operation Note Check Attach the guiding support(s) Insert the guiding support(s) between roller shutter jacket and the back panel until the bottom of the box and align it Screw the guide rails with appropriate fixing material to the aluminium profiles according to the number of fixing holes on the guide rails Screw the guiding support(s) with...
- Page 9 Step No. Operation Note Check Attach the panel Do not damage Put on the panel, adjust it and screw it the cord with two short tapping screws on the right and left side to the guide rail For attaching the panel the screw ISO 7049 – A2 3,9 x 9,5 is needed Note: Always pre-drill the holes MAL Wiga Star-Typ DG_englisch...
- Page 10 Arbeits- Arbeitsvorgang Bemerkungen Prüfungen gang Nr. Attach Roller shutter box Unscrew the screws of the box lid and open the roller shutter box Screw the roller shutter box on the left and the right side through the side part and back panel with appropriate fixing material with the substructure.
- Page 11 Step No. Operation Note Check Note: It is recommended to conduct the following operation after the setting of the roller shutter Attach the stabilizer(s) A spacer sleeve is being added between guiding support and panel Pre-drill a hole for the countersunk Do not damage screw through the panel in the the cord...
-
Page 12: Copyright/ References To This Documentation
„Connection Diagram“ Copyright/ References to this documentation The copyright (copyright ©) for the present documentation is being kept by Schanz Rollladensysteme GmbH as well as partially by the suppliers of the sub vendor documentation. The containing information is solely designed for the operating companies of our roller shutters. It may not be changed, extended, duplicated, saved on data linked institutions and spread without our written agreement nor should it be used for other purposes.
