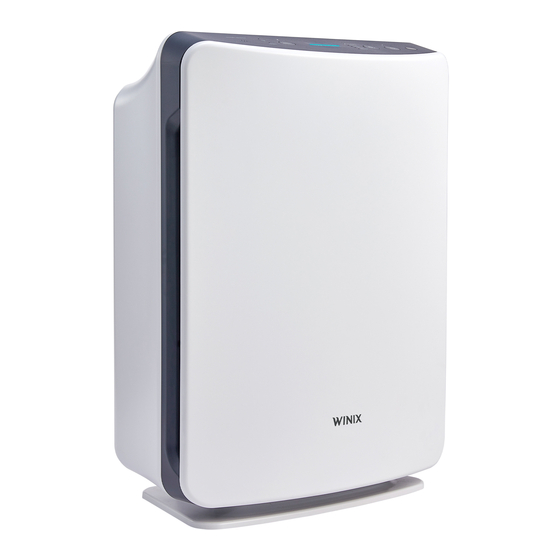

Winix D480 Manual

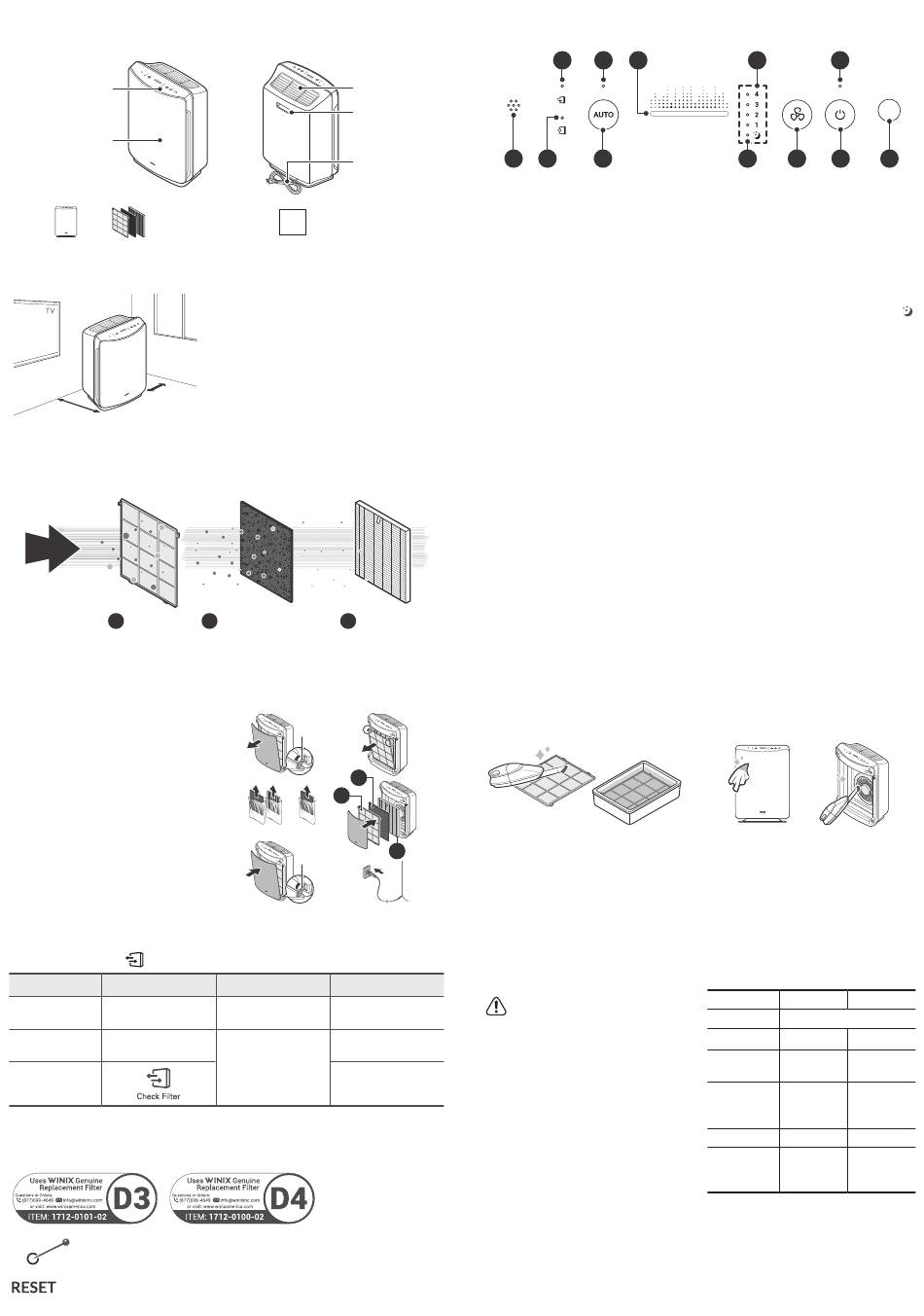

MODEL PART DIAGRAM
FRONT
Control Panel
Front Panel
PACKAGE CONTENTS
(1) Pre-Filter
Unit (4) Activated Carbon Filters
(1) True HEPA Filter
WHERE TO USE
12~18 in
12~18 in
3-STAGE AIR PURIFICATION
Pre-Filter
1
INITIAL OPERATION
1. Remove the front panel by grasping its
upper edge and gently pulling forward.
2. Remove the Pre-Filter, then the bag of
filters behind it.
3. Remove the filters from the protective
plastic bag.
4. Install the filters until they fit securely in
place.
01. Pre-Filter (front)
02. Activated Carbon Filter (middle)
03. True HEPA Filter (back)
5. After filters are installed, close the front
panel.
6. Insert the power cord into an electrical
outlet.
MAINTENANCE
When to Replace Filters
Filter Indicator Light
Pre-Filter none
Activated Carbon
none
Filter
True HEPA Filter
• When the Check Filter Indicator LED is on, it is time to replace the True HEPA Filter.
• Intervals between filter replacement may vary depending on environment.
REPLACING FILTERS
Resetting Filter Life:
After replacing your True HEPA Filter, place the Pre-Filter back in and close the Front
Panel. While the unit is on, use a small, thin object (such as a paperclip) to hold the Filter
Reset Button for at least 5 seconds until you hear the beep. After the beep, the Filter
Replacement Indicator will disappear. Your Winix True HEPA is now reset.
BACK
Air Outlet
Vent
Handle
Power Plug
User
Manual
Allow 12 ~ 18 in. of space between TVs, radios, and
other electronics
Electromagnetic interference from certain electronics
may cause product malfunction.
Place indoors away from direct sunlight
Direct exposure may cause product malfunction or
failure.
Only place on hard, flat surfaces
Flimsy or slanted surfaces may result in abnormal
noise and vibrations.
Allow at least 12 ~ 18 in. from walls for maximum air flow
Air Purification means it
removes inanimate particles
Activated Carbon Filter True HEPA Filter
2 3
Latch
02
01
D480 D360
Latch
When to Ser vice When to Replace
Clean once every
Permanent
14 days
Replace every
3 months
Can NOT be WASHED
Lasts Approx.
12 months
CONTROL PANEL
02
01 03
01. Smart Sensor
Detects the amount of odorous gas in the
environment. When in Auto mode, the fan
speed adjusts according to the detected
amount of gas.
02. Filter Replacement Indicator
LED light indicates when it is time to change
the filter.
03. Filter Reset Button
After replacing the True HEPA Filter, use a
small object such as a paper clip, to press
and hold the Filter Reset Button for at least 5
seconds until the Filter Replacement Indicator
turns off.
04. Auto Mode
Auto Mode automatically adjusts fan speeds
according to your indoor air quality. The fan
speed will adjust to low when air quality is
good, medium when fair, and to high when
poor.
05. Auto Button
Use the Auto Button to set the air purifier to
Auto Mode.
06. Air Quality Indicator
Color coded LED light indicates one of three
levels of Air Quality: Red (poor), Amber (fair),
and Blue (good).
07. Fan Speeds
Indicates the current fan speed.
CLEANING CARE
Cleaning the Filters:
Use a vacuum cleaner or soft brush to clean
03
the Pre-Filter
• If it is excessively soiled, rinse in room
temperature water.
• Do not use detergent or soap.
• Allow the filter to completely dry for 24
hours or more before using.
• Intervals between filter cleaning may vary
depending on the air quality.
• Do not use hot water over 104
fluids such as paint thinner.
N O T I C E
• When cleaning the unit, always unplug the
power cord first and then wait until the unit
has cooled down.
• Never disassemble, repair, or modify the unit
yourself.
• Do not use flammable sprays or liquid
detergents.
• Do not allow children to clean or maintain the
unit.
• Before cleaning or maintaining, ensure unit is
unplugged.
• Do not use benzene, alcohol, or other
volatile fluids, which may cause damage or
discoloration.
Contact Winix for
product related inquiries and
customer service
To expedite service, please specify the model name and number, the nature of the
problem, your contact information, and your address.
04 06 07
05 08
08. Sleep Mode
When Sleep Mode is activated, the Air Quality
Indicator LED light is disabled.
• Fan speed will automatically set to
minimum speed (lower than 'Low') which
will be nearly silent.
09. Fan Speed Button
Use the Fan Speed Button to set the desired
Fan Speed. Fan Speeds cycle in this sequence:
Low(1), Medium(2), High(3), Turbo(4), Sleep
Low(1).
10. Power Indicator
LED light indicates when the air purifier is
turned on.
11. Power Button
Turns the unit on or off. During the first 30
seconds of powering up, the Air Quality
Indicator will cycle through Blue, Amber and
Red colors.
• Smart Sensor takes approximately 4 minutes
to detect the air quality in the environment
before normal operation begins.
12. Light Sensor
When in Auto Mode, the light sensor detects
when to put the unit into Sleep Mode.
• Detects the amount of ambient light in the
environment.
Cleaning the Exterior & Interior:
Wipe with a soft damp cloth using room
temperature water.
• Afterwards, wipe it down with a clean, dry
cloth.
Open the front panel and clean the interior
with a vacuum cleaner.
• For optimal performance, clean every 1 - 2
months.
SPECIFICATIONS
o F or volatile
Model
Voltage
Power Rate
Verified
Room Size
Dimensions
Weight
Filter SKU
The exterior, design, and product specifications
may be changed without prior notice to improve
product performance.
• Dedicated Call Center: ☎ (877) 699-4649
• Website: www.winixamerica.com
10
09 11 12
,
D480 D360
AC 120 V / 60 Hz
90 W 65 W
498 sq.ft. 361 sq.ft.
17.2 in(W) 15 in(W) x
x 11 in(D) x 10.4 in(D) x
24.2 in(H) 21 in(H)
16.2 lbs 13.0 lbs
Filter D4 / Filter D3 /
SKU: 1712- SKU: 1712-
0100-02 0101-02
