hooga Wrap 01 User Manual

Red light therapy wrap
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

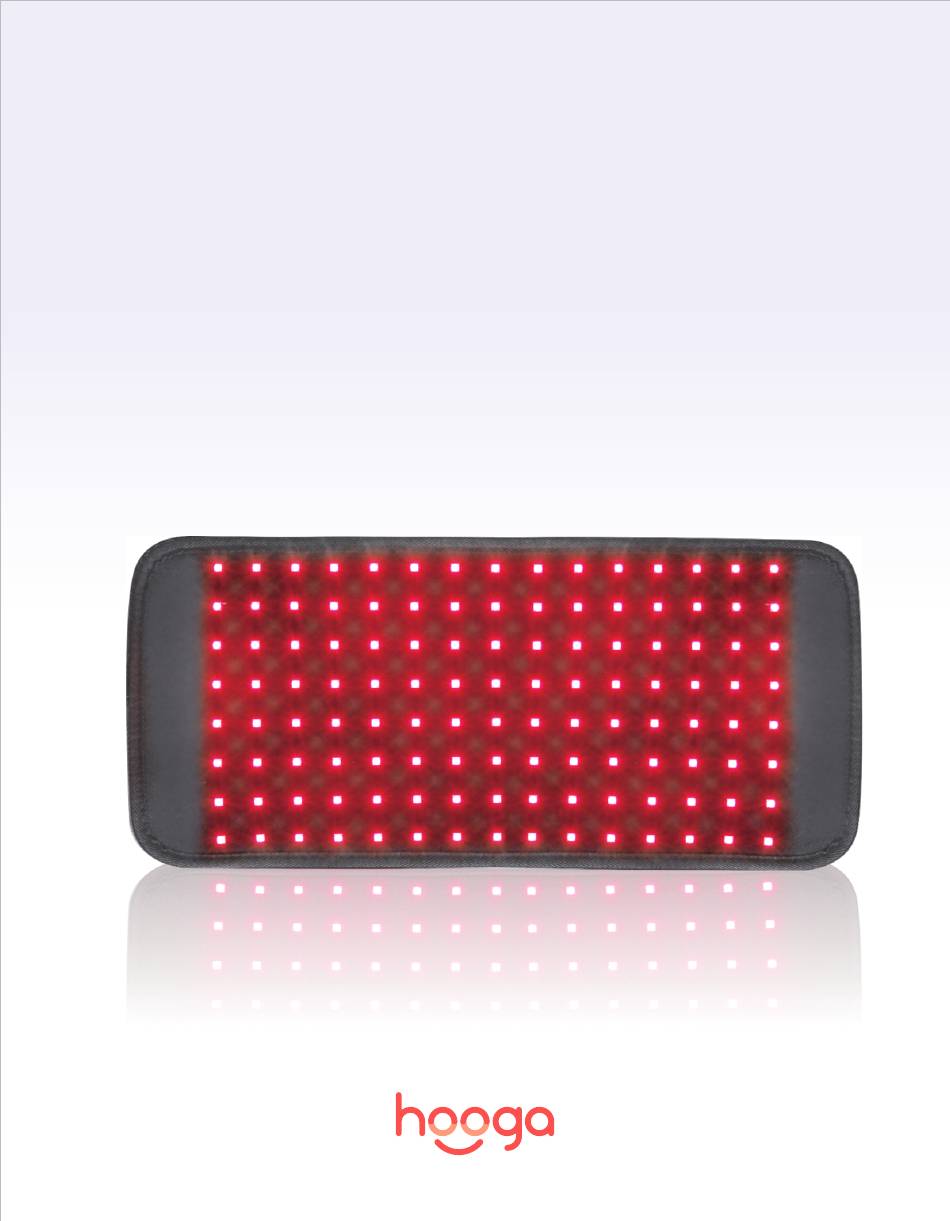

Red Light
Therapy Wrap
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wrap 01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for hooga Wrap 01

Summary of Contents for hooga Wrap 01

  • Page 1 Red Light Therapy Wrap USER MANUAL...

  • Page 2: What's Included

    What’s Included 120 LEDs Light Therapy Belt Adjustment Strap Plugs into DC Port on Remote Plugs into Control Table DC Power Port on Belt Wall Plug Display Screen Remote Plugs into Control DC Port on Remote Control Cable Plugs into USB Power Source DC USB Power Remote Control...
  • Page 3 WARNING: The Wrap cannot be used with a 12V USB charging adapter. Powering the Wrap Using an External Battery The Hooga Red Light Therapy Wrap supports the use of a 5V external battery, also known as a “power bank.” The power bank is not included, but may be purchased separately.

  • Page 4: Using The Remote

    Using the Remote Mode Setting: 660nm/ 850nm/ ALL Switch: On/ 10Hz Pulse/ OFF Brightness Settings: L1, L2, L3, L4, L5 Timer Settings: 5, 10, 15, 20, 25, 30 Mins Brightness Settings Five different brightness settings allow you to adjust the intensity of the Wrap.
  • Page 5 Tips for Using the Hooga Wrap • Place the Wrap in position before turning it on. • Turn off the Wrap before removing it from its position. • Do not use for more than 30 min at a time and let it rest for at least 2 hours between sessions.

  • Page 6: Product Specifications

    Product Specifications Model No. Hooga_Wrap_01 Color Grey Size 17.5" x 7.8" LEDs 120 1W LEDs Wavelengths 660nm 850nm Max. Irradiance 219.2 mW/cm² Weight 5.3 oz Input Voltage 100-240 AC External Battery Supported Shell Material Neoprene AC Wall Power Adapter Rated Input: AC 100-240V 50/60Hz Rated Output: DC 12V DC USB Adapter Cable Rated Input: DC 5V/4A...

  • Page 7: Equipment Maintenance

    Equipment Maintenance Cleaning and Disinfecting: Use only a soft, dry cloth to clean the exterior. Never use an abrasive cleanser or submerge in water or any other liquid. This device cannot be sterilized by water or any auto- clave method. Storage: Store the unit in a cool, dry place away from direct sunlight and extreme heat.
