hooga Dot Quick Start Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

Hooga Dot

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dot and is the answer not in the manual?

Questions and answers

Related Manuals for hooga Dot

Summary of Contents for hooga Dot

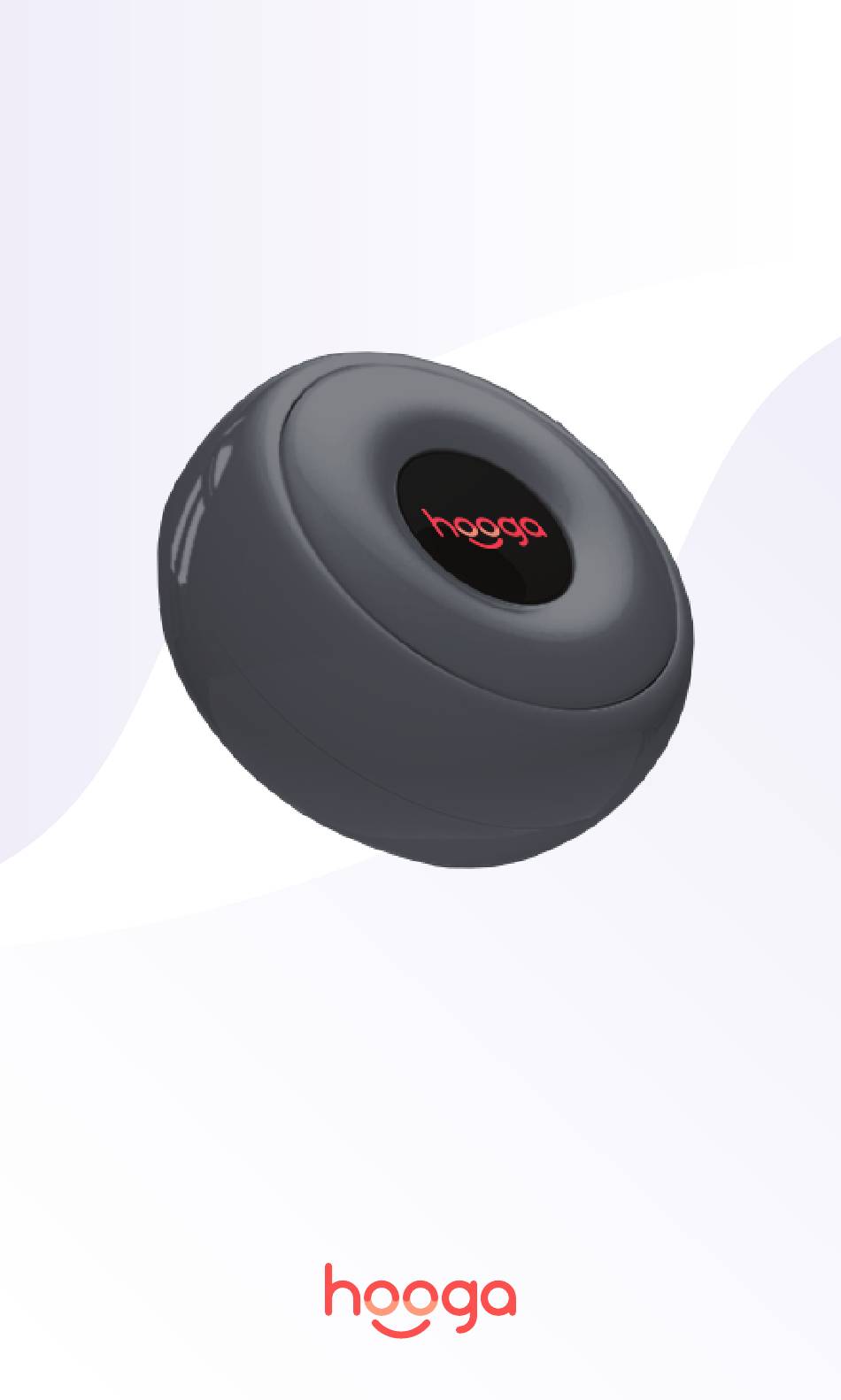

  • Page 1 Hooga Dot...

  • Page 2: Specifications

    Specifications DC5C/1A Input Voltage: Power Frequency: 50-60Hz 19PCS LED Quantity: Irradiance: >120 mW/cm2 Battery Capacity: 450MAH Dimensions: 1.75” x 0.8” 660nm(Red) and Wavelength: 850nm (Near-infrared) Net Weight: 1 oz IP20 IP Rate: Switch: Touch Switch Power: Warranty: 1 year Dimensions 1.75”...
  • Page 3 Touch Switch 3-in-1 Multifunction. Long Press to turn On/Off. Short Press to toggle between Red, NIR and Both. USB-C Charging Fast charging cable included. Can be plugged into any USB charging port. Charges in 1 hour. 19 LEDs High-power, medical grade LEDs.

  • Page 4: Modes Of Use

    3 Modes of Use Mode 1 Red 660nm Mode 2 Near Infrared 850nm Mode 3 Red 660nm and Near Infrared 850nm *The Hooga Dot has a memory function and when powered on it will start on the last mode used.

  • Page 5: What's Included

    What’s Included Sticker x 10 Hooga Dot Power cable x 1...

  • Page 6: How To Use

    Dot to your body for your treatment. Step 1: If using an adhesive ring for your treatment, peel off the small sticker ring and attach it to the Dot. Then peel off the larger sticker ring and attach the Dot to your body at the spot you wish to treat.
  • Page 7 Cautions Please read all instructions on how to operate the device before using. Do not use liquid or disinfectant to clean the device. Only use a dry cloth. Put it in a safe place to avoid improper use by children, and use it under the supervision of adults.

  • Page 8: Additional Notes

    When charging, red dots will illuminate to show charge status. When fully charged, the flashing red lights will change to solid blue. Long Press the Hooga logo on the top of the device to power off. Red lights on the top of the device will flash when the battery is getting low.
  • Page 9 Hooga Health http://www.hoogahealth.com contact@hoogahealth.com @hoogahealth...
