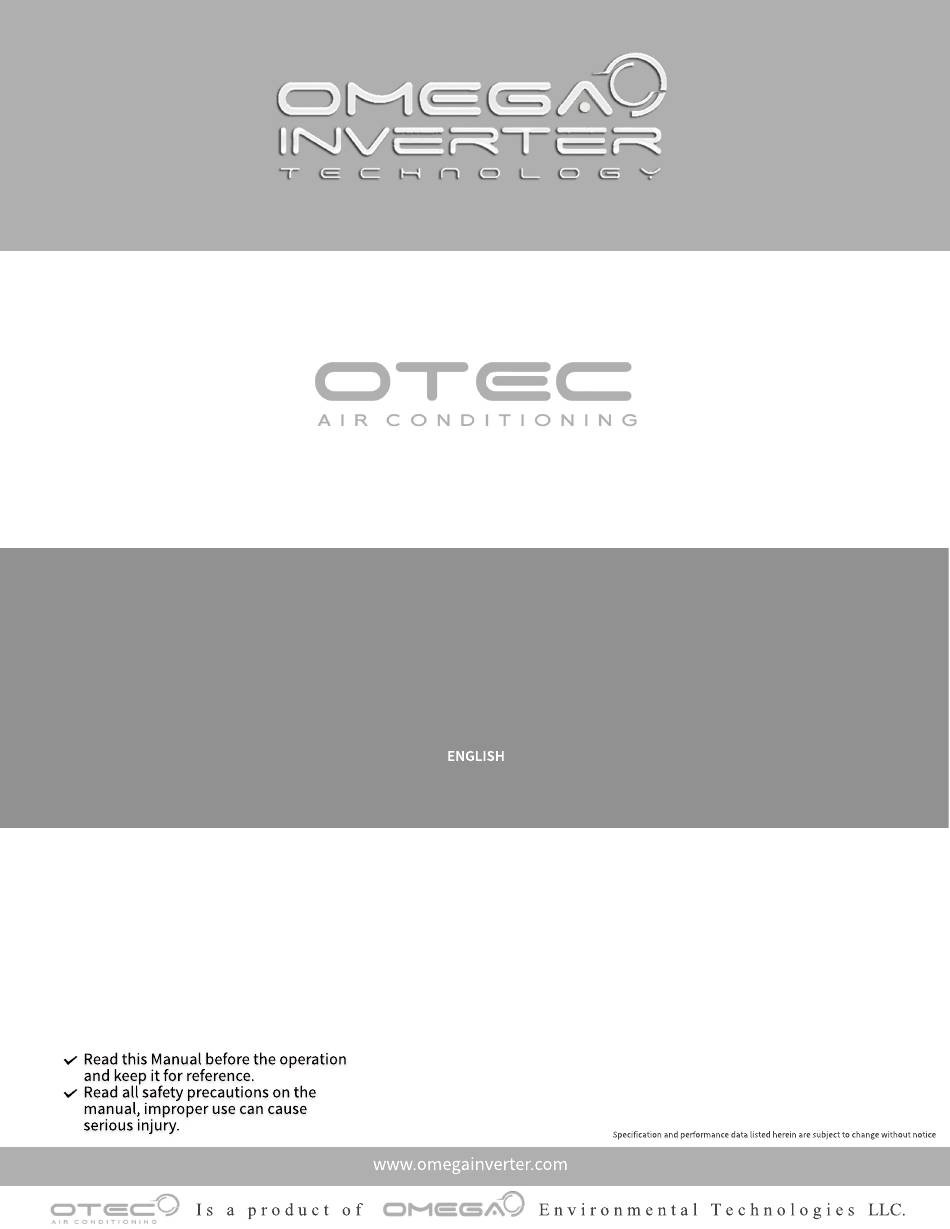

- Page 1 IEWV/ICHV Series High Wall Inverter Installation Manual...
-
Page 2: Table Of Contents
CONTENT 1. Installation Manual ..................1 1.1 Notices for Installation ..................1 1.2 Installation Dimension Diagram ................2 1.3 Installation Indoor Unit ..................4 1.4 Installation Outdoor Unit ..................8 1.5 Check after installation ..................12 1.6 Test operation ....................... 12 1.7 Configuration of connection pipe ............... -
Page 3: Installation Manual
Installation Manual Installation Manual 1. Installation Manual 1.1 Notices for Installation Caution 1.The unit should be installed only by authorized service center according to local or government regulations and in compliance with this manual. 2.Before installing, please contact with local authorized maintenance center. If the unit is not installed by the authorized service center, the malfunction may not be solved due to incovenient contact between the user and the service personnel. -
Page 4: Installation Dimension Diagram
Installation Manual Installation Manual 1.1.4 Safety Precautions for Electric Appliances 1. A dedicated power supply circuit should be used in accordance with local electrical safety regulations. 2. Don't drag the power cord with excessive force. 3. The unit should be reliably earthed and connected to an exclusive earth device by the professionals. 4. - Page 5 Installation Manual Installation Manual 1.2 Installation Dimension Diagram Space to the wall At least 15cm At least 15cm Space to the wall Drainage pipe...
-
Page 6: Installation Indoor Unit
Installation Manual Installation Manual 1.3 Installation Indoor Unit Step 1: Choosing installation location Step 2: Install wall-mounting frame 1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the level particles in the holes. 3. Fix the wall-mounting frame on the wall with tapping screws (ST4.2X25TA) and then Step 3: Open piping hole 1. -
Page 7: Step 4: Outlet Pipe
Installation Manual Installation Manual 2. Open a piping hole with the diameter of Φ55/Φ70 on the selected outlet pipe position. In order to drain smoothly, slant the piping hole on the wall slightly downward to the outdoor side with the gradient of 5-10°. Note: Indoor Outdoor... - Page 8 Installation Manual Installation Manual Step 6: Install drain hose 1. Connect the drain hose to the outlet pipe of indoor unit. 2. Bind the joint with tape. drain hose drain hose outlet pipe drain hose outlet pipe tape insulating pipe ●...
- Page 9 Installation Manual Step 8: Bind up pipe 1. Bind up the connection pipe, power cord and drain hose with the band. 2. Reserve a certain length of drain hose and power cord for installation when binding them. When binding to a certain degree, separate the indoor power and then separate the drain hose.
-
Page 10: Installation Outdoor Unit
Installation Manual 1.4 Installation Outdoor Unit Step 1: Fix the support of outdoor Select it according to the actual installation situation 1. Select installation location according to the house structure. 2. Fix the support of outdoor unit on the selected location with expansion screws. Note: outdoor unit. - Page 11 Installation Manual Step 4: Connect indoor and outdoor pipe 1. Remove the screw on the right handle of 2. Remove the screw cap of valve and aim outdoor unit and then remove the handle. the pipe joint at the bellmouth of pipe. liquid valve gas valve handle...
- Page 12 Installation Manual Step 6: Neaten the pipes 1. The pipes should be placed along the wall, bent reasonably and hidden possibly. Min.semidiameter of bending the pipe is 10cm. 2. If the outdoor unit is higher than the wall hole, you must set a U-shaped curve in the pipe before pipe goes into the room, in order to prevent rain wall from getting into the room.
-
Page 13: Step 7: Vacuum Pumping
Installation Manual Installation Manual Step 7: Vacuum pumping Use vacuum pump liquid valve piezometer 1. Remove the valve caps on the liquid valve gas valve and gas valve and the nut of refrigerant refrigerant valve cap charging vent. charging vent 2. -
Page 14: Check After Installation
Installation Manual Installation Manual 1.5 Check after installation Check according to the following requirement after finishing installation. Items to be checked Possible malfunction The unit may drop, shake or emit noise Have you done the refrigerant leakage test? capacity. It may cause condensation and water dripping. Is water drained well? It may cause condensation and water dripping. -
Page 15: Configuration Of Connection Pipe
Installation Manual Installation Manual 1.7 Configuration of connection pipe 1. Standard length of connection pipe ● 5m, 7.5m, 8m. 2. Min. length of connection pipe is 3m. 3. Max. length of connection pipe and max. high difference. Max length Max height Max length Max height Cooling capacity... -
Page 16: Pipe Expanding Method
Installation Manual Installation Manual 1.8 Pipe expanding method Improper pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps: A: Cut the pipe pipe pipe cutter leaning uneven burr B: Remove the burrs Remove the burrs with shaper and prevent the burrs from getting into the pipe. -
Page 17: Function And Control
Function and Control 2. Function and Control 2.1 Remote Controller Operations : Timer function : Auto mode : Sleep function : Cooling mode : Quiet function : Dry mode : Light function : Fan mode : Smart function : Heating mode : Up&down swing : Health function : Left&right swing... -
Page 18: On/Off Button
Function and Control ON/OFF button Press this button can turn on or turn off the air conditioner. MODE button Press this button to select your required operation mode. Auto Cool Heat ● When selecting auto mode, air conditioner will operate automatically according to ex-factory setting. -
Page 19: Turbo Button
Function and Control TURBO button Press this button to turn on or turn off the turbo function in cool/heat/fan mode. Note: ● Press "FAN" button the unit will quit this function. ● This function is no use in auto mode or dry mode. button Press "... - Page 20 Function and Control SLEEP button Press this button to turn on or turn off the Sleep function under cool, heat, dry mode. When Sleep function is on, " " icon is displayed on remote control. Note: ● This function is off as defaulted after power on. ●...
-
Page 21: Child Lock Function
Function and Control button Press this button to turn on or turn off the SMART function. When smart function is on, " " icon is displayed on remote control. For more details, please see for Smart APP User Guide. Child lock function Press "... - Page 22 OMEGA IEWV(CHV) - High Wall Inverter Installation Manua info@otecomega.com info@otecvrf.com www.otecomega.com www.otecvrf.com IEWV(CHV)I3A-IM1Y0622...
