Signature Design by Ashley B100-21 Assembly

Bed Frame Assembly
USE WITH B100-21, B100-31, B100-66
INCLUDED PARTS
1
FOR ALL MODELS
Side Rail Assembly with Cross Arms
2 pcs
End Caps
2 pcs
FOR B100-21
Spin Glides with Plastic Sockets
4 pcs
FOR B100-31
Center Rail (not used for Twin)
1 pcs
Screws
Nuts
Plastic Glides
1 pcs
Spin Glides with Plastic Sockets
4 pcs
SHOWN FOR REFERENCE: B200-21, QUEEN
SHOWN FOR REFERENCE: B100-31, QUEEN
REV: 07.10.24
2
6
FULL
3
Twin
Full
Queen
5
7
QUEEN
8

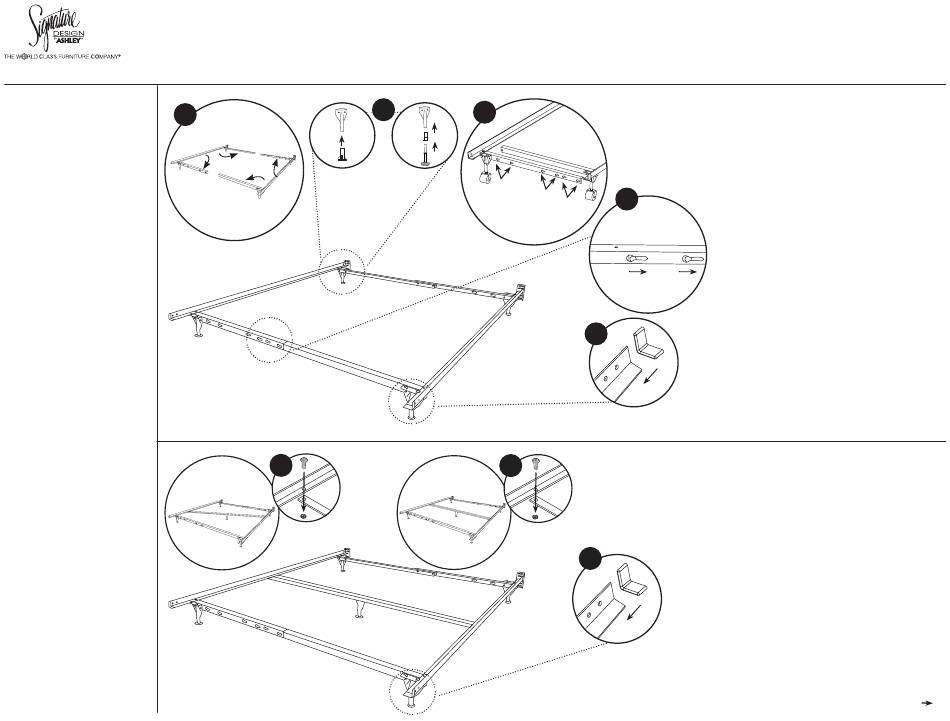

B100-21, B100-31, B100-66:
1. Set side rail assemblies out with
headboard brackets at the same end.
Swing out cross arms from the side rails
to a 90° angle.
4 2. Depending on the model purchased,
install glides AND / OR spin glides with
plastic sockets onto the legs.
3. B100-21, B100-31: Locate the keyholes
on the cross arms needed for your
appropriate size bedding. Overlap the
cross arms and insert rivets on cross arms
into the keyholes selected.
4. Slide the cross arms away from each
other to lock the position. Repeat steps 3
& 4 at the other end of the bed.
5. B100-21 & TWIN B100-31: Slip end caps
over the foot ends of the side rails. Your
frame is now ready to use.
B100-31 FULL & B100-31 QUEEN:
6. B100-31 FULL: Align the center rail's holes
with the holes to the right of the middle
of the side rail. Center rail should be
diagonal. Secure with screws and nuts.
Continue to Step 8.
7. B100-31 QUEEN: Align the center rail's
holes with the middle of the side rails.
Secure with screws and nuts. Continue
to Step 8.
8. Slip end caps over the foot ends of the
side rails. Your bed frame is now ready
to use.
FOR B100-66 CONTINUE TO NEXT PAGE
