McIntosh C2300 VACUUM TUBE PREAMPLIFIER - annexe 2 Manual

Tube preamplifier input and control connection diagram

Download this manual

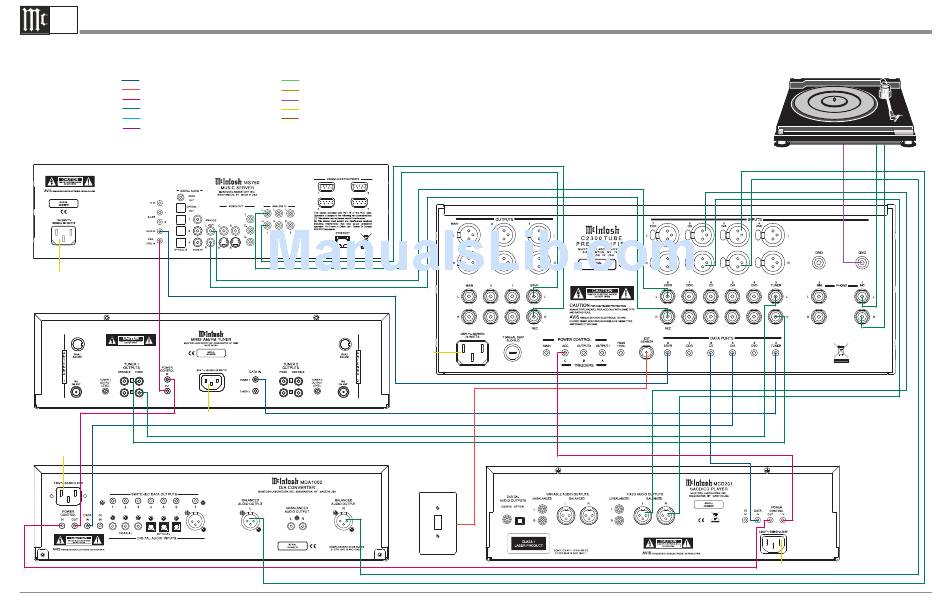

C2300 Tube Preamplifier Input and Control Connection Diagram

Note: Refer to the C2300 Owner's Manual page 9 for additional connection information.

Connection Legend:

Data Cable*-

Digital Signal Cable -

Sensor/Keypad Cable -

RS232 Cable -

Power Control Cable* -

Ground Wire -

Audio Signal Cable -

AC Power Cords -

Video Signal Cable -

Loudspeaker Cable -

RF Signal Cable -

2 conductor shielded with 1/8 inch stereo mini phone plug on each end.

McIntosh Music Server

Connect to AC Outlet

McIntosh AM/FM Tuner

Connect to AC Outlet

Connect to

AC Outlet

McIntosh D/A Converter

McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549

Connect to

AC Outlet

McIntosh SACD/CD Player

McIntosh

Sensor

Part No. 04106000

Turntable with

Moving Coil

Cartridge

Connect to AC Outlet

Page 1 Connect to AC Outlet Connect to AC Outlet Connect to AC Outlet McIntosh D/A Converter McIntosh SACD/CD Player McIntosh Sensor Connect to AC Outlet McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549 Part No. 04106000...
Page 2 2 conductor shielded with 1/8 inch stereo mini phone plug on each end. McIntosh Power Amplifier - Secondary Room (Partial View) Connect to AC Outlet McIntosh Power Amplifier (Left Channel) - Main Room McIntosh Power Amplifier (Right Channel) - Main Room (Partial View) (Partial View)

C2300
