INTRODUCTION
Please read and understand these instructions completely before installation to avoid possible injury, or damage to the accessory or vehicle.
NOTICE:
Installation of this kit requires a torque wrench and should be performed by an autho rized Yamaha dealer or other qualified mechanic.
PARTS LIST
| No. | Part Number | Description | Qty |
| * | B16-F48A0-V0 | Rear Rack Extension Kit | -- |
| 1 | * | Rear Rack Extensio | 1 |
| 2 | * | M6X40mm Button Head Socket Cap Bolt | 4 |
| 3 | * | Spacer | 4 |
* Part supplied with kit only and not available separately.
PREPARATION
- Place vehicle on a secure and level surface.
- Set the parking brake.
- Clean all mounting surfaces before installation.
INSTALLATION
- Position the rack extension
![]()

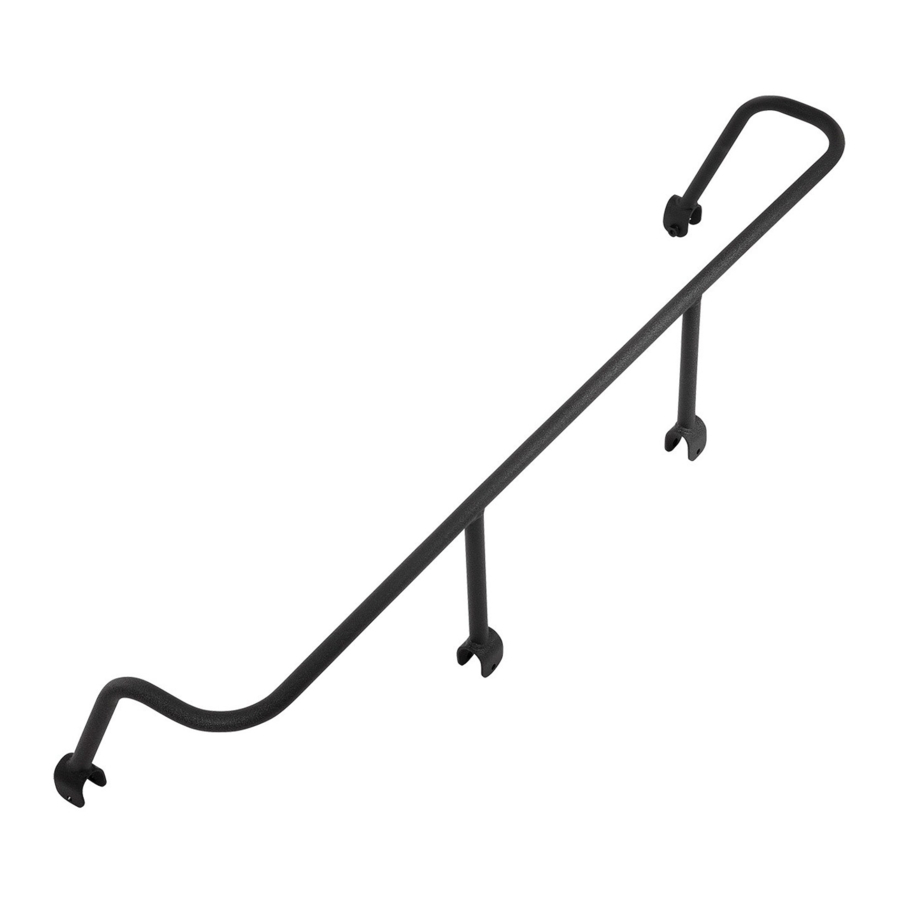

on the rack. The U-clamps on the rack extension fit over the rear rack tubes as shown in Fig. 1.
![INSTALLATION]( "Yamaha - Kodiak 700 - INSTALLATION")
- Insert a Spacer
![]()
and M6X40mm Button Head Socket Cap Bolt ![]()
into the four clamp fittings. - Torque the button head bolts to 8Nm (.8mkgf, 5.9 ft.-lbs).
on the rack. The U-clamps on the rack extension fit over the rear rack tubes as shown in Fig. 1.
and M6X40mm Button Head Socket Cap Bolt
into the four clamp fittings.MAINTENANCE
Check mount bolts and re-torque if necessary..
CARE AND CLEANING
Wash with a mild soap and water solution using a soft cloth.
CUSTOMER SERVICE
For further information see your Yamaha dealer.
ESTIMATED TIME TO INSTALL: 0.3 HRS.
