INSTALLATION INSTRUCTIONS
0
Rear Rack Extension Kit
DESCRIPTION:
B16-F48A0-V0
PART NUMBER:
:
Kodiak 700, Grizzly 700
MODEL
Please read and understand these instructions
completely before installation to avoid possible
injury, or damage to the accessory or vehicle.
NOTICE:
Installation of this kit requires a torque wrench
and should be performed by an authorized
Yamaha dealer or other qualified mechanic.
PARTS LIST:
No.
Part Number
*
B16-F48A0-V0
①
*
②
*
③
*
* Part supplied with kit only and not available separately.
5/2015
14-0689
2014 Yamaha Motor Corporation, U.S.A. All rights reserved.
①

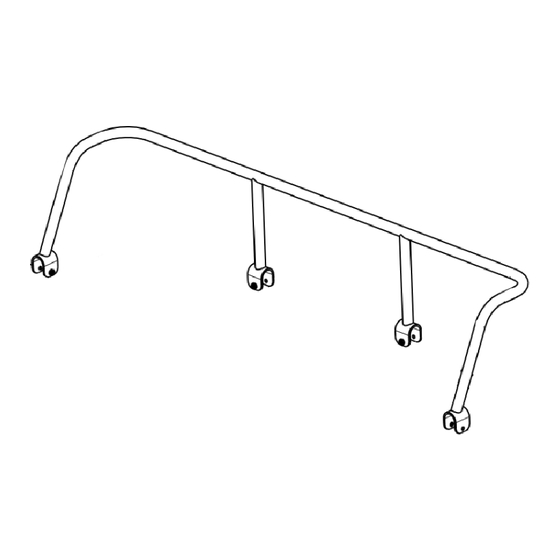

Rear Rack Extension Kit
Rear Rack Extension
M6X40mm Button Head Socket Cap Bolt
Spacer
Page 1 of 2
WARRANTY INFORMATION:
Genuine Yamaha accessories are covered by a 1-
year limited warranty against defects in material or
workmanship. Labor for replacement of defective
components is not covered. See your Yamaha
dealer for a copy of the warranty statement.
DEALER OR INSTALLER:
These instructions contain important information for
future reference and must be given to the customer.
②
Description
B16-F48A1-V0_2 REAR RACK EXTENSION
③
Qty
--
1
4
4
Advertisement
Related Manuals for Yamaha B16-F48A0-V0
Summary of Contents for Yamaha B16-F48A0-V0
- Page 1 PART NUMBER: Kodiak 700, Grizzly 700 MODEL WARRANTY INFORMATION: Genuine Yamaha accessories are covered by a 1- Please read and understand these instructions year limited warranty against defects in material or completely before installation to avoid possible workmanship. Labor for replacement of defective injury, or damage to the accessory or vehicle.
- Page 2 Wash with a mild soap and water solution using a soft cloth. ③ CUSTOMER SERVICE: For further information see your Yamaha dealer. ESTIMATED TIME TO INSTALL: 0.3 HRS. 5/2015 14-0689 Page 2 of 2 B16-F48A1-V0_2 REAR RACK EXTENSION 2014 Yamaha Motor Corporation, U.S.A. All rights reserved.
