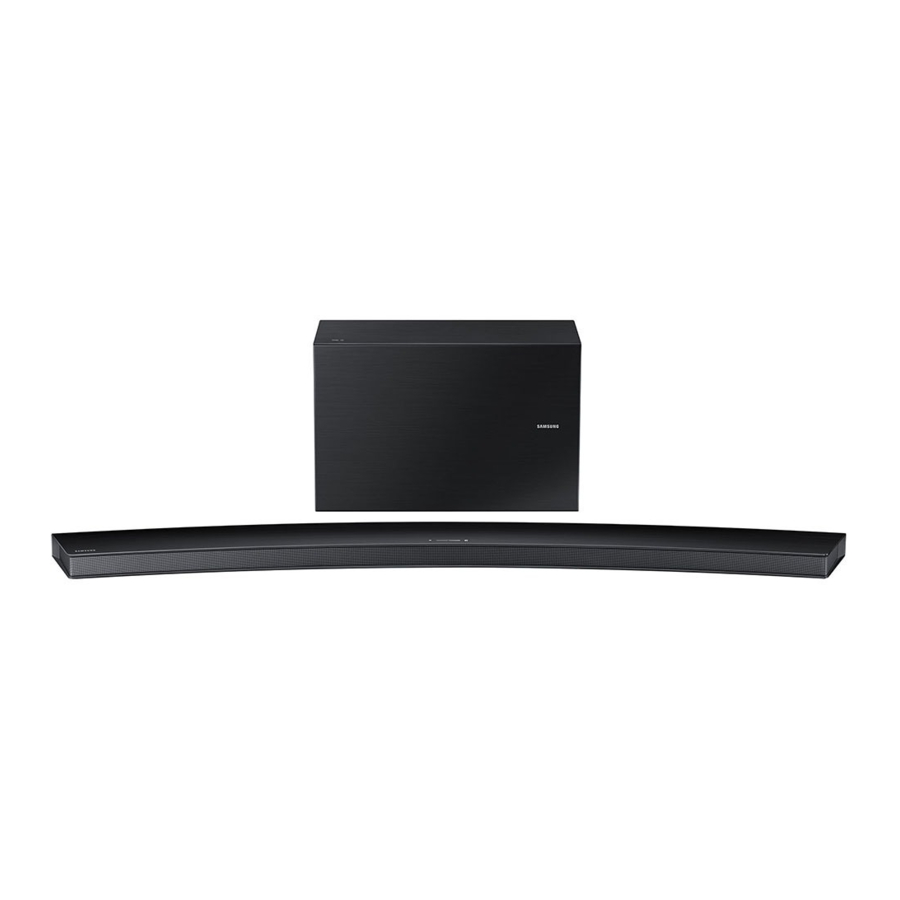

Samsung HW-J8500, R HW-J8501R Manual
![]()
CHECKING THE COMPONENTS
![]()
- Use Cat 7 (*STP Type) cable for the connection.
* Shielded Twist Pair
CONNECTING ELECTRICAL POWER
Use the power components (
) to connect the power supplies in the following order: Subwoofer > Soundbar Main Unit
![Samsung - HW-J8500R - Connecting Electrical Power Connecting Electrical Power]()
- For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of Soundbar main unit)
- Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.
CONNECTING THE SUBWOOFER TO THE SOUNDBAR MAIN UNIT
You can enjoy rich bass tones and better sound quality by linking the subwoofer to the Soundbar main unit.
![]()
The Soundbar main unit and subwoofer should link (connect wirelessly) automatically when the Soundbar main unit and subwoofer are turned on. When auto-connection is complete, the blue indicator on the top of the subwoofer stops blinking and glows blue continuously.
- If the indicator on the top of the subwoofer displays in red or flashes in blue, the subwoofer has not automatically connected. If this occurs, follow the directions below to connect the subwoofer manually.
![]()
Before you begin, put the battery into the remote.
- Plug the power cords of the Soundbar main unit and subwoofer into an AC wall outlet.
- Press the ID SET button on the rear of the subwoofer for 5 seconds. The red indicator on the top of the subwoofer turns off and the blue indicator flashes rapidly.
![Samsung - HW-J8500R - Connecting the Subwoofer to the Soundbar Main Unit Connecting the Subwoofer to the Soundbar Main Unit]()
- Press the
button on your remote control for 5 seconds while the Soundbar main unit is turned OFF. - The ID SET message appears on the display of the Soundbar main unit for a short period of time, and then disappears.
![]()
- While the subwoofer's indicator is flashing blue, press the
button on your remote control or on the top of the Soundbar main unit to turn on the Soundbar main unit. - The connection is complete if the indicator on the top of the subwoofer stops flashing and glows continuously.
- If the connection process fails, the blue indicator will flash continuously. Go to Step 2 and start again.
CONNECTING TO YOUR TV
You can enjoy TV sound after connecting the Soundbar to your TV with or without a cable.
![]()
Before you begin, put the battery into the remote.
Method 1. Connecting with a Cable
![Samsung - HW-J8500R - Connecting to Your TV - Method 1 Connecting to Your TV - Method 1]()
- Connect the HDMI cable (not supplied) as in the picture above.
- TV ARC appears on display of the product and TV sound is output.
- If TV sound is not output, press the
button on the top of your Soundbar or the SOURCE button on the remote control to select the D.IN mode on Soundbar main unit display. Then, the D.IN mode is changed to TV ARC and TV sound is output. - If the Soundbar main unit display does not change to TV ARC, check the cable connections.
- You can conveniently control the volume of the Soundbar and interlock power supply.
Method 2. TV SoundConnect (Linking to a Samsung TV with Bluetooth)
- Turn on your Samsung TV and the Soundbar.
- Select TV mode in your Soundbar display by pressing the
button on the top of the Soundbar or the SOURCE button on your remote control. (Modes are displayed in the following order: D.IN → AUX → HDMI → BT → TV.)
![Samsung - HW-J8500R - Connecting to Your TV - Method 2 - Step 1 Connecting to Your TV - Method 2 - Step 1]()
- When the connection message shown below appears on the TV screen, select <Yes> with your TV remote control.
![Samsung - HW-J8500R - Connecting to Your TV - Method 2 - Step 2 Connecting to Your TV - Method 2 - Step 2]()
- The Soundbar outputs TV sound.
- If the TV SoundConnect linking process fails, navigate to SoundConnect in the TV's Sound menu, select Add New Device, and set Add New Device to ON. Then, try again.
- If your Soundbar is connected to your TV through TV SoundConnect, you can conveniently control the volume with the Soundbar's remote or the TV's remote.
- The TV SoundConnect (Soundshare) function is only available in some Samsung TV products released since 2012.
- If you want to disconnect the existing connection to your TV and establish a new connection to another TV, press the
button on your remote control for more than 5 seconds. - In the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.
- Do not place electronic devices or metallic objects on top of the product.e.g., Wired/wireless router, set-top box, or modem.
- Placing the product on the floor may degrade wireless network performance, depending on the floor material.
Method 3. Connecting to a Wireless Network
Installing the Samsung Multiroom App and Connecting Wirelessly
To install Samsung Multiroom app for the first time, follow the steps shown below.
- Press and hold the SPK ADD button on the rear of the Soundbar for more than 1 second.
- There is a notification sound and the message "ADD SPEAKER" appears on the Soundbar's main unit. Afterwards, the message "WIFI READY" appears when standby-for-connection mode activates.
- Connect your smart device (smart phone, tablet, etc.) to your wireless router.
![Samsung - HW-J8500R - Connecting to Your TV - Method 3 - Step 2 Connecting to Your TV - Method 3 - Step 2]()
- Install the Samsung Multiroom app on your smart device (smart phone, tablet, etc.).
![www.apple.com]()
![play.google.com]()
- Launch the Samsung Multiroom app.
![Samsung - HW-J8500R - Connecting to Your TV - Method 3 - Step 3 Connecting to Your TV - Method 3 - Step 3]()
- Complete the initial settings by following the instructions on the app screen.
- You must enter the password of your wireless router to connect your Soundbar to your wireless network through Samsung Multiroom app.
- If your wireless router has no designated password, the app completes the initial settings without asking you to enter a password.
Adding the Soundbar to an Existing Multiroom Audio System
If the Samsung Multiroom app is already installed for use with another multiroom audio device, follow these steps to add the Soundbar.
- Press and hold the SPK ADD button on the rear of the Soundbar for more than 1 second.
- There is a notification sound and the message "ADD SPEAKER" appears on the Soundbar's main unit. Afterwards, the message "WIFI READY" appears when standby-for-connection mode activates.
- Connect your smart device (smart phone, tablet, etc.) to your wireless router.
![]()
- Launch the Samsung Multiroom app.
- Touch
to go to the list of all speakers. - Select More > Add New Speaker in the app, and then follow the instructions on the app screen.
- To connect a different network, select No.
You must enter the password of your wireless router to connect your Soundbar to your wireless network through the Samsung Multiroom app.
If your wireless router does not have a designated password, the app completes the initial settings without asking you to enter a password.
Connecting the Soundbar to your Samsung Smart TV
You can connect your TV to the Soundbar through a wireless network and enjoy the TV sound.
![]()
Make sure that the TV and Soundbar are connected to the same network.
(How to check your Samsung TV network: Home menu g Network g Network Status)
Configuring Settings from your Samsung Smart TV
- To play sound via the Soundbar, make sure that your TV model supports the Multiroom feature (Samsung Smart TVs released after 2014).
- If the TV is disconnected from the wireless network due to a change to the input source of the Soundbar, use the TV menu to re-establish the connection.
- For TVs released in 2016
- Home menu > Settings (
) > Sound > Sound Output > Select [Samsung] HW-Jxxxx (Wi-Fi) - TV sound is output.
- For TVs released in 2015
- Home menu > Sound > Speaker List > Select [Samsung] HW-Jxxxx (Wi-Fi)
- TV sound is output.
- For TVs released in 2014
- Home menu > Sound > Speaker Settings > Select Multiroom Link - Settings > Soundbar+Surround
- From the Soundbar position, select "J8500" and select "OK".
- Home menu > Sound > Speaker Settings > Select TV Sound Output > Multiroom Link
- TV sound is output.
Connecting Samsung Multiroom Audio System to the Surround
You can enjoy three-dimensional sound in surround mode after connecting two Multiroom Audios and a Soundbar.
- Surround connection between a Multiroom Audio and a Soundbar is unavailable.
- Touch
to go to the list of all speakers. - Touch
on the right of the Soundbar model name. - Touch Surround Setup. Select Done after dragging the speaker to the desired location.
- Surround connection is completed.
- Refer to the web manual for connection between the TV and the surround.
CONNECTION VIA BLUETOOTH
You can connect a Bluetooth device to the Soundbar and enjoy music with stereo sound, all without wires!
- It is not possible to connect multiple Bluetooth devices at the same time.
![Samsung - HW-J8500R - Connection via Bluetooth Connection via Bluetooth]()
- Press the
button on the top of the Soundbar or the SOURCE button on the remote control to select BT. - Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user manual.)
- Select "[Samsung] HW-Jxxxx" from the list.
- When the connection is established between the Soundbar and Bluetooth device, the front display window of the Soundbar displays [Bluetooth device name] → BT.
- Play music on the connected device.
[If failed to connect to the Bluetooth device/If device searching is needed again]
- Delete the previous "[Samsung] HW-Jxxxx" found by the Bluetooth device and have it search for the Soundbar again.
- If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
- In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
- The Soundbar automatically turns off after 15 minutes in the Ready state.
- The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:
- If there is a strong electrical field around the Soundbar.
- If several Bluetooth devices are simultaneously paired with the Soundbar.
- If the Bluetooth device is turned off, not in place, or malfunctions.
- Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.
Disconnecting the Soundbar from the Bluetooth device
Press the SOURCE button on the remote control or the
button on the product's top to switch from BT to another mode or turn off the Soundbar.
- The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)
CONNECTING TO AN EXTERNAL DEVICE
You can enjoy sound from separate external devices such as a BD player/game console/set-top box, etc. by connecting them to your Soundbar.
![Samsung - HW-J8500R - Connecting to an External Device Connecting to an External Device]()
- Connect the HDMI cable (not supplied) as in the picture above.
- Press the
button on top of your Soundbar or the SOURCE button on your remote control to select HDMI mode. - The Soundbar shows HDMI on its display and output sound.
SOFTWARE UPDATE
Samsung may offer updates for the Soundbar's system firmware in the future.
Auto Update
The automatic update function is enabled on the Soundbar by default. Automatic firmware updates are searched for and performed if the Soundbar is connected to the Internet, irrespective of whether it is turned on or off.
- To use the Auto Update function, the Soundbar must be connected to the Internet.
The Wi-Fi connection to the Soundbar will be terminated if its power cord is disconnected or the power is cut off. If the power is cut off, turn on the Soundbar and reconnect it.
Updating with USB
If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar.
For more information about how to download update files, go to the Samsung Electronics website at (samsung.com/sec) > search for the model name > download the firmware from the customer support menu option. The option name can vary.
INSTALLING THE WALL MOUNT
Installation Precautions
- Install on a vertical wall only.
- Do not install the Soundbar system in a location with high temperature and/or humidity. Install the system on a stable wall that can bear the weight of the Soundbar main unit.
- Check the strength of the wall. To install the Soundbar system on a wall that may not bear the Soundbar main unit weight, reinforce the wall before installation. If this is not possible, install the system on another wall, one stable enough to bear the weight of the Soundbar main unit.
- Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.
- Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.
- Diameter: M5
- Length: 35 mm or longer recommended.
- Connect cables from the unit to external devices before you install it on the wall.
- Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.
For Soundbar Main Unit (Wallmount Components)
![]()
- Place the Soundbar as shown in the illustration, ensuring that none of the buttons touch the surface it is lying on. You can use the Soundbar's packaging to support its two ends.
- If the Holder-Foot (3 EA) and Holder-Support (2 EA) are attached, remove them.
![Samsung - HW-J8500R - Installing the Wall Mount - Step 1 Installing the Wall Mount - Step 1]()
- Fix Holder-Screw 1 (4 EA) and Holder-Screw 2 (for Soundbar main unit fixing) (4 EA) into the holes of the Soundbar tightly as shown in the illustration.
![Samsung - HW-J8500R - Installing the Wall Mount - Step 2 Installing the Wall Mount - Step 2]()
- Insert the Wall-Mount Screws into the 3 holes one by one to fix the Wall-Mount Bracket on the wall.
- Mount the Soundbar on the Wall-Mount Bracket in order of the following illustration (
).
![Samsung - HW-J8500R - Installing the Wall Mount - Step 1Installing the Wall Mount - Step 3 Installing the Wall Mount - Step 1Installing the Wall Mount - Step 3]()
- Fix the Holder-Fix Mount (for wall-mount fixing) to join the Wall-Mount Bracket with the Soundbar.
- Wall-Mount Screws are not provided.
- Since different types of wall-mount screws are required depending on your wall, you should check your wall before installation and purchase the appropriate wall-mount screws to use.
![]()
1 | ![]() Power | Turns the Soundbar on and off. |
2 | ![]() SOURCE | Press to select a source connected to the Soundbar. |
3 | ![]() Mute | Sets the volume temporarily to 0. Press again to cancel. |
4 | ![]() Volume | Adjusts the volume level of the unit. |
5 | ![]() Play/Pause | Press the button to pause a music temporarily. Press the button again to play the selected music. |
![]() Skip Forward | Selects the next file. |
![]() Skip Back | Selects the previous file. |
![]() Repeat | The Repeat function is available only when playing back music from Songs on phone or DMS of Samsung Multiroom app. - OFF-REPEAT: Cancels Repeat Playback.
- TRACK-REPEAT: Plays a track repeatedly.
- ALL-REPEAT: Plays all tracks repeatedly.
|
6 | ![]() Surround Sound | The Surround Sound function adds depth and a sense of space to sound. When this button is pressed, ON or OFF is repeatedly alternated. |
7 | ![]() SOUND CONTROL | You can select from TREBLE, BASS or AUDIO SYNC. - To control the volume of the treble or bass sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -3~+3 by using the
buttons. - If the video and audio between the TV and your Soundbar are not synchronized, select AUDIO SYNC in Sound Settings, and then set audio delay between 0~300 milliseconds by using the
buttons. |
8 | ![]() SOUND EFFECT | You can select from 6 sound modes: STANDARD, MUSIC, CLEAR VOICE, SPORTS, MOVIE, and NIGHT. - NIGHT Mode
When changing a channel or music source, the volume difference between different music input sources is automatically adjusted to be suitable for listening. |
9 | ![]() Anynet+ | You can turn the Anynet+ and Auto Power Link on or off. The Anynet+ and Auto Power Link work in reverse to each other. - Anynet+: if connected through HDMI cable, you can control your Soundbar with the Samsung TV remote control.
- Auto Power Link: the Soundbar is automatically turned on when turning on the TV connected through optical input.
|
10 | ![]() WOOFER | You can adjust the subwoofer volume between -12, or -6~+6 levels. |
11 | ![]() STREAMING MUSIC | You can enjoy internet radio through Streaming Music. You can select your desired station from 3 internet radio stations by default. To use Streaming Music function, you should connect your Soundbar to a network. |
Inserting Battery before using the Remote Control
- Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure below.
![]()
- Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery. Put the battery cover on, and then align the '●' marks side by side as shown in the figure below.
![]()
- Use a suitable coin to turn the remote control battery cover clockwise as far as it will go to fix it in place.
![]()
TROUBLESHOOTING
Before seeking assistance, check the following.
The unit will not turn on.
Is the power cord plugged into the outlet?
- Connect the power plug to the outlet.
A function does not work when the button is pressed.
Is there static electricity in the air?
- Disconnect the power plug and connect it again.
Sound is not produced.
Is the Mute function on?
- Press the
(Mute) button to cancel the function.
Is the volume set to minimum?
The remote control does not work.
Is the battery drained?
- Replace with new battery.
Is the distance between the remote control and Soundbar main unit too far?
- Move the remote control closer to the Soundbar main unit.
The TV SoundConnect (TV pairing) failed.
Does your TV support TV SoundConnect?
- TV SoundConnect is supported by some Samsung TVs released from 2012 on. Check your TV to see if it supports TV SoundConnect.
Is your TV firmware the latest version?
- Update your TV with the latest firmware.
Does an error occur when connecting?
- Contact the Samsung Call Centre.
- Reset TV SoundConnect and connect again. To reset the TV SoundConnect connection, press and hold the
button for 5 seconds.
The red LED on the subwoofer blinks and the subwoofer is not producing sound.
Your subwoofer may not be connected to the Soundbar main unit.
- Try to connect your subwoofer again.
The subwoofer drones and vibrates noticeably.
Try to adjust the vibration of your subwoofer.
- Press the WOOFER button on your remote control to adjust its value (between -12, -6 ~ +6).
IMPORTANT NOTE ABOUT SERVICE
- Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
- An administration fee may be charged if either:
- An engineer is called out to your home at your request and there is no defect in the product.
- You bring the unit to a repair centre and there is no defect in the product.
- You will be advised of the amount of the administration fee before any work is done or a home visit is made.
SPECIFICATIONS
GENERAL | Weight | Soundbar M ain Unit | 5.0 kg |
Subwoofer (PS-WJ8500R/PS-WJ8501R) | 10.6 kg |
Dimensions (W x H x D) | Soundbar M ain Unit | 1450.0 x 60.0 x 185.0 mm |
Subwoofer (PS-WJ8500R/PS-WJ8501R) | 500.0 x 332.0 x 181.0 mm |
Operating Temperature Range | +5°C to +35°C |
Operating Humidity Range | 10% to 75% |
AMPLIFIER | Rated Output Power | Soundbar M ain Unit | 21W x 9, 8 ohm, THD≦10% |
Subwoofer (PS-WJ8500R/PS-WJ8501R) | 161W, 3 ohm, THD≦10% |
- Nominal specification
- Design, specifications and App screen are subject to change without prior notice.
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
- For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of Soundbar main unit)
Precaution: The product will restart automatically if you turn on/off Wi-Fi/Ethernet.
Overall Standby Power Consumption (W) (All the network ports are "ON" condition) | 2.9W |
Wi-Fi/Ethernet | Port deactivation method | Press Wi-Fi SETUP button on the product for 30 seconds to turn Wi-Fi/Ethernet On/Off. |
Bluetooth | Port deactivation method | Press SPK ADD button on the product for 30 seconds to turn Bluetooth On/Off. |
![]()
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
![]()
RISK OF ELECTRIC SHOCK
DO NOT OPEN
![shock hazard]() | This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product. |
![warning]() | This symbol indicates that important literature concerning operation and maintenance has been included with this product. |
![]() | Class II product: This symbol indicates that it does not require a safety connection to electrical earth (ground). |
![]() | AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage. |
![]() | DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage. |
![]() | Caution, Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information. |
![]()
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
![]()
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
- This apparatus shall always be connected to a AC outlet with a protective grounding connection.
- To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
![]()
- Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
- To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.
PRECAUTIONS
- Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the rear of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
- During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
- Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.
- Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.
- The battery used with this product contains chemicals that are harmful to the environment.
Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.
![]()
DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD.
The remote control supplied withthis product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
www.Samsung.com
Documents / Resources
References
Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download Samsung HW-J8500, R HW-J8501R Manual
Need help?
Do you have a question about the HW-J8500R and is the answer not in the manual?
Questions and answers
