Ecotron DT-703 Quick Manual

DT-703
Quick Guide

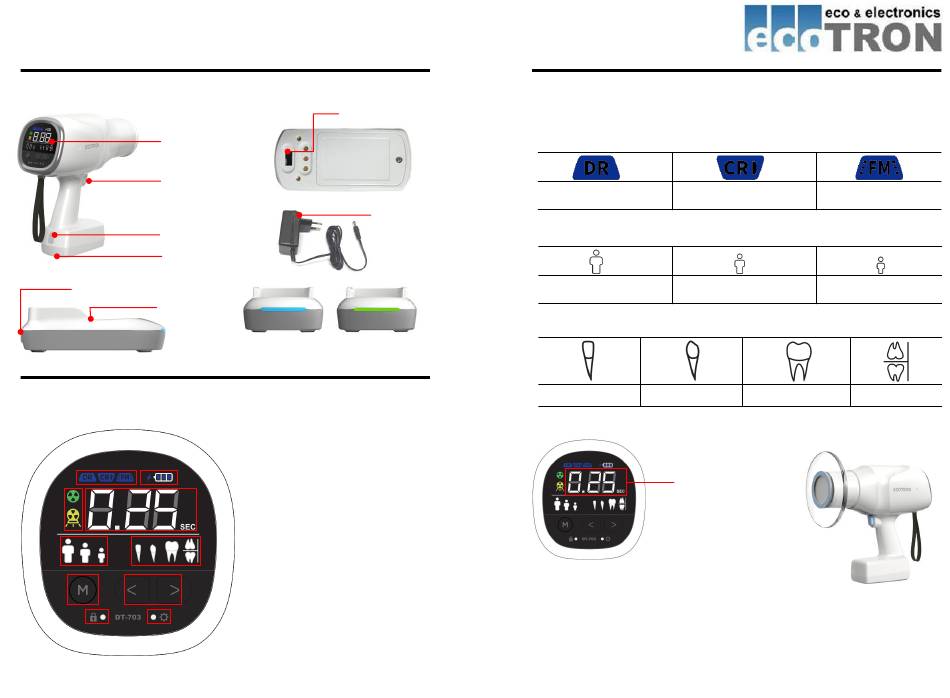

MAIN BODY PART NAME
Control Panel
Exposure
Button
Exposure SW
Connect Port
Power SW
Battery Charger Connect Port
Cradle
CONTROL PANEL
① ②
⑤
③
④
⑥
⑧ ⑨
⑩ ⑪
Power SW
Battery
Charger
Charging
Charging
full or wait
① Sensor mode selection
② Battery charging & level
③ X-ray ready indicator
④ X-ray exposure indicator
⑤ X-ray exposure time
⑥ Patient type selection
⑦ Tooth type selection
⑦
⑧ Enter
⑨ L & R adjustment and
movement
⑩ Exposure button rock
indicator
⑪ User option setting
indicator
DT-703 USAGE
1) Turn on the power switch
2) Select the sensor mode (Enter key after moving L & R adjustment key)
Digital Radiography Computed Radiography
3) Select the patient type (Enter key after moving L & R adjustment key)
Adult (Big) Adult (Normal)
4) Select the tooth type (Enter key after moving L & R adjustment key)
Incisor Canine
5) Setting exposure time (Enter key after moving L & R adjustment key)
0.02 – 0.5sec
(0.01 step)
6) Press the exposure button for
X-ray irradiation
※ Do not move the patient while irradiating the X-ray
※ Press the exposure button until the X-ray exposure indicator turns off
and the irradiation beep sound stops
Film
Child
Molar / Premolar Bitewing
