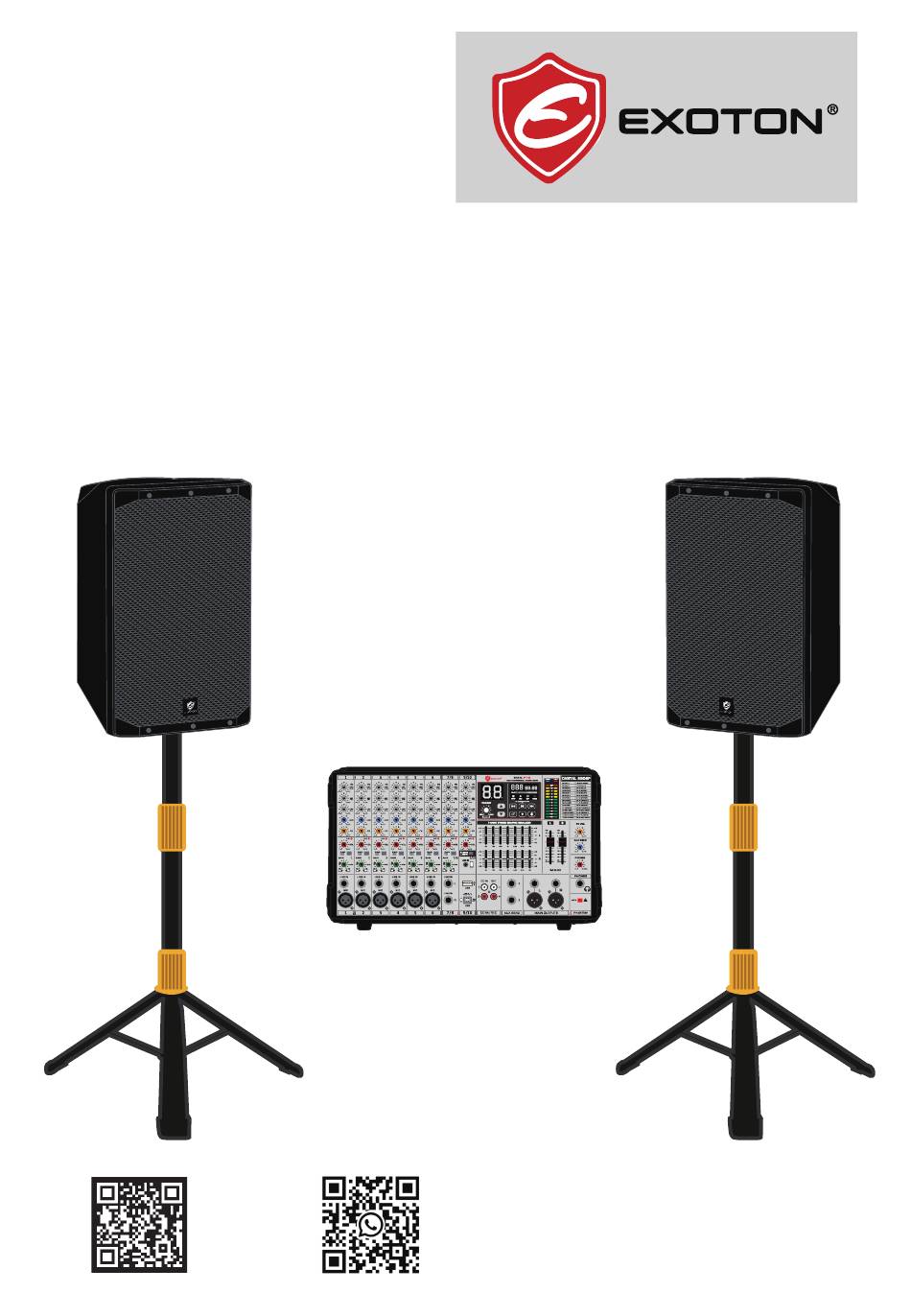

- Page 1 MX-P12 EARL SERIES 12 inch PA System with Powered 10 channel Mixer MX-P12 EARL SERIES User’s Manual FOR MORE INFORMATION, PLEASE FOLLOW Scan for instructions EXOTON'S SOCIAL MEDIA PLATFORM.
-
Page 2: Table Of Contents
12 inch PA System with Powered 10 channel Mixer CONTENTS IMPORTANT SAFETY INSTRUCTIONS INTRODUCTION POWERED MIXER FEATURES FRONT PANEL SECTION FEATURES 03-06 CONNECTING WITH BLUETOOTH MIXER CONNECTED TO PASSIVE SPEAKERS INSTRUCTIONS FOR USING THE STAND EMX-P10 MIXER SIZE MX-P12 SPEAKER SIZE TO PURCHASE ADDITIONAL GEAR AND ACCESSORIES SERVICE AND REPAIR WARRANTY INFORMATION... -
Page 3: Important Safety Instructions
1.0 IMPORTANT SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED PERSONNEL The lightning flash with arrowhead symbol, within an equilateral triangle,is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 4: Introduction
2.0 INTRODUCTION Congratulations on your purchase of the MX-P12 EARL Series Powered 10 Channel Mixer. EXOTON BARON series have an attractive impact-resistant design. The molded enclosure is made of highly durable polypropylene, which is designed for parties, meetings, indoor and outdoor performances. -
Page 5: Front Panel Section Features
3.0 FRONT PANEL SECTION FEATURES... - Page 6 1. EQ Knobs (HIGH, MID, LOW): Adjust the high, mid, and low frequencies for each channel, with a range of ±15dB. 2. AUX Knob: Controls the volume sent to external effects processors or auxiliary equipment. 3. FX Knob: Control the volume sent to the internal effects processor. 4.
- Page 8 1.Digital Display: The left side shows the current effect number (1–99 built-in effects), while the right side typically displays the track number and track time. 2.PARAM Knob: Adjust parameters for the selected effect (e.g., reverb, delay). Turn the knob to set the effect level from minimum (MIN) to maximum (MAX).
-
Page 9: Connecting With Bluetooth
1. Activate the BT-function on your device (Mobile phone, tablet etc.) from which you want to play the music. See the operating instructions for that device. 2. Press the "1" button to activate Bluetooth. 3. Select "EXOTON" from the Bluetooth list on your device to connect. 4.1 MIXER CONNECTED TO PASSIVE SPEAKERS... -
Page 10: Instructions For Using The Stand
5.0 INSTRUCTIONS FOR USING THE STAND 3. Turn the yellow tightening 1. Remove the stand and place 2. Open the bottom triangular knob at the bottom clockwise it on a stable surface. stand. to secure the triangular stand. 4. Extend the center pole to the 5. -
Page 11: Emx-P10 Mixer Size
6.0 EMX-P10 MIXER SIZE 13.19in 14.57in 19.88in 6.1 MX-P12 SPEAKER SIZE 24.41in 13.58in 13.78in... -
Page 12: To Purchase Additional Gear And Accessories
Because doing so would void all warranties. 7. 2 WARRANTY INFORMATION EXOTON is committed to providing the best warranty service for each product. From the date of original purchase, EXOTON provides a warranty of three months for any material or workmanship problems arising out of strict compliance with the instructions.
