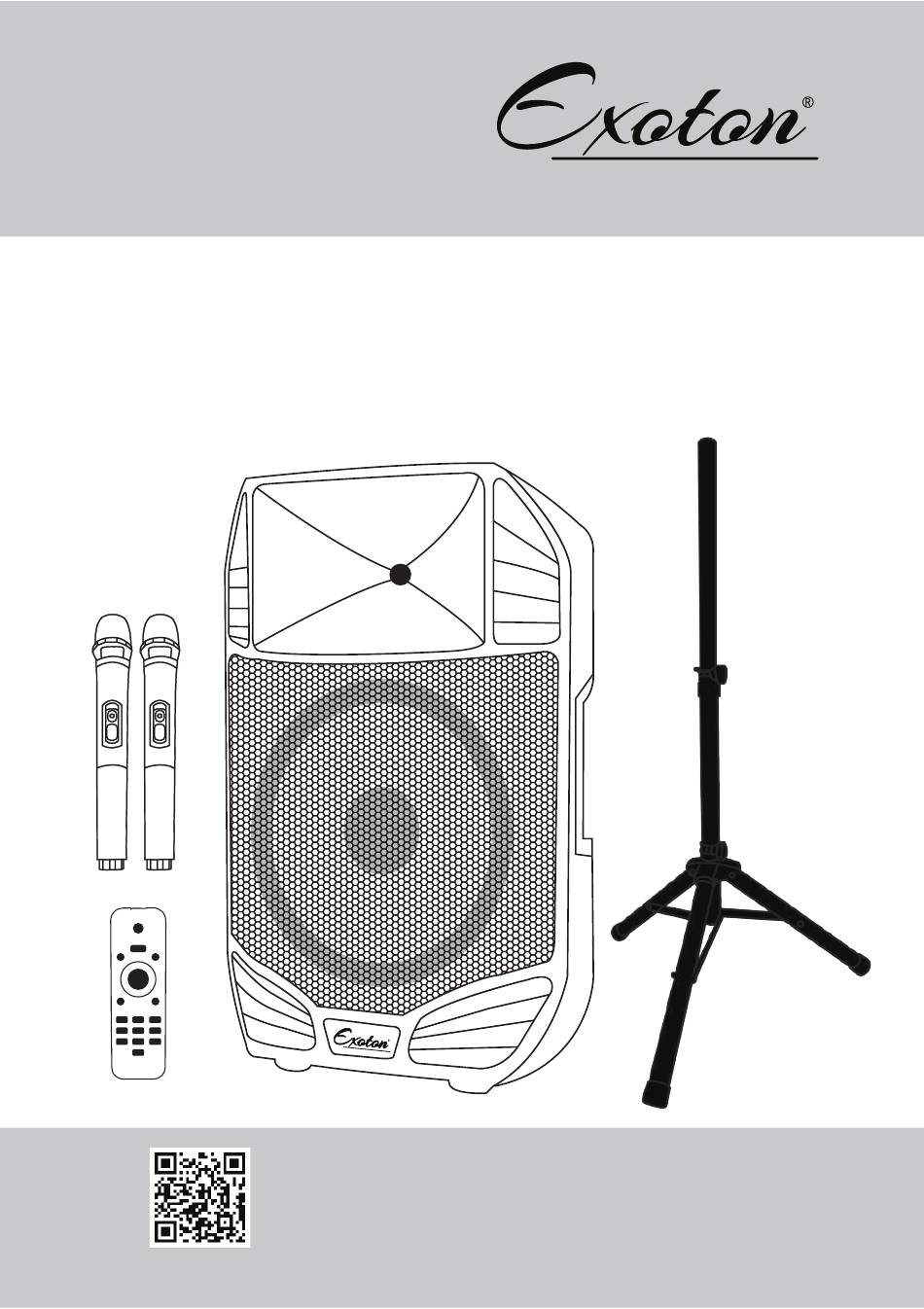

- Page 1 S-1501 VISCOUNT SERIES 15 INCH RECHARGEABLE SPEAKER User’s Manual FOR MORE INFORMATION, PLEASE FOLLOW EXOTON'S SOCIAL MEDIA PLATFORM.
-
Page 2: Table Of Contents
15 INCH RECHARGEABLE SPEAKER VISCOUNT SERIES CONTENTS IMPORTANT SAFETY INSTRUCTIONS INTRODUCTION RECHARGEABLE SPEAKER FEATURES ITEM LISTING QUICK START REAR PANEL(1) REAR PANEL(2) REAR PANEL(3) REAR PANEL(4) CONNECTING WITH BLUETOOTH REMOTE CONTROL DESCRIPTION TIPS ON USING THE REMOTE CONTROL DESCRIPTION OF MICROPHNOE INSTRUCTION FOR SPEAKER TRIPOD S-1501 SPECIFICATIONS S-1501 SIZE... -
Page 3: Important Safety Instructions
1.0 IMPORTANT SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED PERSONNEL The lightning flash with arrowhead symbol, within an equilateral triangle,is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 4: Introduction
Congratulations on your purchase of the S-1501 Viscount Series rechargeable battery powered speaker. EXOTON viscount series have an attractive impact-resistant design. The molded enclosure is made of highly durable polypropylene, which is designed for parties, meetings, indoor or outdoor performances. -
Page 5: Item Listing
3.0 ITEM LISTING EXOTON S-1501 Viscount Series 15 INCH RECHARGEABLE SPEAKER 1*Rechargeable speaker 1*Power cord 2*Wireless microphone 1*Remote control 1*User's manual 1*Tripod CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the package itself shows signs of mishandling. -
Page 6: Rear Panel(1)
4.0 REAR PANEL (1) 1、PLAY/PAUSE BUTTON Short press to start or pause play.Long press to enter the folder function. 2、MODE BUTTON Press to change modes between playing FM, USB, MP3 and Bluetooth. 3、LOOP MODE Press this button to adjust how the audio loops. 4、PREVIOUS BUTTON Press to go to the previous track. -
Page 7: Rear Panel(4)
1.Activate the BT-function on your device (Mobile phone, tablet etc.) from which you want to play the music. See the operating instructions for that device. 2 Press the "2" button and activate BT-function. 3. Select the Bluetooth name "EXOTON" on your device to connect. 5.1 TWS CONNECTION TWS function replaces speaker cable 1.You'll need two S-1501 speakers or two TWS-enabled speakers. -
Page 8: Remote Control Description
6.0 REMOTE CONTROL DESCRIPTION 1.STANDBY ON Switch on or off the speaker. 2.MODE Press to change modes between playing FM, USB, AUX or Bluetooth. 3.STOP Press to pause/resume sound playback. 4.MUTE Press to mute the sound. 5/6.VOL +/- Adjust the volume 7.Previous track 8.Next track 9.Music play/pause... -
Page 9: Description Of Microphnoe
7.0 DESCRIPTION OF MICROPHNOE 1. Connect the microphone to the speaker Turn on the microphone, it will automatically connect to the rechargeable speaker, no other operations are required. 2. Instructions for using the microphone (1)Yelling may occur when covering the microphone head with your hand or holding the microphone close to the speaker. -
Page 10: S-1501 Specifications
8.0 S-1501 SPECIFICATIONS Model name S-1501 Frequency response 45-20K hz Coverage H90°× V60° P.M.P.O 1600W Sensitivity 1w/1m 96db Peak spl 113db Driver size 15" 1.5", metal basket：0.7mm，T-yoke/top-plate：6mm Coil size (mm/ln) press cone，magnet：40 oz，impadance：3.6 ohm 1" H.f. section 1",, 8 ohm 12OZ Coil size (mm/In) Active crossover H.f. -
Page 11: Troubleshooting
9.0 TROUBLESHOOTING Refer to the chart below if the speaker does not function properly. If the problem you are experiencing is not listed, or if the instructions fail to help you resolve the problem, disconnect the power cord and contact us immediately. -
Page 12: To Purchase Additional Gear And Accessories
（https://www.facebook.com/profile.php?id=100078949422393） 10.2 WARRANTY INFORMATION EXOTON is committed to providing the best warranty service for each product. From the date of original purchase, EXOTON provides a warranty of 1 year for any material or workmanship problems arising out of strict compliance with the instructions. EXOTON may repair the product within this warranty period.
