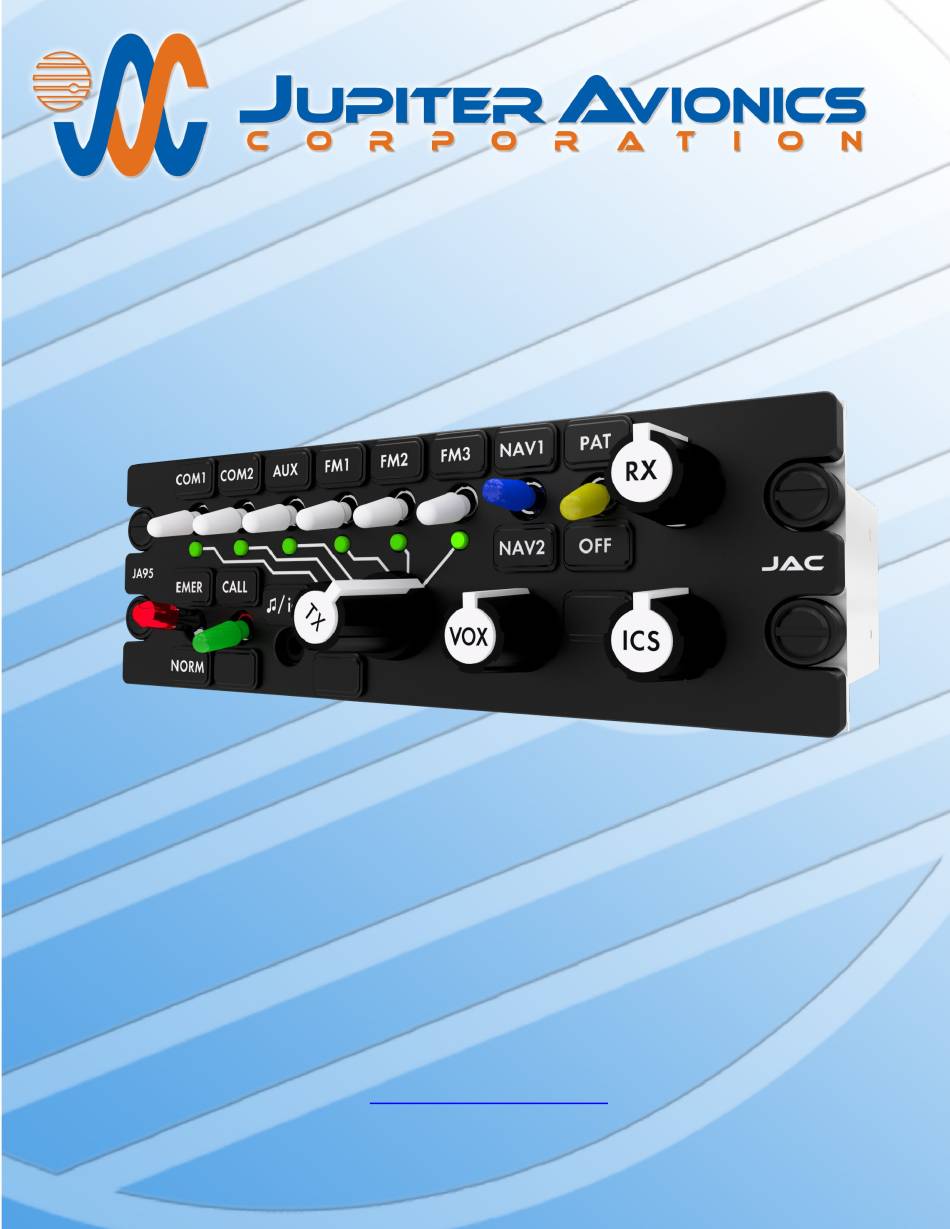

JA95-N32 Audio Controller - Med Crew - NVG Installation and Operating Manual Rev. D Jupiter Avionics Corporation 1959 Kirschner Road Kelowna BC Canada V1Y 4N7 Tel: 778-478-2232 Toll-Free: 855-478-2232 www.jupiteravionics.com...
Page 2
All rights reserved Jupiter Avionics Corporation (JAC) permits a single copy of this manual to be printed or downloaded for the express use of an installing agency. Any such electronic or printed copy of this manual must contain the complete text of this copyright notice.
The JA95-N32 Audio Controller – Med Crew - NVG can be used in a standalone configuration or a star configuration to prevent the loss of the entire system due to the failure of one controller. It provides a passive emergency mode that directs the USER 1 to the COM1 transceiver, NAV1 receiver and Direct Audio receiver.
JA95-N32 Audio Controller - Med Crew - NVG Installation and Operating Manual Inputs and Outputs Refer to the JA95-N32 connector maps for the mating connector designators and pin assignments for the input and output signals. 1.3.1 Inputs Name Type ALERT ENABLE...
JA95-N32 Audio Controller - Med Crew - NVG Installation and Operating Manual Specifications 1.4.1 Electrical Specifications Power Input Primary nominal voltage 28 Vdc Secondary nominal voltage 14 Vdc Maximum voltage 32.2 Vdc Minimum voltage 10.2 Vdc Emergency voltage 9.0 Vdc Input current at 28 Vdc ≤...
Page 8
JA95-N32 Audio Controller - Med Crew - NVG Installation and Operating Manual Output Load Phone load 600 Ω ±10% Transceiver Microphone load 150 Ω ±10% CVR load 5000 Ω ±10% Receive Composite Audio load 600 Ω ±10% Intercom Tie Line type 1 rated load 2000 Ω...
Installation kit part number INST-JA95 1.4.3 Environmental Specifications The JA95-N32 Audio Controller – Med Crew - NVG has been tested to the environmental conditions listed in the Environmental Qualification Form in Appendix B of this manual. 1.4.4 Flammability of Materials The JA95-N32 complies with the requirements of RTCA/DO-160G Sec 26.3.3 'Flammability', through equivalent...
The conditions and tests for CAN TSO and FAA TSO approval of the JA95-N32 are minimum performance standards. Those installing the JA95-N32, on or in a specific type or class of aircraft, must determine that the aircraft installation conditions are within TSO standards. The JA95-N32 may be installed only by following the applicable airworthiness requirements.
2.4.3 Mechanical Installation The JA95-N32 can be mounted in any attitude and location with adequate space for the front panel and sufficient clearance for the connector and wiring harness. It requires no direct cooling. 2.4.4...
All the JA95-N32 internal adjustments are set from the configuration program ProCS™. Configuration data is sent to the JA95-N32 via the front panel connector (♫/io), using the configuration program and CAB-USB-0002 and JA99 Configuration Cables. For full information on the configuration process, refer to the ProCS™...
Page 13
JA95-N32 Audio Controller - Med Crew - NVG Installation and Operating Manual 2.5.3.1 Front Panel Switches The Front Panel Switches window is used to specify the text for each legend. Note: If the name of a front panel switch is changed using this software, the change will be incorporated in every other section that refers to that switch name, including the connector maps, to give truly customized installation diagrams.
Page 14
JA95-N32 Audio Controller - Med Crew - NVG Installation and Operating Manual 2.5.3.3 Receive Levels The receive and direct audio input level of each of the eleven RX and the DIRECT AUDIO inputs can be adjusted from 1 to 10 Vrms. (Default 7.75 Vrms) The Receive Audio Detector threshold can be adjusted from -36 to -12 dB of rated input level.
Page 15
JA95-N32 Audio Controller - Med Crew - NVG Installation and Operating Manual 2.5.3.4 Transmit Levels The level of each of the six Transceiver MIC output signals can be adjusted from 0.01 to 1 Vrms. (Default 250 mVrms) When the Transmit Timeout check box is checked the transmit time-out is...
JA95-N32 Audio Controller - Med Crew - NVG Installation and Operating Manual 2.5.3.6 Connector Pin Configuration Several of the connector pins can be configured to meet the requirements of specific installations. Refer to JA95-N32 Interconnect sheet 5 of 2.5.3.7 Audio Muting (During Transmit) When the Mute RX Audio check box is checked the Receive Audio is muted during transmit.
Page 17
JA95-N32 Audio Controller - Med Crew - NVG Installation and Operating Manual 2.5.3.9 Music Levels The music output level of the four Music input signals to the Phones audio can be adjusted from -40 to 0 dB of rated phone level (Default 0 dB).
2.5.4 Other Configuration Features The model number, serial number and check sum of the JA95-N32 Audio Controller - Med Crew - NVG can be entered and viewed in the Comments pane of the JA95-N32 Product Information Window for future reference.
JA95-N32 Audio Controller - Med Crew - NVG SECTION 3 – OPERATION Introduction This section contains the operating instructions for the JA95-N32. Front Panel Controls Note: The 15 legends and two annunciators are removable and may be replaced with custom ordered parts.
JA95-N32 Audio Controller - Med Crew - NVG Installation and Operating Manual Transceiver Switches These are six white two-position toggle switches. When a switch is set to the ‘up’ position, audio from the associated transceiver is routed to the phones.
JA95-N32 Audio Controller - Med Crew - NVG Installation and Operating Manual CALL Switch This is a green two-position momentary toggle switch. When the switch is in the ‘up’ (CALL) position, a signal will be sent to another audio controller in the system, (for example, a JA95-N22 Flight Crew Audio Controller) to alert the flight crew that communication is requested.
Note: Numbers in parentheses refer to the front panel controls shown in section 3.2. The JA95-N32 is in Normal mode when the front panel EMER / NORM switch (5) is in the NORM position and suitable electrical power is supplied to the unit.
3.3.2 Receiving When the JA95-N32 receives an incoming transmission on a transceiver or receiver that has been selected, either by the white transceiver receive switches (1) or the transmit selector (9), the incoming audio will be directed to the user’s phones.
If the unit is in emergency mode because the EMER / NORM switch is in the EMER position and sufficient power is applied to the JA95-N32, the sum of the COM1 receive, NAV1 receive, DIRECT AUDIO and Alert audio will be routed to the USER 1 phones and the CVR.
Appendix A - Installation Drawings Introduction The drawings necessary for installation and troubleshooting of the JA95-N32 Audio Controller - Med Crew - NVG are in this Appendix, as listed below. Note: A fully customized set of Connector Maps and Interconnects can be created using the ProCS™...
Page 36
Jupiter Avionics Corporation Audio Controllers Legend Replacement Field-Replaceable Legends Extractor tool Jupiter Avionics Corporation (JAC) products have field-replaceable illuminated recess legends. This permits easy customization, and allows the same units to be used in multiple different configurations with only minimal changes.
The JA95-N32 Installation Manual provides detailed installation instructions and wiring diagrams (Section 2, and Appendices A and B). Power is supplied to the JA95-N32 through an existing [ ]-Amp circuit breaker that was previously used by the original audio panel. The net electrical load is unchanged.
Refer to the JA95-N32 Maintenance Manual. 7. Removal and Replacement Information Refer to Section 2 of this manual - the JA95-N32 Installation and Operating Manual. If the unit is removed and reinstalled, a functional check of the equipment should be conducted.
Page 40
JA95-N32 CAN-TSO Design Change Assessment Rev A Manufacturer’s Specification JA95-001 Declaration of Design and Performance Rev D and/or Other Applicable Specification: JA95-N32 Derivative Declaration of Design and Performance Rev A Manufacturer: Jupiter Avionics Corporation Address: 1959 Kirschner Road, Kelowna, BC, Canada, V1Y 4N7 Sept 28 –...
Page 41
R (20 V/m CW&SW) and (150 V/m PM) Conducted R (30 mA) (See remark 3) Radio Frequency Emission 21.0 Equipment tested to Category H (See remark 3) CONFIDENTIAL AND PROPRIETARY TO JUPITER AVIONICS CORPORATION. Rev A Page 2 of 3...
Page 42
REMARKS This product is a derivative of the JA95-001. All tests were performed on the JA95-001. A similarity analysis between the two products is detailed in the Jupiter Avionics Corp. document: JA95-N32 CAN-TSO Design Change Assessment Rev A Test information can be found in the Jupiter Avionics Corp. document:...
