Miganeo Speed Clean 7000 Manual

Intended use

This product is solely intended for private use and is not suitable for commercial use.
The filter system has been designed exclusively to clean pool water and to remove visible impurities. The system is suitable for all standard swimming pools which have a 32/38 mm diameter hose connection.
Only use the product as described in this instruction manual. Any other use is considered improper use and may lead to personal injury or damage to property. This item is not a toy. The manufacturer or retailer assumes no liability for damage resulting from improper or incorrect use.

Check scope of delivery

NOTE! Risk of damage! The product may be damaged if you open the packaging with a sharp knife or other sharp objects without due care and attention. Please open the packaging very carefully.

• Remove the product from the packaging.
• Check that all included items have been delivered in full. Sketch/photo L1.


Check whether the item, or parts thereof, exhibit damage. If there is damage, do not use the product. Get in contact with the service address stated at the end of the manual.

Operation

The quartz sand used in the filter system's tank provides long-lasting filtration of dirt particles and floating debris. Dirty water is drawn from the pool via the suction pipe through the filter pump and then fed directly from above through the 7-way valve into the filter tank. As the water flows through the quartz sand in the filter tank, dirt particles are deposited in the sand and thus filtered out of the pool water. The purified water flows through the 7-way valve back into the pool via the return pipe.
For the operation of the filter system, you need a skimmer (surface skimmer). Either an integrated skimmer (built into the pool wall) or a suspended skimmer (attachment to the poolwall).

Filter sand requirements

• Only quartz sand can be used with this filter system. The quartz sand must comply with the DIN 12904 quality standard.

Positioning

The installation area you set between the skimmer and the inlet nozzle so, that there is an adequate safety margin to the pelvic wall. We recommend putting the filter system in addition on base plates (for example: washed concrete slabs etc.). These have to be installed with the spirit level. Under no circumstances you may put your filter system in a trough or directly into the grass (flood danger or risk of overheating of the filter pump).

If you have sunk your pool partially or completely, so it makes sense to place the filter pump in a filter slot, which should connect directly to the pelvis. Is your filter pump housed in a filter slot, so it has to be insured, that the filter slot can't be slooded. For this purpose you should bring in a roller-burnishing (crushed rock) in the range of the filter slot, so that the surrounding- and rainwater can seep away. It would be ideal if there is a direct connection to the drain in the sump of the filter shaft (or sludge pump, with automatic floating switch). It is important to ensure that the filter slot should never be airtight, because this may cause damage, due to condensation water, on the filter pump. The size of the filter shaft should be selected so that work can be performed on the filter system.

Installation

Assembly of the filter system (Illustration 1)
Assemble the filter system at the location where the pump finally will be (the subsequent transport there would be too burdensome!). The filter pump consists of the following parts:

1. Pump
2. Valve
3. Seal (O-Ring)
4. Clamping ring
5. Vessel
6. Central pipe
7. Filter screen
8. Drain plug
9. Centralizer (cover for standpipe)
10. Base plate
11. Pressure hose

Filter vessel

1. Insert stand pipe including filter screen into boiler. (Illustration 2)

2. Place the stand pipe with the filter screen on the floor of the boiler, make sure that the stand pipe is located in the middle of the boiler and that the drain plug is screwed in.
3. Now put the centralizer on the tank opening, while centering the standpipe. (Illustration 4)

4. Fill in the filter quarz sand up to a high of about ¾ of the bowlhight. (Illustration 4)
5. Then mount the top of the boiler or the valve head and the boiler seal on the tank top of the filter vessel. Before you do this, it is neccassary to clean again and wash off any sand or accumulated debris. The connection of the top of the boiler or the head valve with the filter vessel is carried out by the clamping ring. The clamping ring is screwed with the clamping ring screw and the collet nut. (Illustration 5 & 6)

6. Finally, mount the pump fittings on the valve head. Seal the pump fittings sufficiently by using teflon tape.
7. The pressure gauge (if included) is screwed to the side of the 7-way valve and sealed. The existing vent plug should be removed first. (Illustration 9)


Hose connections

See Illustration 7

1. Skimmer pipe: Connection from the skimmer connection to the front connection on the filter pump.
2. Pressure pipe: Connection from the top connection of the filter pump to the connection labelled "RINSE" / "FILTER" on the 7-way valve.
3. Return pipe: Connection from the connection on the 7-way valve labelled "RECIRCULATE" to the connection on the inlet nozzle (pool). Fix all the connections with hose clamps.
4. Backflush pipe: Connection "FILTER" / "WASTE" (emptying) into the channel. The connections are to be made with special swimming pool hoses and hose clamps!

Installation instructions

Once the filter system has been properly assembled, the sand chamber filled with sand and the hoses connected as described above, you may begin with filtration. However, we recommend that you clean and prepare the new sand that is in the sand chamber first. Cleaning the sand prior to filtering your pool will remove most of the dust and tiny sand particles that may exist in the sand. If you move straight to filtering, these particles will end up in your pool. To clean the sand, please follow the instructions below:

Do not plug the system in until advised to do so below.

• Make certain the pump is not plugged in to a power supply.
• Ensure that the valve lever is in the "closed" position.
• Before operating the filter system, it is important to ensure that the filter system is positioned outside the pool and is lower than the pool's water level. The hose connections must also be correctly connected and fastened.
• If you haven't done so already, fill your pool with water. Ensure that the water level is at least 2,5 – 5 cm above the top of the hose intake (Skimmer) and return ports in the pool.
• Release the shut off valve at the intake port (Skimmer) in the pool. If you plugged the intake port (Skimmer), remove the plug to allow the water to flow into the intake hose.
• With the filter-pump system installed in a location level lower than your pool's water level – water will automatically flow into the pump-filter system.
• The filter system is now vented. If applicable, ensure that the filter pump's pre-filter guard is slightly open until the water runs from the pre-filter container (transparent lid with screw fitting on the upper surface of the filter pump).
• Allow the filter tank to fill with water.
• Check the filter system and the connection hoses for leaks and resolve, if necessary. Leakage points may possibly arise due to manufacturing tolerances, which need to be resolved by wrapping teflon tape around the connections before the connection hose is attached.
• Follow the backwash process described below.

Backwash Process

• S Disconnect the Motor/Pump from the Power Source.
• Attach backwash hose (not included) to backwash port.
• Place the Multi-Port Valve in the "Backwash" position.
• Reconnect to power source.
• Run filter in BACKWASH mode until discharge water is clear.
• Disconnect the Motor/Pump from the Power Source.
• Place the Multi-Port Valve in the "RINSE" position.
• Reconnect to power source.
• Allow filter to run for 60 seconds to remove any remaining residue from pump and valve.
• Disconnect the Motor/Pump from the Power Source.
• Place the Multi-Port Valve in the "Filtration" position.
• Reconnect to power source.
• Your filtration system is RUNNING and ready for further operation.

Filter operations

Filtering time

The swimming pool's water should be circulated and filtered at least 3 to 5 times in a 24 hour period, depending on the load and the size of the filter system. The time required is based on the performance of the filter system and the size of the swimming pool. However, we recommend a minimum running time of 12 hours per day.

Power source Instructions

The filter system you have purchased is equipped with a connection cable, which may only be connected to a circuit with a residual current circuit breaker (RCCB) with a rated residual current of no more than 30mA.

Technical data

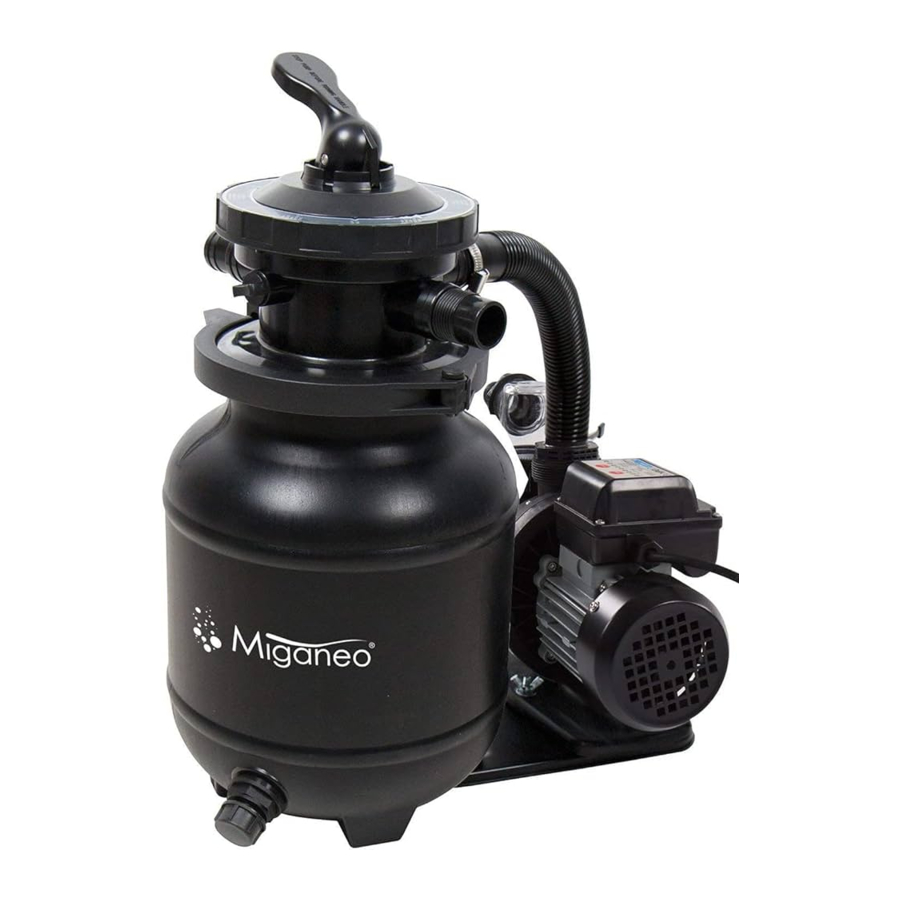

• Filter pump 040949
• Circulation power 4.500 l/h
• self-priming pump with pre-filter
• maximum water temperature 35°C
• 230 V / 250 W
• 7 way valve with pressure gauge
• Tank Ø 250 mm
• Connector Ø 32/38 mm
• Ground plate
• requires approx. 12 kg sand
• recommended grain size 0.7 - 1.2 mm
• for pools up to 19,000 l capacity
• Available separately: Steinbach container for Steinbach UV-disinfection system

Operation with a pool vacuum cleaner

(Illustration 8)

• The pool vacuum cleaner's hose can be connected directly to the filter system's suction pipe. In doing so, the pool vacuum cleaner's hose must be completely filled with water.
• The use of a skimmer with a strainer basket is recommended for filter systems without pre-filters.
• Please observe the pool vacuum cleaner's operating instructions. To prevent the filter from running dry and thus overheating, no air should be allowed to enter the filter system.
• Please select the "FILTERN" position on the valve head.
• Alternatively, you can also select the "ENTLEEREN (empty)" position, for example if algae forms in the pool. Dirty pool water will not then run back into the pool, but will be directly channelled away via the waste pipe. When selecting this setting, it is necessary to re-fill your pool to the correct level after cleaning, if necessary.

Problem treatment

Important Note

To winterize the system

• Unplug the pump from the power source.
• Close the shut off valves or block the flow of water at the pool inlet and return ports.
• Disconnect the filtration system from the pool, drain the tank and hoses.
• Place the handle on the central valve in position 'Winterize' to relieve the tension on the spring and internal valve components.

Changing the filter sand

The filter sand should be changed every 2-3 years, depending on how much the filter system is operated.

Care instructions

Visible contaminants are removed through the filtration system. This is not true for algae, bacteria and other microorganisms, which are also a constant threat to clear, clean and healthy pool water. For their prevention or removal, special water treatment is available, properly and permanently dosed, guarantee for swimmers any kind of harassment and ensure proper hygienic bath water.

Cleaning

Use conventional cleaning products. Do not use solvent-based or abrasive cleaning agents/tools, i.e. no hard sponges, brushes etc..

Storage

The product must be thoroughly dried after cleaning. When the pool cleaner is not being used, store it in a well ventilated place out of direct sunlight. Avoid direct sunlight. Make sure the room temperature is above 5°C in winter.

Warnings and safety instructions

Read and observe all instructions. Non-compliance with these warnings and instructions may result in damage to property, severe personal injury or even death. These product warnings, instructions and safety regulations are extensive but cannot cover all potential risks and dangers and are thus not to be considered exhaustive. Please be cautious and assess potential dangers appropriately. Incorrect use/handling of the product can lead to life-threatening situations.

Leave repairs to experts in order to prevent hazards. Consult a specialist workshop. Liability is waived and warranty claims expire if repairs are carried out independently of if the product is improperly installed or used incorrectly. Only original parts corresponding to the original product specifications may be used during repairs.

Hazardous for children and persons with reduced physical, sensory or mental abilities (such as the handicapped, elderly individuals with impaired physical and mental abilities), or those with a lack of experience and knowledge. Children must not be allowed to play with this product. Cleaning may not be performed by children and persons with reduced physical, sensory or mental abilities.

NOTE! Risk of damage! This product may be damaged through improper use.

Danger of electrocution! Faulty electrical installation or too high mains voltage can lead to electrocution. Only connect the product if the mains voltage on the socket corresponds to the technical specifications. Only connect this product using an easily accessible socket to ensure it can be rapidly disconnected from the mains in the event of a fault. Do not operate the product if it exhibits visible damage or the mains cable/plug is defective. As additional protection, it is recommended to install a residual current device (FI/RCD) with a tripping current of no more than 30 mA. Consult with an electrician for advice.
Only open the product as described in this manual. Leave repairs to experts in order to prevent hazards. Consult a specialist workshop. Liability is waived and warranty claims expire if repairs or changes to the product are carried out independently of if the product is improperly connected or operated incorrectly.

This product features electrical and mechanical parts which are indispensable for protecting against potential hazards. Never touch the plug with wet hands. Never pull out the plug from the socket using the cable - always pull on the plug. Keep the product, plug and all cables away from open fires and hot surfaces. Lay the cable so that it does not pose a tripping risk and do not place it under the ground. Lay cables in such a way that they will not be damaged by lawn mowers and other similar devices. Do not kink the cable and do not lay it over sharp edges. Do not use an extension cable, multiple socket adapters or other adapters.

Filtration systems must not be operated dry (i.e. without any water)! The water has a cooling effect - if used without water, there is no warranty protection! Never place the pump or filter into the pool. The filter pump must be switched off before every switching operation using the 7-way valve! The filtration system must not be used if there are people in the water! Install the filtration system at a suitably safe distance from the pool to prevent children using the system as a means of entering the pool. Do not submerge the filtration system, mains cable or plug in water or other liquids. The filter pump of the filtration system is to be protected from foreign bodies and splashes of water. It is still worthwhile to install it in such a way that it is also protected from the weather. Never carry out any work on the filtration system while it is still connected to the mains. Hazards posed by the suction of the pump can lead to serious injury and death if adequate precautions are not taken. Do not block the suction openings on the pump or in the pool since this may lead to serious injury or even death.
