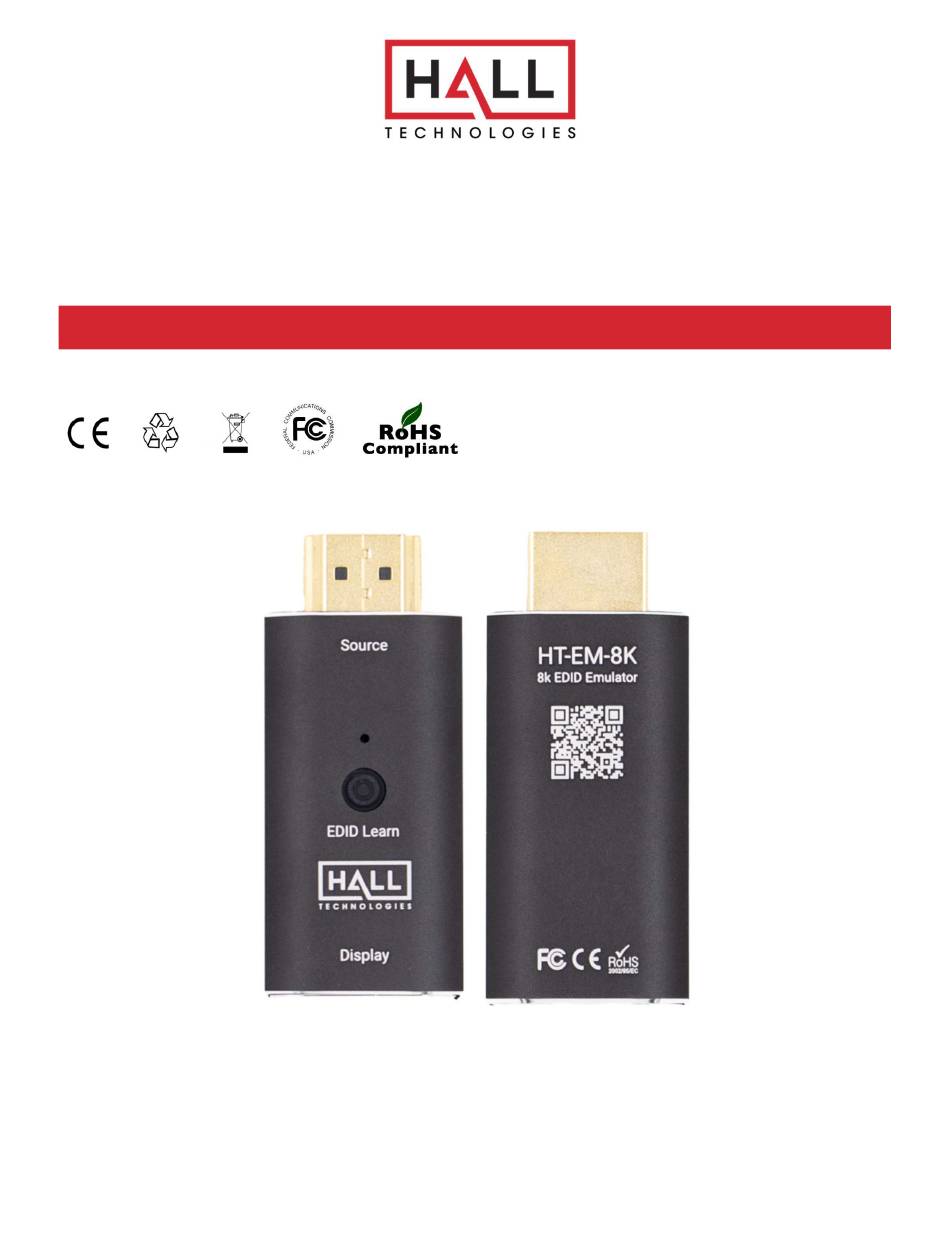

- Page 1 Hall Technologies • 1234 Lakeshore Dr Suite #150 Coppell, TX 75019 • halltechav.com HT-EM-8K 8K HDMI EDID Emulator USER MANUAL February 18, 2025 Hall Technologies February 18, 2025 Page 1 of 9...
-
Page 2: Important Safety Instructions
7. Unplug this apparatus during lightning storms or when unused for long periods of time. 8. Protect the power cord from being walked on or pinched particularly at plugs. 9. Only use attachments / accessories specified by the manufacturer. Hall Technologies February 18, 2025 Page 2 of 9... -
Page 3: Table Of Contents
Features ..............................4 Package Contents ............................... 4 Panel Description ............................... 5 Installation and Wiring ............................6 Installation ............................. 6 Modes ................................. 6 Default Mode ............................6 Backup Mode ............................7 Specifications ..............................8 Hall Technologies February 18, 2025 Page 3 of 9... -
Page 4: Introduction
Introduction OVERVIEW The HT-EM-8K is an 8K HDMI EDID emulator that acts as an HDMI monitor by emulating the EDID found in a typical HDMI monitor. Most PCs and laptops require a special handshake from the display before they output video. This handshake involves reading the EDID table from the monitor. The EDID contains information such as native or supported resolutions and video formats. -
Page 5: Panel Description
LED Flashing: Emulator is changing modes after a 3-second button press • LED On: Emulator is in Backup mode • Source – HDMI Male HDMI output for connection to the video source Hall Technologies February 18, 2025 Page 5 of 9... -
Page 6: Installation And Wiring
No additional burning tools are required for this mode. DEFAULT MODE The HT-EM-8K is in Default mode by default. When the source and display are connected to the emulator, the PC will read the internal EDID of the emulator and send video accordingly. This EDID supports up to HDMI 2.0. -
Page 7: Backup Mode
Therefore it is not recommended to use the emulator on a different display after it learns HDMI 2.1 with a display. Hall Technologies February 18, 2025 Page 7 of 9... -
Page 8: Specifications
10% to 90%, non-condensing Human-body Model: ±8kV (Air-gap discharge)/ ESD Protection ±4kV (Contact discharge) Device Dimension (WxHx D) 0.8” x 2.0” x 0.4” (22mm x 52mm x 10mm) Net Weight 0.05lbs. (0.023kg) Hall Technologies February 18, 2025 Page 8 of 9... - Page 9 © Copyright 2022. Hall Technologies All rights reserved. 1234 Lakeshore Drive Suite #150, Coppell, TX 75019 halltechav.com / support@halltechav.com (714)641-6607 Hall Technologies February 18, 2025 Page 9 of 9...
