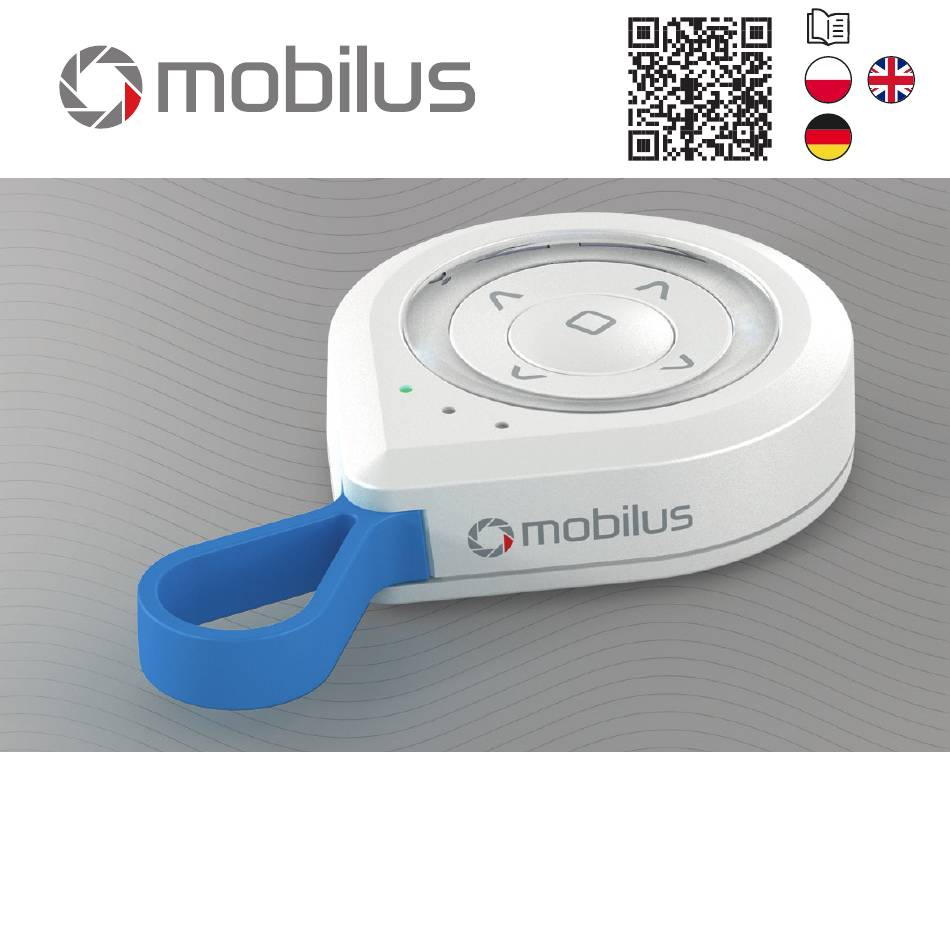

  • Page 1 User manual of COSMO | G3 Lite controller. www.mobilus.pl Wersja 1.3ENG, 250404...

  • Page 2: General Information

    1. GENERAL INFORMATION COSMO | G3+ Lite is a 4-channel remote control, designed for remote control receivers brand MOBILUS (radio remote controls for roller shutters, awnings, blinds / control modules for motors without radio communication module / ON / OFF modules).

  • Page 3: Description Of The Remote Control

    4. DESCRIPTION OF THE REMOTE CONTROL 1. Pendant. 2. LED’s indicating the selected channel. 3. Control button UP ( TURN ON for modules ON/OFF ). 4. Navigation channels button LEFT. 5. STOP button ( TURN ON/TURN OFF for modules ON/OFF; UP/STOP/DOWN in case of the modules operating in steps mode ).

  • Page 4: Power Supply

    5. POWER SUPPLY The device is powered by single battery CR2430. In order to change the battery, open housing of the remote. 1. Between the lower and the upper part of the housing slide flat, rigid tool in the position shown in Fig.
  • Page 5 3 kanał 4 kanał Fig. 6.1 2. Enter MOBILUS motor, serie R in the PROGRAMMING MODE OF MASTER REMOTE: - press for 5 seconds PROGRAMMING BUTTON in the motor - Fig. 6.2a; - or double turn off and turn on the power supply od the motor - Fig.
  • Page 6 C.D. 6. WCZYTYWANIE PILOTA DO PAMIĘCI SIŁOWNIKA 3. On the remote control simultaneously press the STOP and UP Hold the - Fig. 6.3 . buttons until the motor driver will perform two micro-movements. The remote control has been readed into the motor. Fig.
  • Page 7 7. READING IN OTHER REMOTE PILOT 2 Fig. 7.2 Within 20 sec. you can proceed to load the next remote. However, if no action of programming at this time doesn’t happen, motor automatically returns to the OPERATING MODE. You can expedite return to the OPERATING MODE manually using the remote control MASTER.
  • Page 8 8. CHANGE OF MOTOR’S OPERATION DIRECTION WARNING ! You can change the direction of the work of motor for MOBILUS drives with elec- tronic limit switches only before setting the upper and lower limit switches. You can change the direction of work for the MOBILUS motors with mechanical limit switches at any time.

  • Page 9: Environmental Protection

    10. ENVIRONMENTAL PROTECTION This appliance is marked according to the European Directive on Waste Electrical and Electronic Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
  • Page 10 User manual of MOBIQ RG controller MOBILUS MOTOR Spółka z o.o. Wersja 1.3ENG, 250404 ul. Miętowa 37, 61-680 Poznań, PL tel. +48 61 825 81 11, fax +48 61 825 80 52 www.mobilus.pl VAT NO. PL9721078008...
