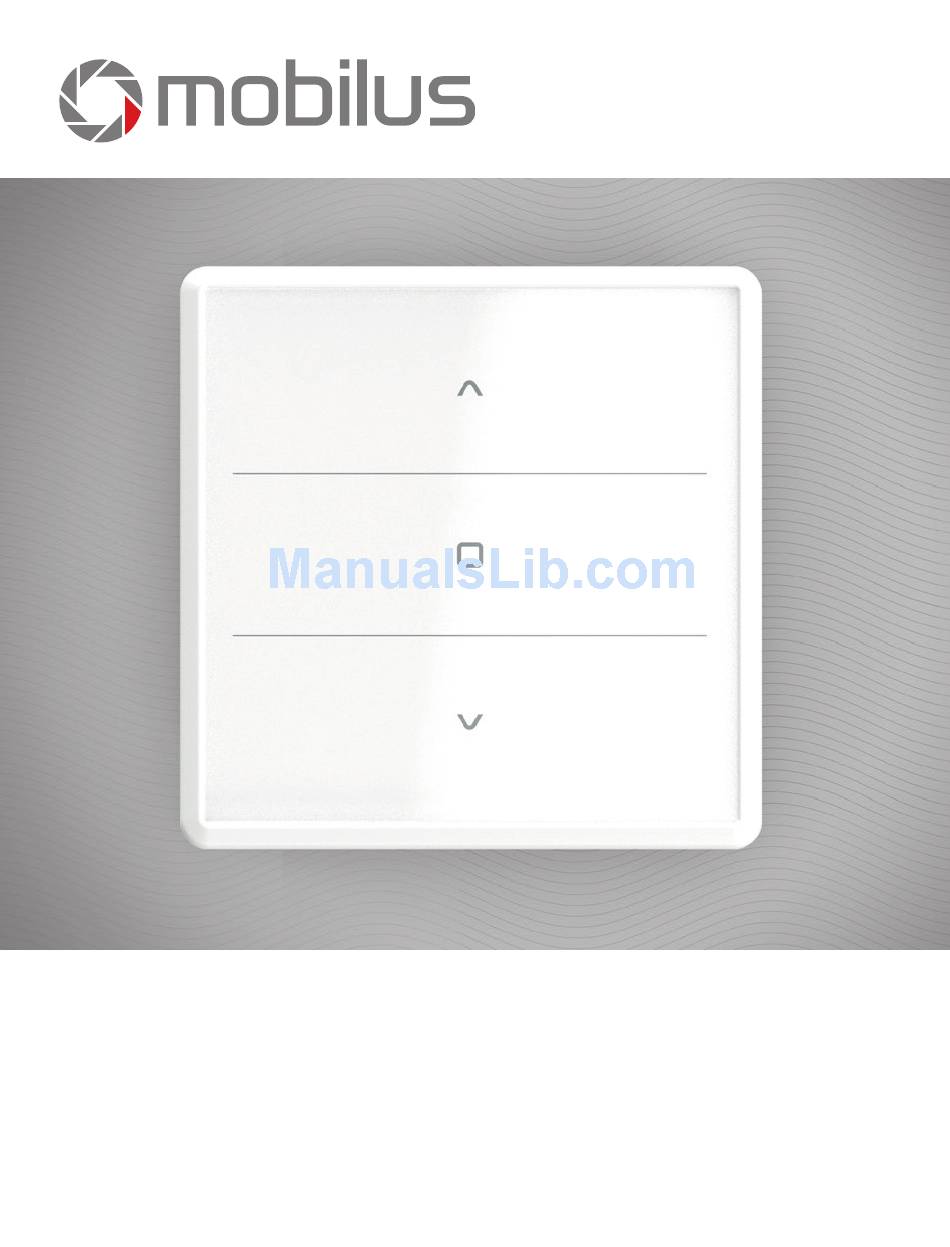

  • Page 1 User manual of COSMO | WT controller. www.mobilus.pl...

  • Page 2: General Information

    • Bi-directional communication - the opportunity to receive additional feedback information from receivers. Remote COSMO | WT - a remote control with touch screen keyboard. It has the ability to control with the motions. 2. DESCRIPTION OF THE REMOTE CONTROL 1 The touch screen of remote control Control button / navigation area - UP.

  • Page 3: Technical Parameters

    CONTINUED 2. DESCRIPTION OF THE REMOTE CONTROL 3. CONTENTS OF THE PACKAGE The packaging contains the following items: • remote COSMO | WT, • 4 AAA batteries in the remote control protected against discharging with a seal, • user manual, •...

  • Page 4: Power Supply

    5. ASSEMBLY OF A HOLDING FIXTURE Elements of wall handle: • rear housing of remote - A, • anchors with screws - B. 1. Determine the position where the rear flap of housing will be located (easy access, no running power cables, pipes, reinforcement of walls, etc.).
  • Page 5 8. WT REMOTE CONTROL OPERATION | MOTIONS Remote control COSMO | WT allows the user two control modes. Mode 1 - touch - the user issue commands by touching with his finger on the remote’s screen. Waking up the remote control followed by touching the screen of remote control.
  • Page 6 9. WT REMOTE CONTROL OPERATION | ACTIVATING THE DISPLAY Remote control COSMO | WT in order to save energy introduces a screen in stand-by mode. Its re-activation can be done in two ways: 1. Activation by touching the finger in the control buttons field. The pilot will send to the receiver an order corresponding to the area on the screen- Fig.
  • Page 7 WARNING! Operation: LOADING THE REMOTE CONTROL INTO MOTOR’S MEMORY is only possible in the MODE 1 of remote control (motions control is off). 1. Enter MOBILUS motor, serie R in the PROGRAMMING MODE OF MASTER REMOTE: - press for 5 seconds PROGRAMMING BUTTON in the motor - Fig.
  • Page 8 CONTINUED 10. READING OF REMOTE INTO THE MOTOR’S MEMORY WARNING! The first remote control readed into the receiver is a remote control MASTER. It allows you to operate motor and enter it in the PROGRAM MODE OF OTHER REMOTES. 3. On the remote control simultaneously press The LED’s will flash (two Fig.
  • Page 9 WARNING ! You can change the direction of the work of motor for MOBILUS drives with electronic limit switches only before setting the upper and lower limit switches. You can change the direction of work for the MOBILUS motors with mechanical limit switches at any time.
  • Page 10 14. TRANSMISSION PROTOCOL SWITCHING COSMO - COSMO | 2WAY 3 s. Remote control COSMO | WT works in latest version of radio communication COSMO | 2WAY. If you need to change the mode to an older version (for example, if you purchase a new remote control for older COSMO radio tubular motors), follow these instructions: 1.

  • Page 11: Warranty

    16. THE BEEPS - ACTIVATION / DISACTIVATION You can turn on / off beeps in the remote COSMO | WT. To do this, press and hold button P1 loca- ted under the battery cover. At the same time pull out the battery, so as to deprive remote power source, and then put it again in the remote control.

  • Page 12: Maintenance

    MOBILUS MOTOR Spółka z o.o. ul. Miętowa 37, 61-680 Poznań, PL tel. +48 61 825 81 11, fax +48 61 825 80 52 VAT NO.
