ORIGINAL INSTRUCTIONS

IMPORTANT - These instructions are for your safety.

Please read through them thoroughly prior to handling

the product and retain them for future reference.

MNL_ERT1028GBL_EN_V01_240926

EN 36V Cordless Blower

ERT1028GBL

5059340904870

5059340904528

5063022544520

Table of Contents

Need help?

Do you have a question about the ERT1028GBL and is the answer not in the manual?

Questions and answers

Summary of Contents for Erbauer ERT1028GBL

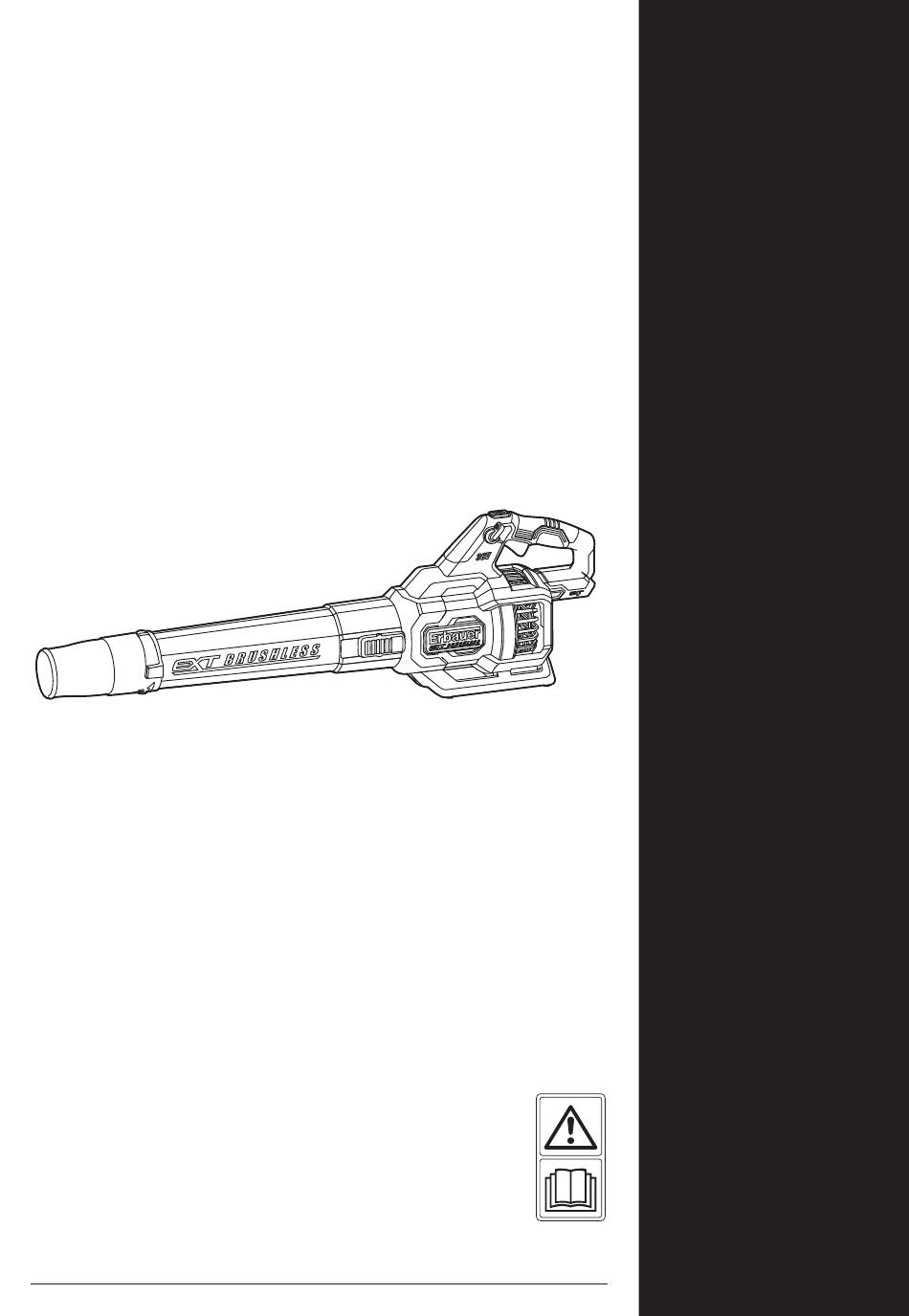

Page 1 EN 36V Cordless Blower ERT1028GBL ORIGINAL INSTRUCTIONS 5059340904870 IMPORTANT - These instructions are for your safety. 5059340904528 Please read through them thoroughly prior to handling the product and retain them for future reference. 5063022544520 MNL_ERT1028GBL_EN_V01_240926...
Page 2: Table Of Contents
EN Parts 01. x1 02. x1 03. x1 EN You will need EN Contents Product description Safety Technical specification Before you start Functions & Settings Operation Care and maintenance Guarantee Declaration of conformity...
Page 3: Product Description
EN Product Description Variable-speed trigger switch Battery docking port Turbo button Battery pack Trigger-lock lever Battery pack release button Blower tube Battery pack power bar button Tube - release button 12*. Charger Knob Handle/Grasping surface Nozzle NOTE: * This may not be included in the supply scope.
Page 4: Electrical Safety
EN Safety General power machine safety warnings WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this machine. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference The term “machine”...
Page 5 b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose machines to rain or wet conditions. Water entering a machine will increase the risk of electric shock.
Page 6 Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the machine.
Page 7 Machine use and care Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed. Do not use the machine if the switch does not turn it on and off.
Page 8 Use the machine, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the machine for operations different from those intended could result in a hazardous situation. Keep handles and grasping surfaces dry, clean and free from oil and grease.
Page 9 Do not use a battery pack or machine that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or machine to fire or excessive temperature.
Page 10 While operating the machine, always wear non-slip and protective footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the risk of injury to the feet. Do not wear loose fitting clothing or articles such as scarves, strings, chains, ties, etc., that could get drawn into the air inlets.
Page 11 When clearing jammed material or servicing the machine, make sure the power switch is off. Unexpected actuation of the machine while clearing jammed material or servicing may increase the risk of personal injury. Thoroughly inspect the area for wildlife where the machine is to be used.
Page 12 When disposing of battery pack, keep the battery pack of different electrochemical systems separate from each other. Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low- noise operating modes as well as wear personal protective equipment.
Page 13: Residual Risks
The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to users of product’s with vibration emission. The directive requires manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a product can be used safely on a daily basis and the choice of tool.
Page 14 1. Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained. 2. Injuries and damage to property due to broken accessories or the sudden impact of hidden objects during use.
Page 15 Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (direct current voltage) km/h Kilometre/Per hour Cubic metre/Per hour Millimetre Kilogram Milliampere Ampere °C Degree centigrade dB(A) Decibel (A-rated) Metres per second squared Manufacturing date code: year of manufacturing (20yy) and week of yyWxx...
Page 16 The product complies with the applicable Your product European directives and an evaluation method of conformity for these directives was done. UK Conformity Assessed. Rating label explanation Cordless Blower: ERT1028GBL ER= Brand name (Erbauer) T=36V Lithium-Ion 1028=Serial number GBL=Garden blower...
Page 17: Technical Specification
> Weight approx. 1.2 kg approx. 1.2 kg NOTE: This equipment is compatible with the Erbauer EXT 18V/36V dual-voltage lithium-ion battery range. For optimal performance, use 1X 4.0Ah battery. Charger for battery pack (may not be included) > Model no.
Page 18: Before You Start
WARNING! The vibration and noise emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used especially what kind of workpiece is processed; The need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
Page 19 EN Assembly WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! WARNING! Disconnect the battery pack from the machine before making any assembly, adjustments, changing accessories, or storing machine. Such preventive safety measures reduce the risk of starting the machine accidentally. Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product! Before using the product, familiarise yourself with the operating features read the entire instruction manual paying particular attention to the safety rules and operating...
Page 20: Assembling The Nozzle
Assembling the nozzle Installing the nozzle Align the groove on the nozzle (7) with the emboss on the blower tube (4). Push the nozzle (7) onto the blower tube (4) until it snaps into place, then rotate it to the lock position. (Fig. 2a) Removing the nozzle To remove the nozzle (7), rotate it to the unlock position and pull the nozzle (7) straight from the blower tube (4) (Fig.
Page 21 Battery Pack Power bar The Li-Ion battery pack is equipped with a power bar which is used to give an indication of the battery pack’s remaining charge. Press the power bar button (11) to check battery charge as below. The LED will stay lit for approximately 5 seconds. 76-100% Charge 51-75% Charge 26-50% Charge...
Page 22: Functions & Settings
EN Functions & settings Intended use This blower ERT1028GBL is designated with a rated voltage of 36V .The product is intended for blowing dry leaves for piling up or removing material of hard to reach places. The product must not be used in areas where there is health damaging dust or as a wet blowing device.
Page 23: Operation
EN Operation Operating the blower WARNING! • Always wear eye protection and ear protection. Failure to do so could result in objects being thrown into your eyes and ears. • Do not use any attachments or accessories not recommended by the manufacturer, it can result in serious personal injury.
Page 24: Care And Maintenance
EN Care and maintenance The golden rules for care WARNING! Always switch the product off, remove the battery pack and let the product cool down before performing inspection, maintenance and cleaning work! Keep the product clean. Remove debris from it after each use and before storage. Regular and proper cleaning will help ensure safe use and prolong the life of the product.
Page 25: Troubleshooting
WARNING! Always charge the battery pack before storage! Please charge the battery pack to 3 bars on the battery light indicator. If the tool will not be used for long periods of time, charge the battery pack every 3-6 months. It is important to disconnect the charger from the power supply after charging has finished. Cool down battery pack from a just-operated product for approximately 20 minutes before attempting to recharge! Transportation Switch the product off and remove the battery pack.
Page 26: Recycling And Disposal
Recycling and disposal This symbol is known as the 'Crossed-out Wheelie Bin Symbol'. When this symbol is marked on a product or battery, it means that it should not be disposed of with your general household waste. Some chemicals contained within electrical/electronic products or batteries can be harmful to health and the environment.
Page 27: Guarantee
Guarantee related queries should be addressed to a store affiliated with the distributor from where you purchased the Erbauer power tool. Erbauer battery and charger are guaranteed for 2 years and covered by all others terms within the above guarantee. This guarantee is in addition to and does not affect your statutory rights relating to faulty goods as a consumer.
Page 28: Availability Of Spare Parts
EN Customer care and technical helpline A better way to repair your tools Kingfisher takes special care in creating high-quality garden power tools that are designed to last. But if a fault develops with your garden power tool and you need to claim under the guarantee, the Customer Care and Technical Helpline can support with technical assistance or if required, arrange a free courier collection from your home, assess your garden power tool for fault, repair it, and return it.
Page 29: Declaration Of Conformity
(PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Produkt/Produsul/Producto/Produto • Cordless Blower/ Souffleur Sans Fil/ Bezprzewodowa Dmuchawa Do Liści/ Suflantă Fără Fir/ Soplador Inalámbrico/Soprador De Folhas Sem Fios • 82006.1/ERT1028GBL • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nazwa i adres producenta lub jego upoważnionego przedstawiciela:...
Page 30 2006/42/EC as amended Machinery Directive 2014/30/EU as amended Directive Electromagnetic compatibility 2000/14/EC as amended Outdoor Noise Directive 2011/65/EU as amended Directive Restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2006/42/CE relative aux machines 2014/30 / UE telle que modifiée Directive Compatibilité électromagnétique Directive 2000/14/CE relative aux émissions sonores extérieures Directive 2011/65/UE relative à...
Page 31 EN 62841-1:2015+A11:2022 EN 62841-4-6:2024+A11:2024 EN IEC 55014-1:2021 EN IEC 55014-2:2021 Authorised signatory and technical file holder/signataire et responsable de la documentation technique authorisé/ podmiot uprawniony do wystawienia i adres prezechowywania dokumentacji technicznej/ semnatar autorizat și deținător al dosarului tehnic/firmante autorizado y titular del expediente tecnico/ signatário autorizado e detentor da ficha técnica Kingfisher International Products B.V., Rapenburgerstraat 175E, 1011 VM Amsterdam, The Netherlands David Awe Group Quality Director 30/08/2024...
Page 32 (UK) DECLARATION OF CONFORMITY Product • Cordless Blower • 82006.1/ERT1028GBL • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 1 Paddington Square London W2 1GG United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
Page 36 Manufacturer : EN www.diy.com UK Manufacturer: To view instruction manuals online, 1 Paddington Square, London, W2 1GG, United Kingdom EU Manufacturer: Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands...
