- Page 1 Petrol Blower (27.6 cm EBP28 EAN: 5059340256375 BX220IM/B3 WARNING: Read the instruction handbook thoroughly before using the machine!
-
Page 2: Table Of Contents
EBP28 Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting Started... Safety information Your machine Technical specification Before start Quick start detail... more Machine functions Operation... - Page 3 Safety information EBP28 Safety warnings IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE > This machine is not intended for use by children and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. >...
- Page 4 Safety information EBP28 > Take extreme care in wet and freezing weather conditions. Do not work in rain, windy or stormy weather. > Wear a dust mask. The use of this machine can generate exhaust gases, lubrication oil mist and dust containing chemicals known to cause respiratory damage.
- Page 5 Safety information EBP28 Fuel handling > Always switch the machine off, disconnect the spark plug connector and let the machine cool down before refuelling it. > Fuel vapour pressure may build up inside the fuel tank depending on the fuel used, weather conditions and the tank venting system.
-
Page 6: Getting Started
Safety information EBP28 Getting started > Do not operate the machine indoors. The machine produces poisonous exhaust fumes whilst the engine is running which may be colourless and odourless. > Do not wrap the recoil starter rope around your hand whilst starting the machine. -
Page 7: Safety Information
Safety information EBP28 > Operate the machine only in daylight or in good artificial light. > Slightly dampen surfaces in dusty conditions. > Operate the machine only at reasonable hours – not early in the morning or late at night when people might be disturbed. - Page 8 Safety information EBP28 Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks: >...
- Page 9 Safety information EBP28 Residual risks Even if you are operating this machine in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this machine: >...
- Page 10 Safety information EBP28 Description of signal words: The signal word that indicates a hazard with a high level of risk DANGER! which, if not avoided, will result in death or serious injury. The signal word that indicates a hazard with a medium level of WARNING! risk which, if not avoided, could result in death or serious injury.
- Page 11 Safety information EBP28 Risk of fire/flammable materials. Hot surface, do not touch! High temperatures on the machine’s surfaces and structural parts that could cause burns, if they are touched. The machine can also stay hot for a longer period of time after the operation! Petrol engines produce toxic carbon monoxide exhaust fumes.
- Page 12 Safety information EBP28 Choke – CLOSED position. Choke – OPEN position. Engine manual start; recoil starter. Guaranteed sound power level value in dB. The machine complies with the applicable European directives and an evaluation method of conformity for these directives was done.
-
Page 13: Your Machine

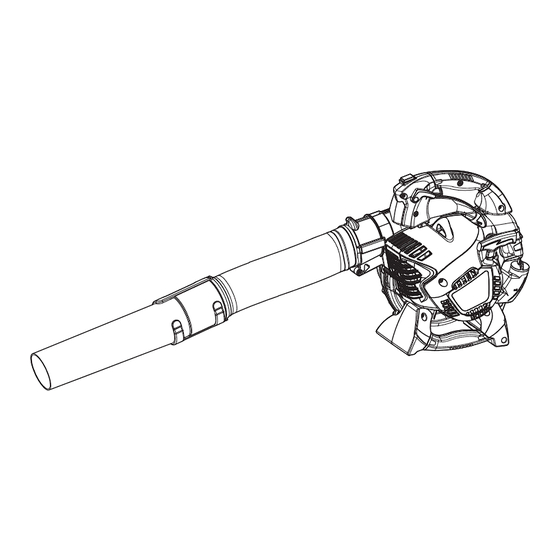

Your machine EBP28 Your machine Main unit 1. Blower outlet 9. Air filter case 2. Ignition switch (I / O) 10. Fuel tank cap 3. Lock-on lever (throttle locking device) 11. Fuel tank 12. Adjusting screws for carburetor (H / L) 4. - Page 14 Your machine EBP28 Blower assembly 17. S-shaped tube 19. Round nozzle 18. Flat nozzle Accessories 20. Multi-tool 22. Screwdriver 21. Torx key 23. Fuel mixing bottle...
-
Page 15: Technical Specification
Technical specifications EBP28 Technical specifications General Dimensions (without tubes): > approx. 35 x 25 x 35 cm > Weight: approx. 4.7 kg > Fuel tank capacity: 400 ml Petrol type: > Octane rating of at least 90, unleaded, Octane rating of at least 90, unleaded,... - Page 16 Technical specifications / Before you start EBP28 The sound values have been determined according to noise test code given in EN 15503, using the basic standards EN ISO 3744 and EN ISO 11201. Wear ear protection, especially when sound pressure is over 70 dB(A).
-
Page 17: Before You Start
Before you start EBP28 You will need (items not supplied) (items supplied) > Suitable personal protective > Multi-tool (20) equipment > Torx key (21) > Fuel funnel with filter > Screwdriver (22) > Suitable 2-stroke engine oil for air- > Fuel mixing bottle (23) cooled engines, high quality >... - Page 18 Before you start EBP28 Blower assembly 1. Select the flat nozzle (18) or round nozzle (19) for the desired application. NOTE: Flat nozzle (18) offers higher air speed for more demanding tasks and for heavier debris. Round nozzle (19) offers greater air volume for general blowing tasks in a larger area and for lightweight debris.
- Page 19 Before you start EBP28 3. Align the tabs on the other end of the S-shaped tube (17) with the slots on the blower outlet (1). Insert the S-shaped tube (17) into the blower outlet (1) all the way until it clicks into place (Fig. 2).
- Page 20 Before you start EBP28 Filling up fuel and oil WARNING! This machine is not supplied with petrol-oil mixture in the engine! Before operating this machine it is essential to fill it with petrol-oil mixture! This machine is equipped with a 2-stroke engine, the fuel and oil tank are combined and it is essential to fill a fuel-oil mixture before operating this machine.
- Page 21 Before you start EBP28 NOTE: Risk of machine damage! Never mix fuel and oil directly in the tank of the machine. Use an anti-oxidant added quality oil expressly labelled for air-cooled 2 stroke Use an anti-oxidant added quality oil expressly labelled for air-cooled 2 stroke engine use (JASO FC GRADE OIL or ISO EGC GRADE).
- Page 22 Before you start / Quick start EBP28 NOTE: Fuel and oil deteriorate over time. It may be difficult to start the engine if you use fuel which has been kept for more than 30 days. Towards the end of the season, it is advisable to put only as much fuel in the tank as you need for each use, since it should be completely used up before storing the machine.
-
Page 23: Quick Start
EBP28 Quick start Preparation Assemble Adjust Add fuel and oil mixture Starting <5 Set the choke to Press primer Pull recoil starter Set the choke to CLOSE position 6 times 6 times handle less than OPEN position 5 times Pull recoil starter... -
Page 24: Machine Functions
For safe use it is essential to read the entire instruction manual before first use! Intended use This petrol blower EBP28 is designated with an engine displacement of 27.6 cm The machine is intended for blowing light debris including leaves, grass and other garden refuse. -
Page 25: Operation
Operation EBP28 Operation Ignition switch Use the ignition switch (2) to start and stop the engine. > I position: The engine can start and run. O position: The engine stops. After pushing the ignition switch (2) to the O position, >... - Page 26 Operation EBP28 Starting the engine DANGER! Risk of fire! > Due to any spilled fuel, the machine can catch fire. > Wipe any spilled fuel up before starting. > Start the engine a few metres away from the place where you have filled it.
- Page 27 Operation EBP28 4. Pull the recoil starter handle (13) slowly with your left hand until you feel a definite resistance and then give it a brisk, strong pull. Repeat until the engine attempts to start but no more than 4 times.
- Page 28 Operation EBP28 Engine warm start 1. Set the choke (8) the OPEN position (Fig. 11). 2. Pull the recoil starter handle (13) slowly with your left hand until you feel a definite resistance and then give it a brisk, strong pull. Repeat until the engine starts.
- Page 29 Operation EBP28 3. Check if the fan stops rotating when you release the throttle trigger (4). Stopping the engine 1. Release the throttle trigger (4) and let the machine run in idle for a while. 2. Push the ignition switch (2) to O position until engine stops.
- Page 30 Operation EBP28 Using the throttle trigger > Squeeze the throttle trigger (4) to start the operation. The speed is controlled by how far the throttle trigger (4) is depressed (Fig. 13). NOTE: For continuous operation, turn the lock-on lever (3) upwards to hold the throttle trigger (4) down.
- Page 31 Operation / Care and maintenance EBP28 > Assemble the S-shaped tube (17) and the nozzle (18/ 19) properly to the blower outlet (1) as described in chapter “Blower assembly”. > Hold the nozzle (18/ 19) approximately 10 cm above the ground.
-
Page 32: Care And Maintenance
Care and maintenance EBP28 > Inspect the machine before each use for worn and damaged parts. Do not operate it if you find broken and worn parts. Replace worn parts as necessary or contact an authorised service centre for repair before using the machine again. - Page 33 Care and maintenance EBP28 Air filter Inspect the air filter regularly. Clean or replace it with a new one if necessary. 1. Loosen the fixing nut on the cover of the air filter case (9) to remove the cover (Fig. 15).
- Page 34 Care and maintenance EBP28 Spark plug NOTE: For good performance, the spark plug must be properly gapped and free of deposits. Inspect the spark plug every 25 hours or before long-term storage over 30 days. Clean or replace with a new one if necessary (type: NGK BPMR7A).
- Page 35 Care and maintenance EBP28 6. Check the spark plug gap. It should be 0.6-0.7 mm 0.6-0.7 mm (Fig. 18). Spark plug Ground 0.6-0.7 0.6-0.7 mm electrode 7. Replace with a new spark plug if either the electrode or the insulation is damaged.
- Page 36 Care and maintenance EBP28 1. Release the throttle trigger (4) and allow the engine to idle. 2. Turn the idle speed screw clockwise using the screwdriver (22) to increase engine speed if engine stalls or dies in idle mode (Fig. 19).
- Page 37 Care and maintenance EBP28 Spare parts/Replacement parts The following parts of this machine may be replaced by the consumer. Spare parts are available at an authorised dealer or through our customer service. Description Model no. or Specification Spark plug NGK BPMR7A (Gap of electrodes: 0.6-0.7 mm 0.6-0.7 mm) or...
- Page 38 Care and maintenance EBP28 Repair This machine does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified specialist to have it checked and repaired. Storage WARNING! Risk of injury! Make sure that unauthorized persons do not...
- Page 39 Care and maintenance EBP28 Long term storage NOTE: Risk of machine damage! > If you are not going to use the machine for a while, remove the fuel from the machine. This way, you will prevent a gumming-up of the engine and of the grease pump.
-
Page 40: Troubleshooting
Troubleshooting EBP28 Troubleshooting Suspected malfunctions are often due to causes that the operators can fix themselves. Therefore check the machine using this section. In most cases, the problem can be solved quickly. WARNING! Only perform the steps described in these instructions! All further... -
Page 41: Recycling And Disposal
Troubleshooting / Recycling and disposal EBP28 Problem Possible cause Solution Engine does Air filter is soiled? Clean the air filter. not reach Incorrect fuel or incorrect Stop the engine, empty tank, then fill the maximum mixture? up with the correct mixture of fuel to oil speed. -
Page 42: Guarantee
Guarantee EBP28 Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 3 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use. -
Page 43: Customer Care And Technical Helpline
Customer care and technical helpline EBP28 Customer care and technical helpline A better way to repair your tools Kingfisher takes special care in creating high-quality garden power tools that are designed to last. But if a fault develops with your garden power tool and you need to... -
Page 44: Availability Of Spare Parts
Availability of spare parts EBP28 Availability of spare parts Contact the customer service helpline for assistance or visit www.kingfisherspares.com For assistance contact the customer services helpline: UK: 0800 0789647 uk@Kingfisherservice.com EIRE: 1800 932226 eire@kingfisherservice.com Further information about this product can also be found at:... -
Page 45: Uk Declaration Of Conformity
UK declaration of conformity EBP28 (UK) DECLARATION OF CONFORMITY Product > Petrol Blower > EBP28 > 27.6 cm , 0.8 kW/ 8300 min > 000001 - 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited... -
Page 46: Eu Declaration Of Conformity
EU declaration of conformity EBP28 (EN) EU DECLARATION OF CONFORMITY (FR) DÉCLARATION UE DE CONFORMITÉ (PL) DEKLARACJA ZGODNOŚCI UE (RO) DECLARAȚIA DE CONFORMITATE UE (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE Machine/Produit/Produkt/Produsul/Machineo/Produto > Petrol Blower/ Petrol Blower/ Petrol Blower/ Petrol Blower/ Petrol Blower/ Petrol Blower Petrol Blower/ Petrol Blower/ Petrol Blower/ Petrol Blower/ Petrol Blower >... - Page 47 EU declaration of conformity EBP28 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: L’objet de la déclaration décrit ci-dessus est conforme à la législation d’harmonisation de l’Union applicable: Wymieniony powyżej przedmiot niniejszej deklaracji jest zgodny z odnośnymi wymaganiami unijnego prawodawstwa harmonizacyjnego: Obiectul declarației descris mai sus este în conformitate cu legislația relevantă...
- Page 48 EU declaration of conformity EBP28 Measured Sound Power Level/ Le niveau de puissance acoustique mesuré/ Zmierzony poziom mocy akustycznej/ Nivel de putere acustică măsurat/ Nivel de potencia sonora medido / Nível de potência sonora medido: 106.6 dB(A) Guaranteed Sound Power Level/ Le niveau de puissance acoustique garant/ Gwarantowany poziom mocy akustycznej/ Nivel de putere acustică...
- Page 49 Manufacturer, Fabricant, Prodecent, Producător, Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products...
